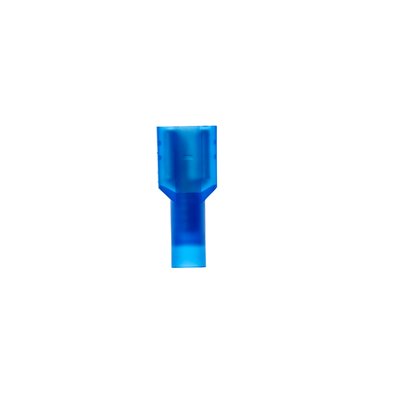

3M MNU14-250DFIX Female Disconnect

2260657 MFG #: MNU14-250DFIX
$84.03 / EA
Usually Ships within 5-8 Days
  • Barrel Type: Butted Seam
  • Conductor Size: 16 to 14
  • Dimensions: 0.87 in L x 0.37 in W
  • Finish: Tin Plated
  • Insulated: Fully Insulated
  • Specifications: 0.145 in Dia Max Insulation, 0.08 in ID Barrel, 0.23 in Dia
  • Temperature Rating (Degrees F): -40 to 221
  • Terminal Type: Crimp
  • Voltage Rating: 600/1000
  • Color: Blue
  • Material: Nylon

3M MNU14-250DFIX Female Disconnect

Scotchlok Female Disconnect Terminal, Fully Insulated, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 VAC, Specifications: 0.145 in Dia Max Insulation, 0.08 in ID Barrel, 0.23 in Dia, -40 to 221 deg F, Nylon, Blue, Tin Plated, 0.87 in L x 0.37 in W Dimensions, Insulated: Fully Insulated

Additional Description: 3M -MNU14-250DFIX MNU14-250DFIX DISCONNECT FEMALE NYLON IN 7000133350 100/bottle

Catalog Description: 3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

  • Specifications
  • Blue nylon-insulated, butted seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Free hanging (in-line) mounting
  • Mates with 1/4 in wide male tab
