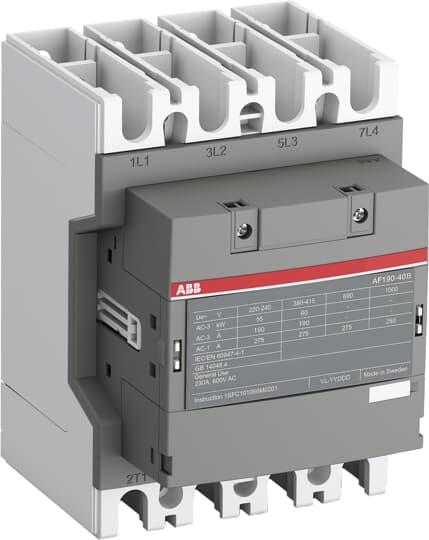

ABB AF190-40-00-13
Image Disclaimers Message
ABB AF190-40-00-13
ABB AF190-40-00-13
Part #:AF190-40-00-13
SKU #: 2400705
Key Features
Part #:AF190-40-00-13
SKU #: 2400705
Brand: ABB
Coil Power Rating: 55/90/110 kW
Coil Voltage: 100 to 250 VAC/VDC
Connection type: Flat
Contact Configuration: 4NO
Dimensions: 196 mm H x 140 mm W x 153 mm D
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 55 kW at 220 to 230 to 240 V, 90 kW at 380 to 400/415 V, 110 kW at 440 V
- 230 A at 600 V UL/CSA, 275 1-phase 1000 V IEC
ABB AF190-40-00-13
ABB IEC Contactor, 3-Phase AC/DC Operated, 100 to 250 VAC/VDC Coil, 230/275 A Maximum Load Current, 55/90/110 kW Coil, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, Flat Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 196 mm H x 140 mm W x 153 mm D Dimensions
Additional Description: ABB -AF190-40-00-13 CONTACTOR AF190 4P 100-250V
Catalog Description: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 48-130 V, 50/60 Hz and DC
