- Industry standard mounting plate provides easily accessible mounting holes
- Coil terminals are provided with 32 to 6 AWG screws and 1/4 in quick connect or dual 1/4 in quick connect terminals
- Exclusive hex, slotted, Phillips 32 to 10 AWG terminal screws for main terminals
- Coil is class B (130 deg C) insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from highly arc resistant polyester
- 2 hp at 120 V, 5 hp at 240 V 1-phase, 10 hp at 208/240 V, 15 hp at 480 V, 20 hp at 600 V 3-phase
- 75 to 80% at LRA, 40 to 50% at FRA
Specifications
Brand: ABB
Coil Power Rating: 5 hp, 20 hp
Coil Voltage: 120 VAC
Contact Configuration: 1NC-1NO
Contact type: 1 SPDT/2 SPDT
Dimensions: 3.25 in H x 2.37 in W x 2.91 in D
Enclosure Type: NEMA ICS 5
Frequency Rating: 50/60 Hz
Material: Polyester
Mounting type: Snap-in
Number of Auxiliary Contacts: 2
Number of Poles: 3
Operating Cycles: 30000 to 100000 Cycles
Operating Temperature: -40 to 150 deg F
Power factor: 40 to 50%, 75 to 80%

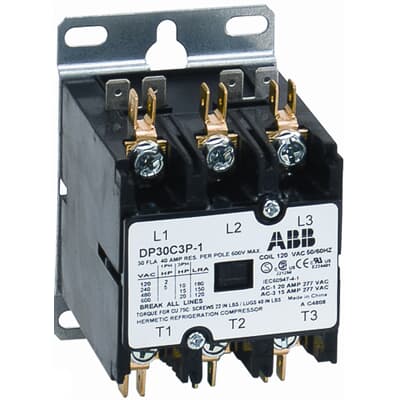

Size: DP30C3P
Terminal Type: Box Lug/Screw
Type: Non-Reversing Standard Arc Cover
UNSPSC: 39121529
UPC: 00888614086807
