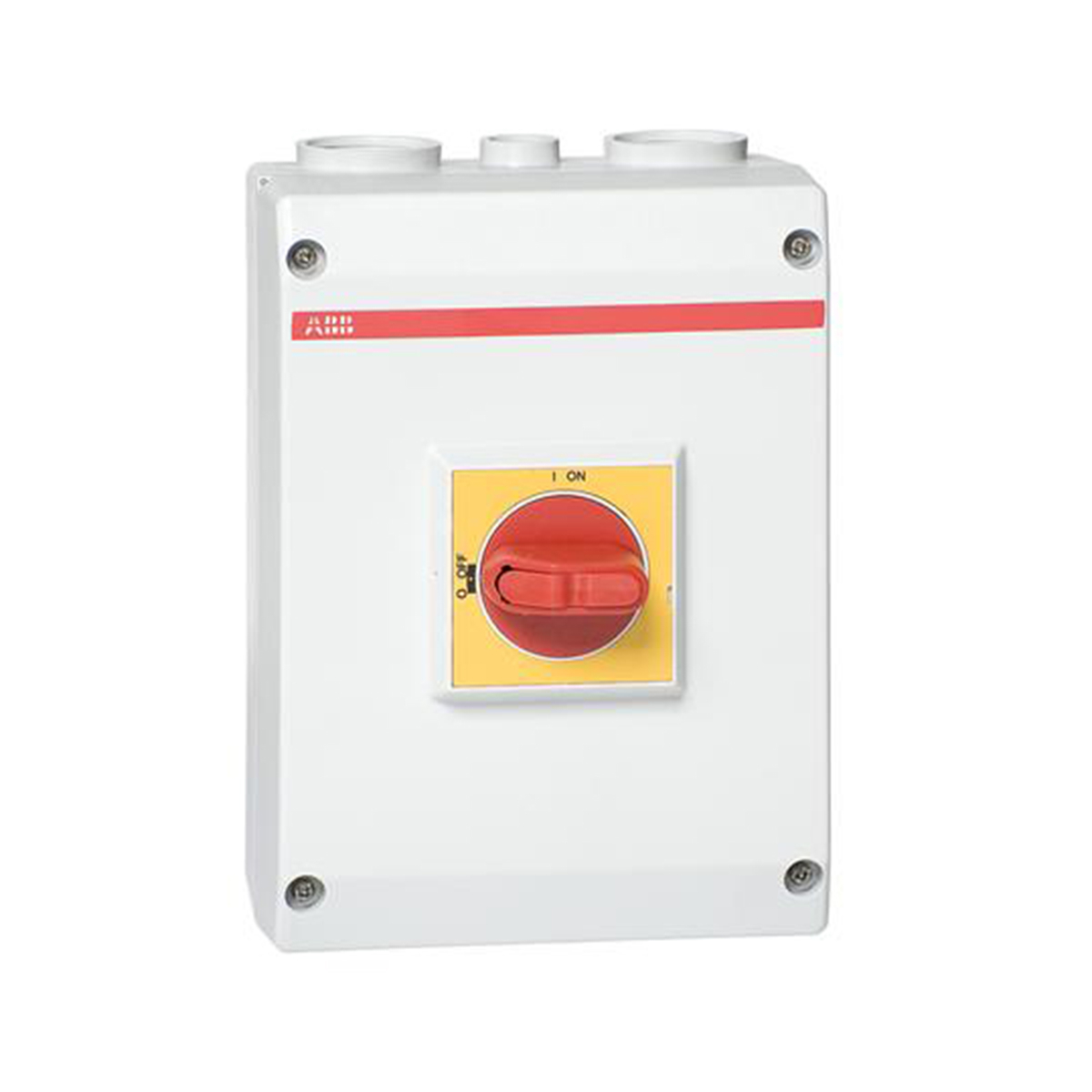

ABB EOT45U3P4-P Enclosed Disconnect Switch

2177969 MFG #: EOT45U3P4-P
$272.91 / EA
6 In Stock <strong>Ships Same Day</strong>
  • Actuator Type: Rotary Pistol Handle
  • Dimensions: 11.5 in H x 8.28 in W x 7.05 in D
  • Enclosure Type: NEMA 4/4X/12, NEMA 4X
  • Horsepower: 30
  • Number of Poles: 3
  • Series: EOT
  • Terminal Type: Lug
  • Type: Non-Fusible
  • Voltage Rating: 600
  • Color: Black Handle
  • Material: Plastic
  • Mounting type: Surface

ABB EOT45U3P4-P Enclosed Disconnect Switch

ABB Enclosed Disconnect Switch, Non-Fusible, Series: EOT, 600 VAC, 60 A, 30 hp, 3 Pole, Rotary Pistol Handle Actuator, NEMA 4/4X/12, Surface Mount, Lug Terminal, 11.5 in H x 8.28 in W x 7.05 in D, Plastic

Additional Description: ABB -EOT45U3P4-P (N) 60A NF NM 4/4X

Catalog Description: Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 30HP. General purpose current rating 60A. Plastic enclosure, NEMA Type 4/4X Watertight, Pistol handle. Interlocked cover. Defeatable interlocking.

QTY
  • Specifications
  • Extremely compact size
  • Suitable as motor disconnect
  • Horsepower rated
  • Fingerproof construction
  • No hazardous exposed parts
  • Touch safe construction
  • Positive operation
  • Clear position indication
  • Self lifting tunnel terminals
  • Plastic enclosure installs flush on mounting surface, reducing the accumulation of dirt behind the enclosure
  • Quick-make, quick-brake mechanism
