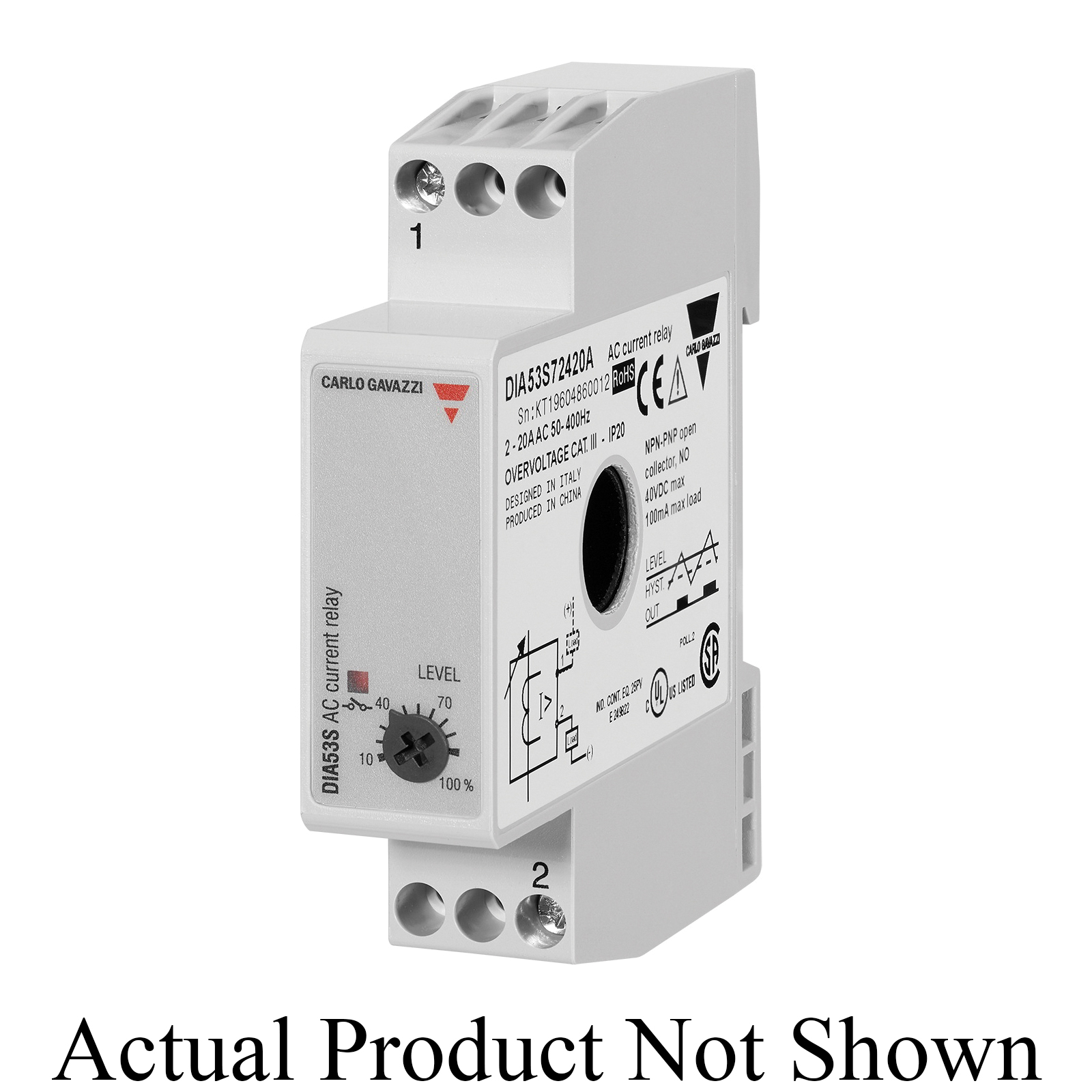

Carlo Gavazzi DIA53S72420AF Monitoring Relay
Part Number # DIA53S72420AF
SKU # 2270598
$483.60 / 5Each
Typical price:$530.00 / Each
Only 3 left in stock order soon
Est. delivery Jul 15 - Jul 19
Carlo Gavazzi DIA53S72420AF Key Features
Brand: Carlo Gavazzi
Part Number # DIA53S72420AF
SKU #2270598
Amperage Rating: 20 A
Contact Configuration: 1NO
Dimensions: 17.5 mm W x 67.2 mm D x 81 mm H
Display Type: LED
Enclosure Type: IP20
Frequency Rating: 45 to 400 Hz
Series: DIA53
Terminal Type: Screw
Voltage Rating: 40 VDC
Contact material: Noryl/Polyamide 66
Mounting type: DIN Rail
UNSPSC: 39122331
UPC: 08030956017373
$483.60 / 5Each
Typical price:$530.00 / Each
Carlo Gavazzi DIA53S72420AF Monitoring Relay
Carlo Gavazzi Monitoring Relay, Series: DIA53, 40 VDC, 20 A, 45 to 400 Hz Frequency, Noryl/Polyamide 66 Contact, 1NO Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, 17.5 mm W x 67.2 mm D x 81 mm H Dimensions
Additional Description: CAGA-DIA53S72420AF (N) AC CURRENT RELAY REV.5 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1-Phase Monitoring Relay, Over Current, NPN-PNP Open Collector Output Max 40 VDC, IP20, DIN-rail mounting, Measuring Range 2 to 20A AC, Reaction Time <50ms, 17.5x81x67.2mm housing
DIA53S72420AF Item Features
- 2-wire connection
- Self-powered
- Knob adjustable set point
- Output - normally open, 100 mA
- LED indication for output ON
- For mounting on DIN rail in accordance with DIN/EN 50 022
- REV.5
