DIB02CB23150MV

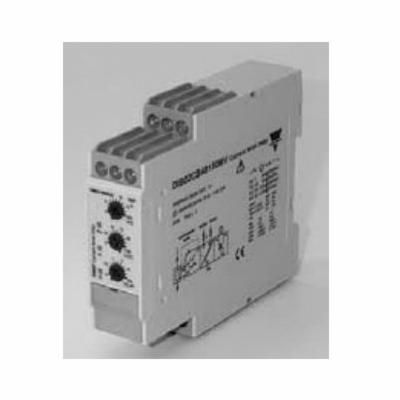

Carlo Gavazzi DIB02CB23150MV 1-Phase Monitoring Relay
Part Number # DIB02CB23150MV
SKU # 2270689
$773.70 / 5Each
Typical price:$905.00 / Each
Carlo Gavazzi DIB02CB23150MV Key Features
Brand: Carlo Gavazzi
Part Number # DIB02CB23150MV
SKU #2270689
Amperage Rating: 8, 8 A
Contact Configuration: SPDT
Display Type: LED
Enclosure Type: IP20
Response Time: <100, <100 ms
Series: DIB02
Terminal Type: Y1/Y2
Voltage Rating: 115/230, 115/230 VAC
Mounting type: DIN Rail
UNSPSC: 39122331
UPC: 08030956000283
$773.70 / 5Each
Typical price:$905.00 / Each
Carlo Gavazzi DIB02CB23150MV 1-Phase Monitoring Relay
Carlo Gavazzi 1-Phase Monitoring Relay, Series: DIB02, 115/230 VAC, 8 A, SPDT, DIN Rail Mount, Y1/Y2 Terminal, LED, <100 ms Response, IP20
Additional Description: CAGA-DIB02CB23150MV (N) 115-230 VOLT CURR RLY W/SHUNT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1-Phase True RMS Monitoring Relay, Over or Under Current, 1 SPDT Relay Output, IP20, DIN-rail mounting, Measuring Range External 1/3 Phase MI or MP Current Transformer 0,5 to 500A, Power Supply 115/230Vac, 22.5x83.5x99.5mm housing
DIB02CB23150MV Item Features
- TRMS AC/DC over or under current monitoring relays
- Current measuring through external shunt or CT
- Selection of measuring range by DIP-switches
- Measuring ranges from 6 to 150 mV AC/DC and 0.4 to 4 Vp AC (MI or MP range)
- Adjustable current on relative scale
- Adjustable hysteresis on relative scale
- Adjustable delay function (0.1 to 30 s)
- Programmable latching or inhibit at set level
- Output 8 A SPDT relay N.D. or N.E. selectable
- For mounting on DIN-rail in accordance with DIN/EN 50 022 (DIB02) or plug-in module (PIB02)
- 22.5 mm euronorm housing (DIB02) or 36 mm plug-in module (PIB02)
- LED indication for relay, alarm and power supply ON
- Galvanically separated power supply
- 1 KOhm internal resistance
- 250 VAC rated insulation voltage
- 30 x 10^6 operations mechanical life
- 10^5 operations electrical life
- 7200 operations/h operating frequency
- 2 kVAC (rms) dielectric voltage
- 4 kV rated impulse withstand voltage
