Specifications
Brand: Wago
Actuation type: Operating tool || Push-in
Application: General mains applications
Coding: A
Color: White
Conductor entry direction to mating direction: 0 °
Connection technology: Push-in CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper or copper alloy (surface-treated)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 75.9 mm / 2.988 inch
Height: 15 mm / 0.591 inch
Insulation material: Polyamide (PA66)
Marking: L ⏚ N
Nominal cross-section: 4 mm²
Potential marking: L ⏚ N
Protection type: IP20
Rated current: 25 A
Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
Strain relief: Strain relief housing
Stranded conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
Total number of connection points: 6
Weight: 19.993 g
Width: 34.6 mm / 1.362 inch
UNSPSC: 32151603
UPC: 04044918254120

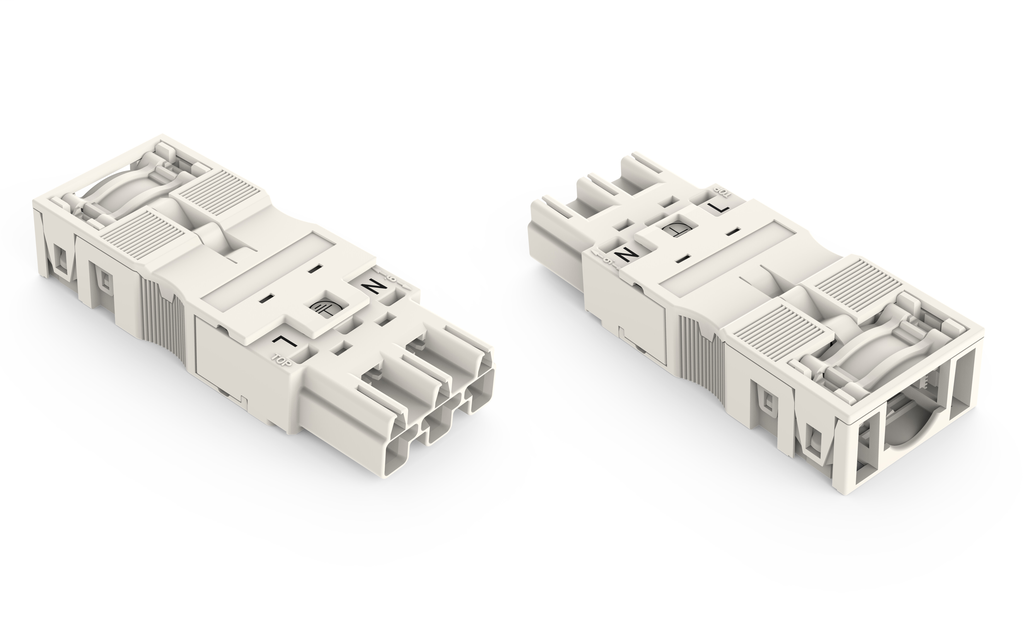

WAGO 770-133 Plug
Additional Description: WAGO-770-133 Plug wstrain relief housing 3Pl WHT 51110406
Catalog Description: Plug; with strain relief housing; 3-pole; 4,00 mm²; white
