Part Number # TM5PCRS2
SKU # 2209726
Image Disclaimers Message

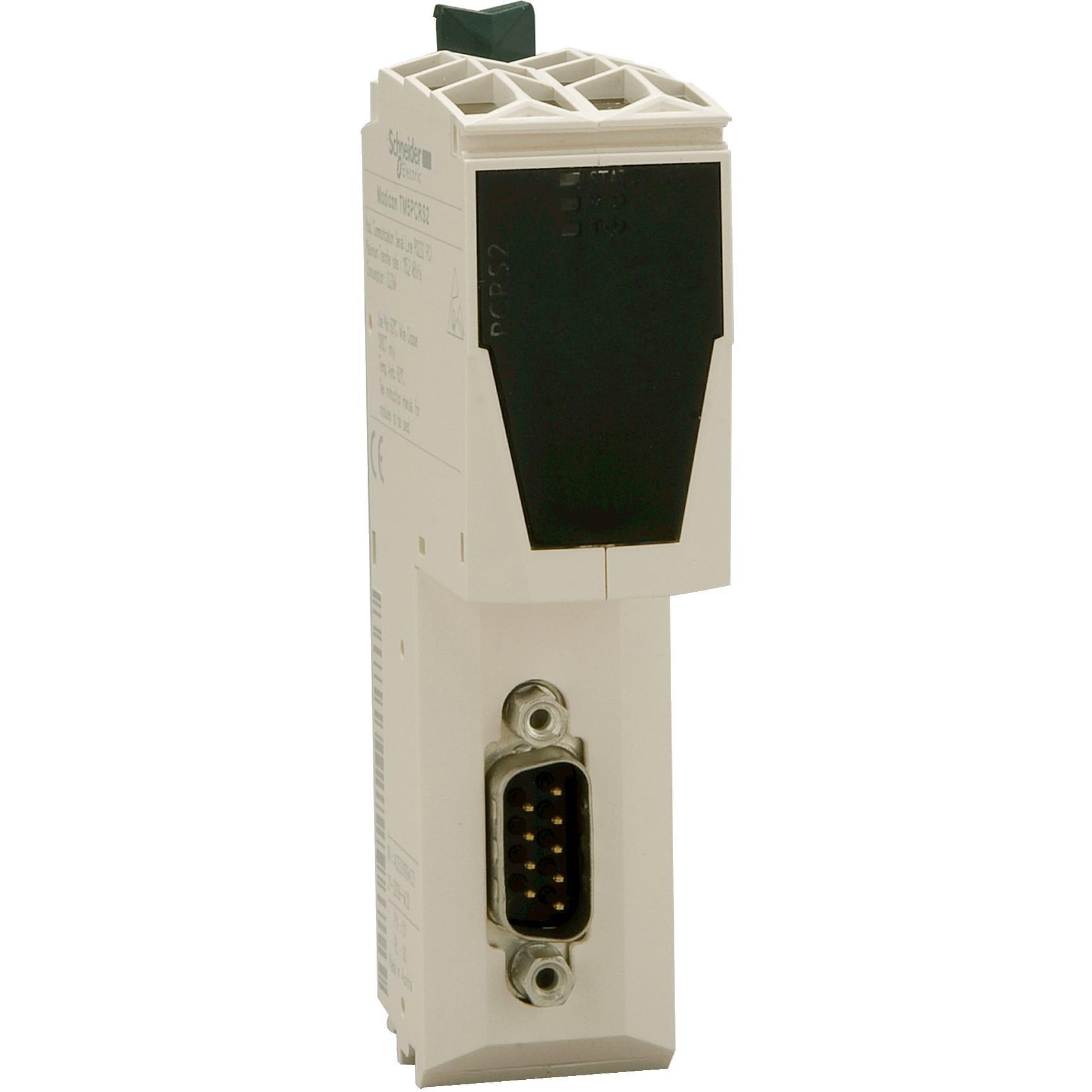

Schneider Electric TM5PCRS2 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | TM5PCRS2 |
| SKU #: | 2209726 |
| Communication Rate: | 115.2, 115.2 kbps |
| Power Dissipation: | <=0.33, <=0.33 W |
| Temperature Rating (Degrees F): | 0 to 55 deg C without Horizontal Installation, 0 to 60 deg C with derrating Factor Horizontal Installation, 0 to 50 deg C Vertical Installation |
| Type: | ASCII Serial Link |
| Country of origin: | AT |
| Power consumption: | 0.33, 0.33 W |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151703 |
| UPC: | 00785901684794 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Schneider Electric Modicon TM5 Communication Module, ASCII Serial Link, 0.33 W Power Consumption, <=0.33 W Power Dissipation, 115.2 kbps Communication Rate, 0 to 55 deg C without Horizontal Installation, 0 to 60 deg C with derrating Factor Horizontal Installation, 0 to 50 deg C Vertical Installation
TM5PCRS2 Application
Modicon TM5, LMC058 and M258 Motion Controller-Logic ControllerTM5PCRS2 Item Features
- Distributed I/Os via the CANopen interface module or local or remote expansion via the local TM5 expansion bus on Modicon M258 and Modicon LMC058 controllers (PLC and PAC)
- Wide range of I/O expansion modules - digital I/O, analog, expert, non-functioning dummy and remote I/O modules
- Embedded diagnostics for local and distant supervision
- Hot swapping of I/O modules
- This IP20 modular I/O system provides a flexible and scalable configuration of expansions or distributed I/O islands by direct connection with the Modicon controllers (TM5 bus) or via CANopen bus/sercos bus for Modicon and PacDrive 3 controllers as well
- Characterized by easy cabling and maintenance, the modular IO system offers a wide variety of modules that enable the user to exactly meet their desired configuration for reducing costs and simplification
- The fully integrated safe communication over sercos for PacDrive 3 based configurations provides a complete safety solution with programmable safe logic controller and distributed I/Os
- Less cabling/installation efforts, better diagnostics and reduced machine down time with use of safe drives during maintenance operations are some of the main benefits
- Male SUB-D 9 Modbus ASCII RS232
TM5PCRS2 Standards
RoHS Compliant|REACH Compliant|CSA C22.2 No. 142|CSA C22.2 No. 213|IEC 61131-2|UL 508|CSA Certified|cULus Listed|C-Tick.1 Certified|GoST-R Certified|CE Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2209726Part Number #TM5PCRS2UNSPSC32151703UPC00785901684794
