Part Number # LMC106CAA10000
SKU # 2428466

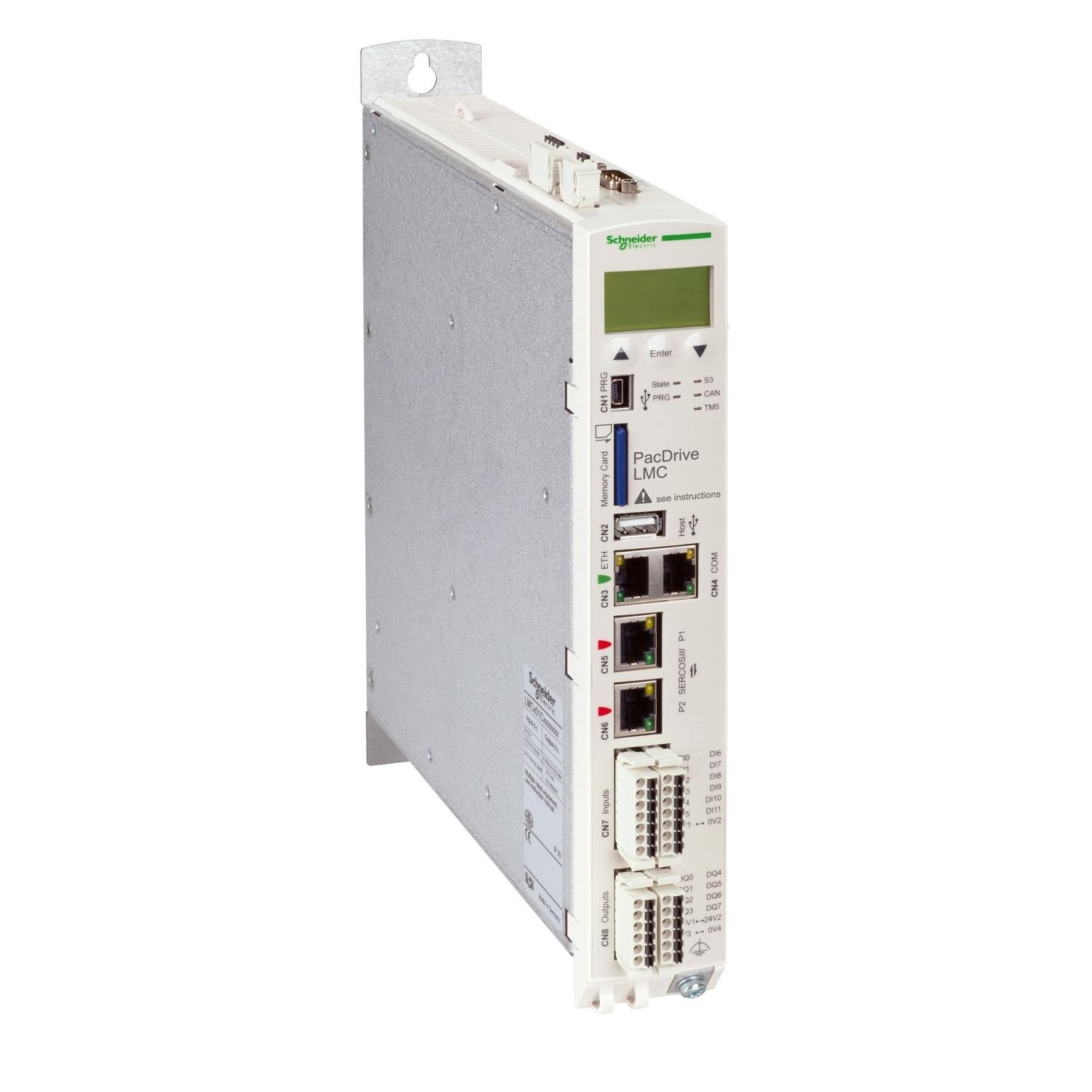

Image provided may only be a representation of
final product and may include optional equipment
LMC106CAA10000
Schneider Electric LMC106CAA10000
Part Number # LMC106CAA10000
SKU # 2428466
$4455.42 / Each
Typical price:$5209.41 / Each
Schneider Electric LMC106CAA10000 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LMC106CAA10000 |
| SKU #: | 2428466 |
| Amperage Rating: | 4 mA |
| Dimensions: | 44 mm W x 222 mm D x 270 mm H |
| Series: | LCM Eco |
| Temperature Rating (Degrees F): | 5 to 55 deg C |
| Type: | 6 Servo Axis |
| Country of origin: | US |
| Number of inputs: | 8 |
| Number of outputs: | 8 |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121021 |
| UPC: | 03606485400310 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4455.42 / Each
Typical price:$5209.41 / Each
Quantity:
- Schneider Electric Square D PacDrive 3 Logic Motion Controller, 6 Servo Axis, Series: LCM Eco, 24 V DC, 4 mA, 30 W Power, 8 Inputs, 8 Outputs, 5 to 55 deg C, 44 mm W x 222 mm D x 270 mm H Dimensions
LMC106CAA10000 Application
For automating machines/linesLMC106CAA10000 Includes
Accessory KitLMC106CAA10000 Item Features
- PLC, motion/robotics and IT functionality, no additional and/or proprietary hardware required for the complete machine
- Scalable controller performance from 0 to 130 servo drives/robot axes
- 4096 dynamic electronic cam disks can be operated in parallel
- 1 ms network update rate for 130 servo axes
- Integrated high speed I/O - externally expandable
- Fully Ethernet based communication with sercos for I/O, motion (robotics) and safe communication
- Realtime controller to controller communication on line level via sercos in parallel to sercos communication on field level
- Network with up to 20 controllers/machines possible
- Supporting other RT Ethernet solutions, standard IEC field busses and as well TCP/IP communication
- Supports international protocol standards for vertical integration, remote maintenance and web services, one engineering software for the complete machine life cycle
- One CoDeSys based programming tool - EcoStruxure machine expert
- One machine program compliant to IEC 61131-3 for controlling the complete machine
- EcoStruxure machine expert tools for supporting the whole engineering process with PacDrive controllers, including commissioning, diagnostics and maintenance
- Energy efficiency approaches
- Libraries for implementing the guidelines of PackML and weihenstephan standard
LMC106CAA10000 Standards
cULus Listed|CE Certified|CSA C22.2 File No. 142|CSA C22.2 File No. 14|EAC|EN/IEC 61131-2|FDA Approved|Green Premium Listed|IEC 61131-3|PLCopen Compliant|REACH Compliant|UL 508|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govLMC106CAA10000 Warranty
18 monthsSKU #2428466Part Number #LMC106CAA10000UNSPSC39121021UPC03606485400310
