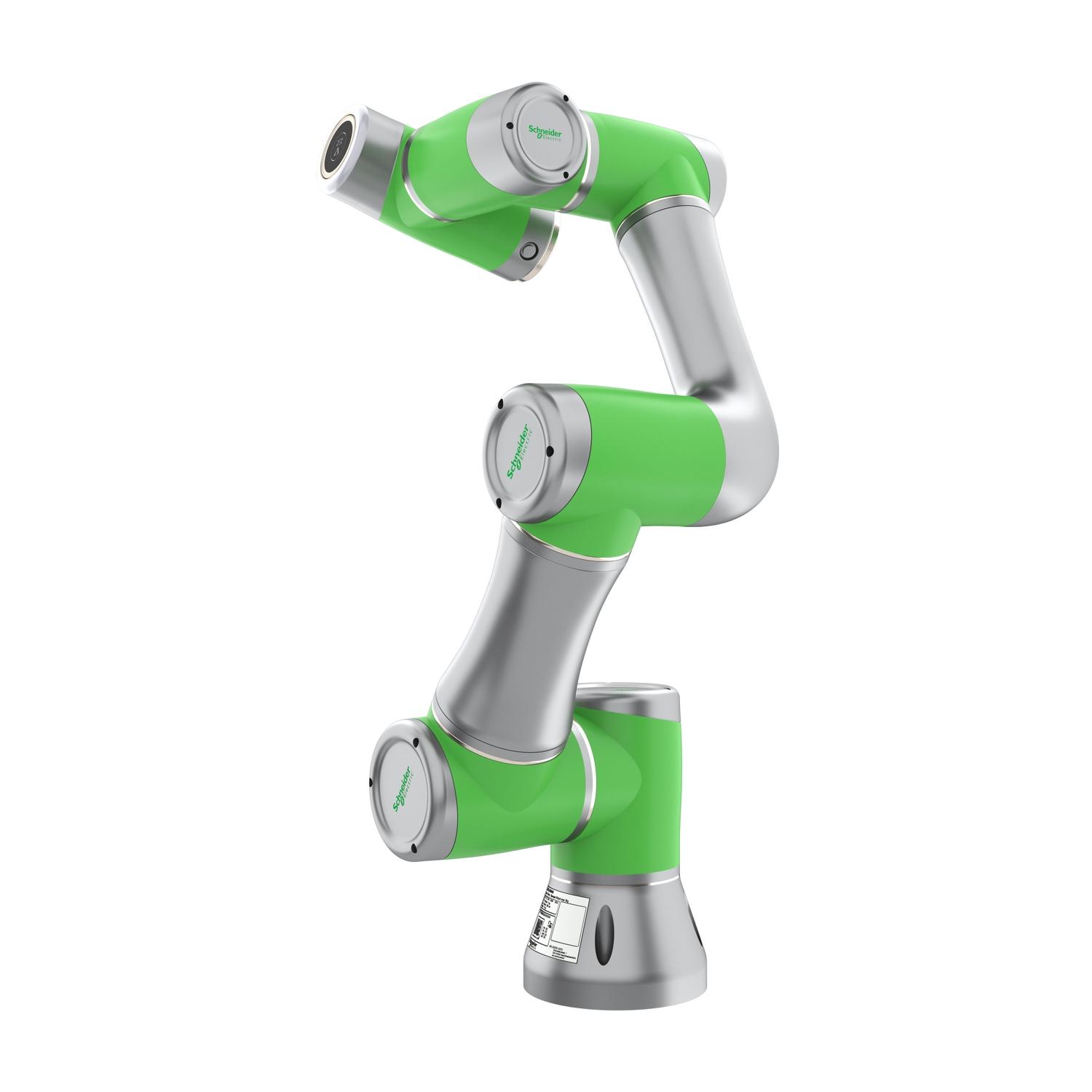

Schneider Electric LXMRL03S0000
Part Number # LXMRL03S0000
SKU # 2440536
$20843.20 / Each
Schneider Electric LXMRL03S0000 Key Features
Brand: Schneider Electric
Part Number # LXMRL03S0000
SKU #2440536
Dimensions: 5.08 in Dia
Load Capacity: 3 kg
Maximum Speed: 180 deg/s Joint 1 at +/- 360 deg, 180 deg/s Joint 2 at -85 to 265 deg, 180 deg/s Joint 3 at +/- 175 deg, 220 deg/s Joint 4 at -85 to 265 deg, 220 deg/s Joint 5 at +/- 360 deg, 220 deg/s Joint 6 at +/- 360 deg
Voltage Rating: 24 VAC
Material: Aluminium
Manufacturer Name: Schneider Electric
UNSPSC: 39121021
UPC: 03606485859477
$20843.20 / Each
Schneider Electric LXMRL03S0000
Brand: Schneider Electric
Part Number: LXMRL03S0000
Additional Description: SQD -LXMRL03S0000 LEXIUM COBOT - STANDARD ROBOT MAX 3KG
Catalog Description: collaborative robot, Lexium Cobot, maximum payload 3kg
LXMRL03S0000 Item Features
- Environmental performance of the product
LXMRL03S0000 Standards
Reach Regulation|RoHS Compliant|GB 11291.1:2011|EN/ISO 10218 1:2011|EN 60204 1:2018|EN/ISO 12100:2010|EN/ISO 13849 1:2015|EN 61000 6 2:2005|EN 61000 6 4:2007+A1:2011|ISO 13849 1:2015|ISO 13849 2:2012|ISO 14644 1|ISO 9001:2015|UL 1740|ANSI/RIA R15.06|CAN/CSA Z434|NFPA 79|CAN/CSA C22.2 No. 24SKU #2440536Part Number #LXMRL03S0000UNSPSC39121021UPC03606485859477
