Part Number # DPER340
SKU # 2452083
Image Disclaimers Message
DPER340

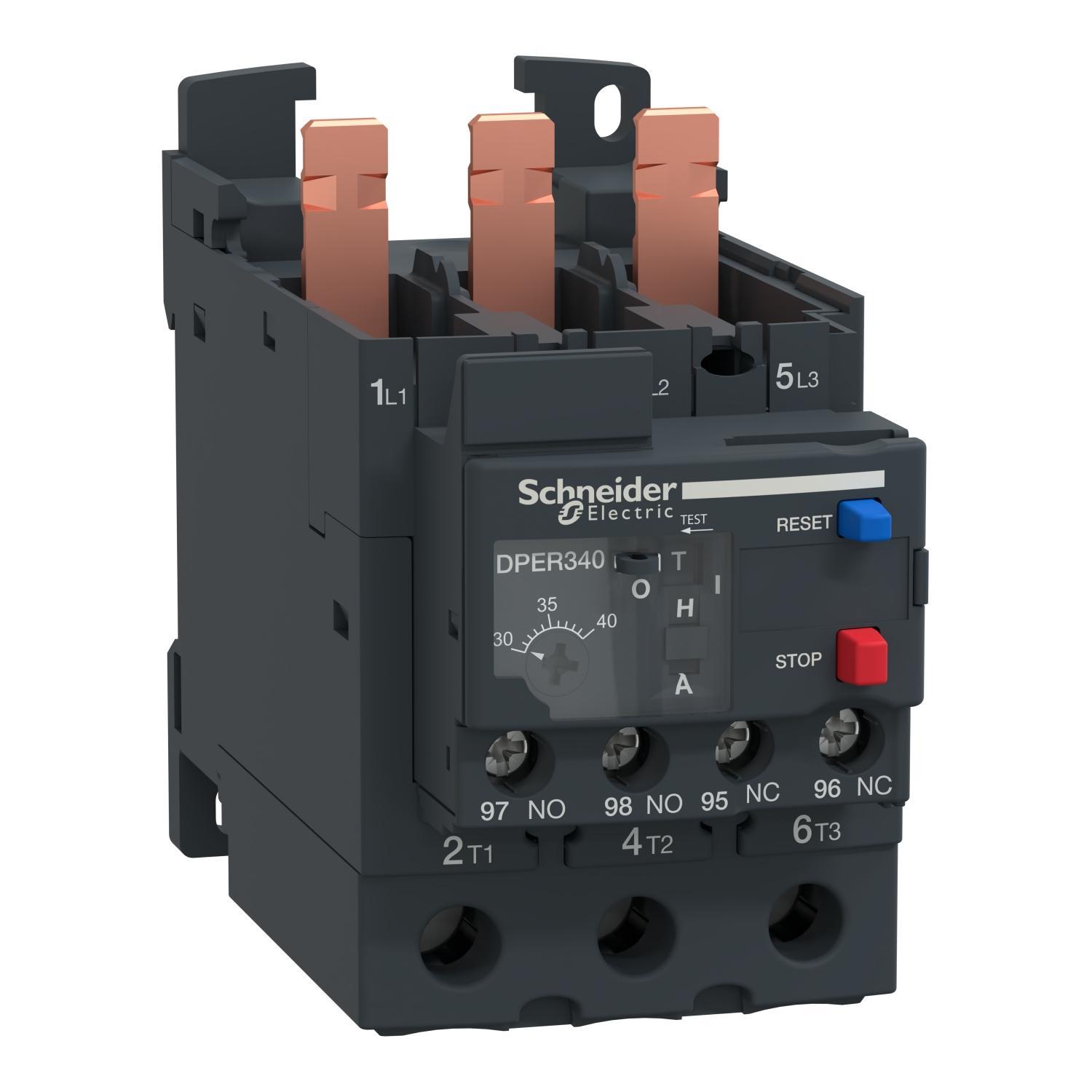

Schneider Electric DPER340 DPER Differential Thermal Overload Relay, 30 to 40 A, 1NO-1NC Contact, 690 V Coil
Part Number # DPER340
SKU # 2452083
$65.10
DPER340 Key Features
Part Number # DPER340
SKU #2452083
Amperage Rating: 30 to 40 A
Coil Voltage: 690 V
Contact Form: 1NO-1NC, 1NO-1NC 1 Form A/1 Form B
Contact Rating: 40 A at 690 V
Dimensions: 2.76 in H x 2.17 in W x 4.84 in D
Enclosure Type: IP20
Frequency Rating: 0 to 400 Hz
Number of Poles: 3
Series: DPER
Temperature Rating (Degrees F): -4 to 140 deg F
Terminal Type: Screw Clamp
Type: Differential
Country of origin: FR
Mounting type: DIN Rail/Plate
Manufacturer Name: Schneider Electric
UNSPSC: 39122330
UPC: 3606482465435
$65.10
- Schneider Electric, DPER340, Thermal Overload Relay, Differential, Series: DPER, 30 to 40 A, 0 to 400 Hz Frequency, 690 V Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 40 A at 690 V Contact, 3 Pole, DIN Rail/Plate Mounting, Screw Clamp Terminal, IP20 Enclosure, -4 to 140 deg F, 2.76 in H x 2.17 in W x 4.84 in D Dimensions
DPER340 Item Features
- Simple to select and install at an optimized budget
- Reduced installation time
- Robust performance for common applications
DPER340 Standards
EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|UL 60947-5-1|CSA C22.2 No 60947-4-1|CSA C22.2 No 60947-5-1|EN 50495|cUL|Green Premium Compliant (RoHs/Reach)SKU #2452083Part Number #DPER340UNSPSC39122330UPC3606482465435
