Part Number # CR306B102
SKU # 2456827
ABB CR306B102 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CR306B102 |
| SKU #: | 2456827 |
| Coil Voltage: | 115 to 120 V AC |
| Dimensions: | 12-1/2 in L x 7 in W x 6-5/8 in H |
| Operating Temperature: | -20 to 70 deg C |
| Overload Relay: | 3-Leg Block/Thermal |
| Series: | 300 Line |
| Type: | Full Voltage Non-Combination Non-Reversing |
| Connection type: | Saddle Clamp |
| UNSPSC: | 39121521 |
| UPC: | 00783166354049 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB CR306B102
Brand: ABB
Part Number: CR306B102
Additional Description: ABB -CR306B102 (S) (N) STARTER NON-CANCELABLE, NON-RETURNABLE
CR306B102 Application
Motor Control Centers, Electrical Distribution and Control ApplicationsCR306B102 Includes
Holding Interlock, Pressure Terminals and Overload RelayCR306B102 Item Features
- Has an encapsulated coil and a 3 leg overload relay to protect against overloads in all phases
- Toolless contactor disassembly allows quick access for inspection and maintenance
- Current carrying contact tips are weld resistant silver cadmium oxide
- Visual trip indicator with manual reset to avoid surprise restarts
- Manual weld check provides a convenient test against welding of overload relay contacts
- 2:1 adjustable full load amps with tactile feedback dial
- Built-in thermal memory to prevent hot motor restarts
- Protection against complete phase current loss
- +/- 2% accuracy, +/- 2% repeatability, Self-powered at 50% of minimum current range
- Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
CR306B102 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA CertifiedSKU #2456827Part Number #CR306B102UNSPSC39121521UPC00783166354049

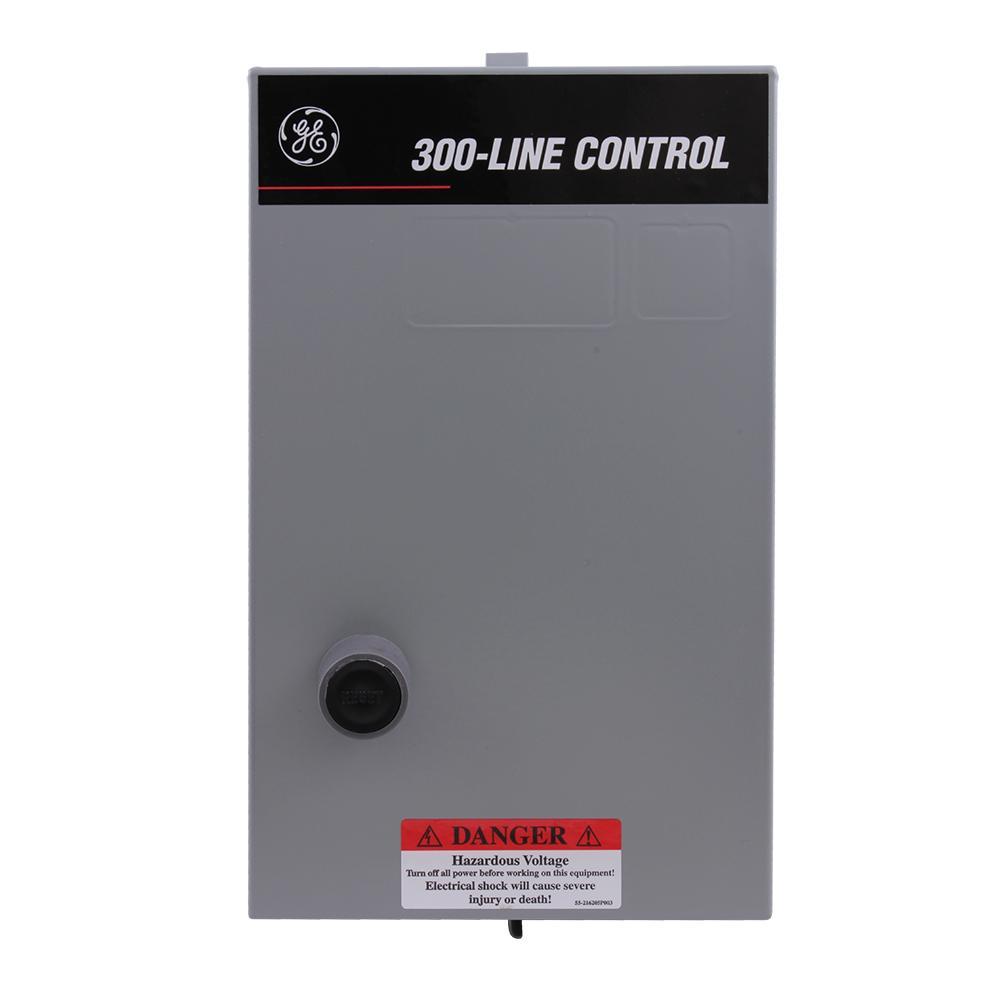

Image provided may only be a representation of final product and may include optional equipment
