LC2D40G7

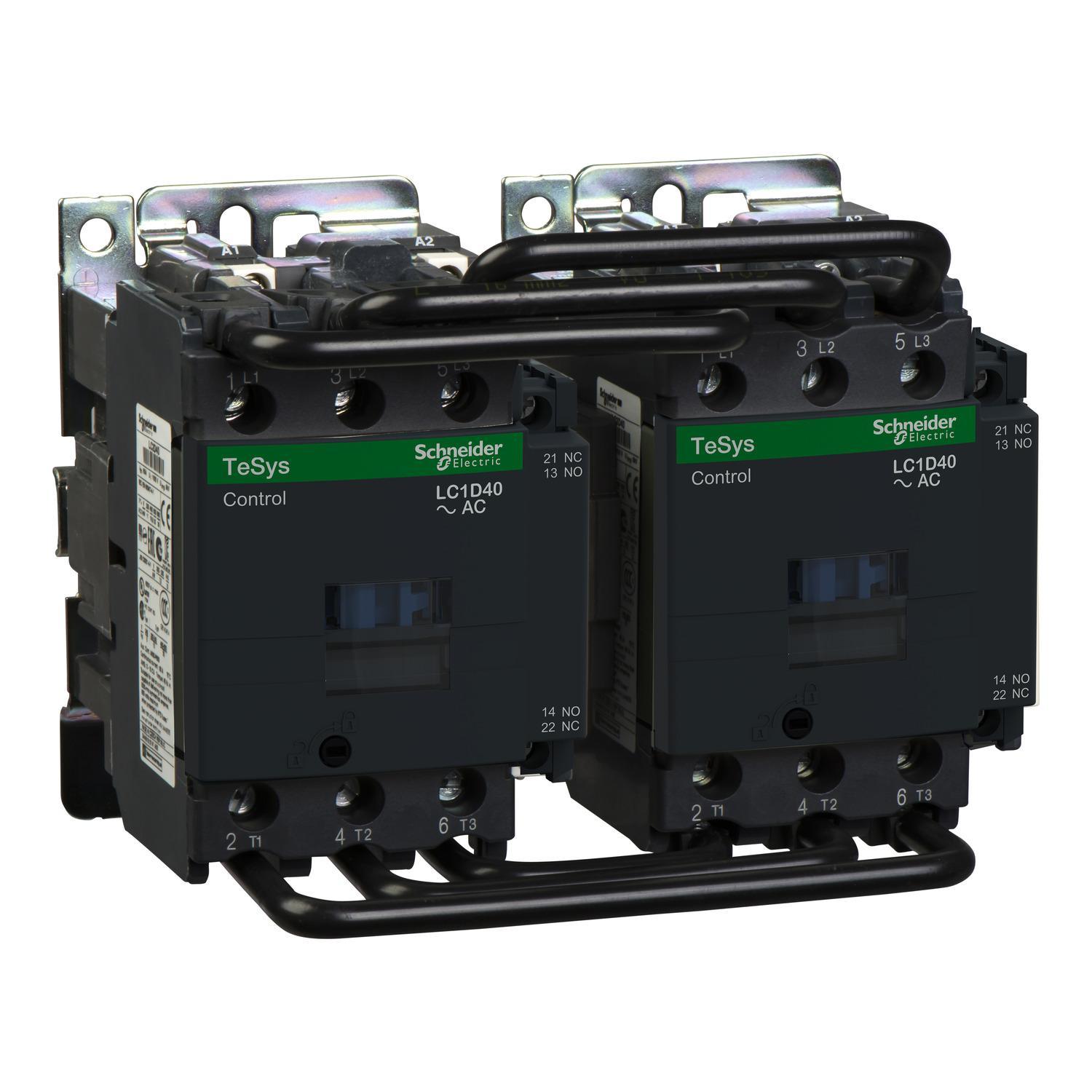

SCHNEIDER ELECTRIC LC2D40G7
Part Number # LC2D40G7
SKU # 643359
$913.20 / ea
Schneider Electric LC2D40G7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D40G7 |
| SKU #: | 643359 |
| Coil Power Rating: | 20/22/26 VA |
| Coil Voltage: | 120/1000 V AC, 120/1000 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 165 mm W x 142 mm D x 132 mm H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1 NO-1 NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -4 to 70 deg C |
| Series: | LC2D |
| Terminal Type: | Screw Clamp |
| Type: | Standard |
| Wattage: | 2.4 W |
| Country of origin: | CZ |
| Mounting type: | Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901455257 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$913.20 / ea
Quantity:
- Schneider Electric TeSys D IEC Contactor, Standard, Series: LC2D, 120/1000 V AC Coil, 40/60 A Maximum Load Current, 20/22/26 VA Coil, 3 Pole, 50/60 Hz Frequency, 2.4 W Wattage, Reversing Contact, 3NO Contact Configuration, 1 NO-1 NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -4 to 70 deg C Operating, Rail/Surface Mounting, 165 mm W x 142 mm D x 132 mm H Dimensions
LC2D40G7 Specifications
- AC, DC, low consumption DC control circuit
- TeSys™ D contactors have been designed for perfect integration in control systems
- They can be used to create motor starters for any type of application
- Without built-in bi-directional peak limiting diode suppressor
LC2D40G7 Application
Industry, Infrastructure, Building, Mechanical and Motor Control ApplicationLC2D40G7 Item Features
- AC, DC, low consumption DC control circuit
- TeSys D contactors have been designed for perfect integration in control systems
- They can be used to create motor starters for any type of application
- Without built-in bi-directional peak limiting diode suppressor
- https://www.youtube.com/watch?v=vlEODblcQoo&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
LC2D40G7 Standards
Bureau Veritas Approved|CE Marked|CCC Certified|CSA C22.2 File No. 14|CSA File No. LR43364 3211 04|DNV Certified|ECCN: EAR99|EN 60947-4-1/60947-5-1|Green Premium|GOST-R Certified|GL Approved|IEC 60947-4-1/60947-5-1/60529/60695-2|Lloyds Register|RINA Certified|RoHS Compliant|REACH Compliant|UL 508|UL File No. E164862|UL 94 V-1 Flammabilty Rating|WEEE Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #643359Part Number #LC2D40G7UNSPSC39121529UPC00785901455257
