Square D LC2D80G7 Key Features
Brand: Square D
Part Number # LC2D80G7
SKU #643932
Coil Power Rating: 26, 60, 60 hp
Coil Voltage: 120, 120 VAC, 120/1000 VAC, 300 VDC
Contact Configuration: 3NO
Contact Rating: 80 A at 575 VAC
Dimensions: 182 mm W x 158 mm D x 127 mm H, 5 in H x 7.17 in W x 6.22 in D, 7.17 in W x 6.22 in D x 5 in H
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz, 60
Number of Auxiliary Contacts: 1NO-1NC
Number of Poles: 3
Operating Cycles: 3600, 4000000, 4000000 Cycles
Operating Temperature: -4 to 140, -4 to 140 deg F, -5 to 60/-40 to 70
Series: LC1D, LC2D
Size: 127/158/182
Terminal Type: Screw Clamp
Type: D-Line Mechanical, LC1D D-Line, Reversing
Wattage: 12.5/5.1, 12.5/5.1 W
Connection type: Screw Clamp
Contact type: Reversing
Mounting type: Plate/Rail, Rail/Surface, Surface
UNSPSC: 39121529
UPC: 00785901457190

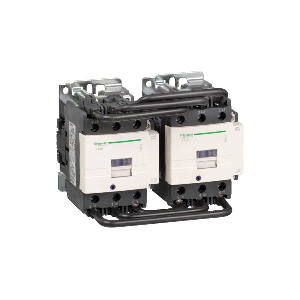

Square D LC2D80G7
Brand: Square D
Part Number: LC2D80G7
Additional Description: SQD -LC2D80G7 (S) REVERSING CONTACTOR IEC +OPTIONS
LC2D80G7 Item Features
- Preassembled with reversing power busbar
- 6 kV conforming to IEC 60947 rated impulse withstand voltage
- III overvoltage category
- 125 A at <=140 deg F (60 deg C) power circuit/10 A at <=140 deg F (60 deg C) signaling circuit conventional free air thermal current
- 1100 A at 440 V power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5-1/250 A DC signaling circuit conforming to IEC 60947-5-1 irms rated making capacity
- 1100 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity
- 160 A gG at <=690 V coordination type 2 power circuit/200 A gG at <=690 V coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating
- At 50 Hz - Ith 60 A for power circuit average impedance
- Mechanical interlock
- 6 to 20 ms opening/20 to 35 ms closing operating time
- 3600 cycles/hr at <=140 deg F (60 deg C) operating rate
- Without built-in suppressor module coil technology
- 245 VA at 68 deg F (20 deg C) 50/60 Hz inrush power
- 26 VA at 68 deg F (20 deg C) 60 Hz/26 VA at 68 deg F (20 deg C) 50 Hz hold-in power consumption
- 6 to 10 W heat dissipation
- 25 to 400 Hz signaling circuit frequency
- 5 mA signaling circuit minimum switching current
- 17 V signaling circuit minimum switching voltage, TH protective treatment
- 1.5 ms on de-energisation (between NC and NO contacts)/1.5 ms on energisation (between NC and NO contacts) non-overlap time, >10 MOhm signaling circuit insulation resistance
- -40 to 158 deg F permissible ambient air temperature around the device, -76 to 176 deg F storage temperature
