1SVR730794R1300
ABB 1SVR730794R1300 Power Monitoring Relay
Part Number # 1SVR730794R1300
SKU # 2290507
ABB 1SVR730794R1300 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730794R1300 |
| SKU #: | 2290507 |
| Amperage Rating: | 2 to 4 A |
| Coil Current: | 4 A at 230 VAC |
| Coil Voltage: | 160 to 300, 160 to 300 V AC, 160 to 300 VAC |
| Contact Configuration: | 2CO DPDT, 2CO-DPDT, 2CO/DPDT |
| Dimensions: | 85.6 mm H x 22.5 mm W x 103.7 mm D |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50, IP50/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Response Time: | 0/0.1 to 30 s Tripping/200 ms Startup Delay |
| Series: | CM-S |
| Terminal Type: | Screw |
| Type: | Universal 3-Phase Multi-Function |
| Contact material: | AgNi |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122332 |
| UPC: | 04016779851831 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR730794R1300 Power Monitoring Relay
Brand: ABB
Part Number: 1SVR730794R1300
ABB Power Monitoring Relay, Universal 3-Phase Multi-Function, Series: CM-S, 50/60 Hz Frequency, 160 to 300 VAC Coil, 4 A at 230 VAC Coil, AgNi Contact, 2CO/DPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, IP20/IP50 Enclosure, 85.6 mm H x 22.5 mm W x 103.7 mm D Dimensions
Additional Description: ABB -1SVR730794R1300 CM-PVS.31S THREE-PHASE MON.
Catalog Description: Over and undervoltage monitor for 3 phase mains from 160 to 300 VAC, with DPDT relay output and 0.1 to 30 sec. time delay
1SVR730794R1300 Application
For 3-phase applications where over and undervoltage are monitored1SVR730794R1300 Item Features
- Phase sequence monitoring
- Suitable for railway applications
- Over and under voltage monitoring
- Dual frequency measuring 50/60 Hz
- 4 A at 230 VAC rated operational current AC-12
- Powered by the measuring circuit
- Adjustable phase unbalance threshold value
- Wide range operating voltage guarantees world wide operation
- Adjustable On/Off delay time
- LED for the indication of operational states
- Phase failure detection
1SVR730794R1300 Standards
BAA Compliant|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|RoHS Compliant|RoHS 2011/65/EU|CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 60255-27, 61000-6-2, 61000-6-3|UL 508|CCC Certified|cULus 508 20120829-E140448|CE Certified|EAC Certified|RMRS ApprovedSKU #2290507Part Number #1SVR730794R1300UNSPSC39122332UPC04016779851831

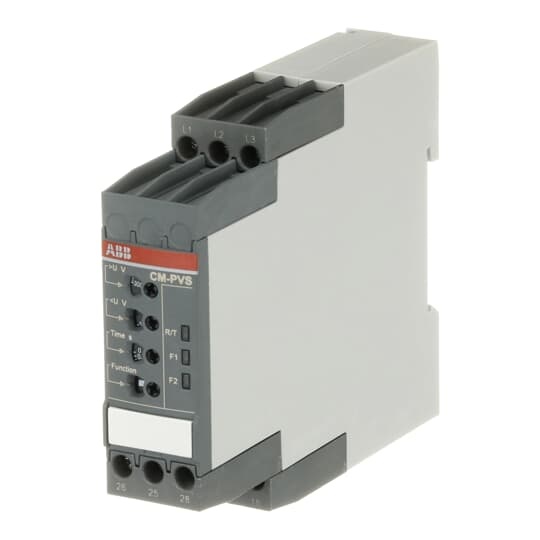

Image provided may only be a representation of final product and may include optional equipment
