Part Number # AF09-30-10K-11
SKU # 2386411
AF09-30-10K-11
ABB AF09-30-10K-11 AF Auxiliary Block Contactor, 24 to 60 VAC/VDC V Coil, 3NO Contact, 3 Poles
Part Number # AF09-30-10K-11
SKU # 2386411
ABB AF09-30-10K-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09-30-10K-11 |
| SKU #: | 2386411 |
| Coil Voltage: | 24 to 60 V AC/DC, 24 to 60 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 92.3 mm H x 45 mm W x 77 mm D |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AF |
| Type: | Auxiliary Block |
| Connection type: | Push-In Spring |
| Country of origin: | FR |
| Mounting type: | Contactor |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523154018 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF09-30-10K-11 AF Auxiliary Block Contactor, 24 to 60 VAC/VDC V Coil, 3NO Contact, 3 Poles
Brand: ABB
Part Number: AF09-30-10K-11
Additional Description: ABB -AF09-30-10K-11 AF09K,3P,1NO0NC,24-60VAC,20-60VDC
Catalog Description: AF09..K 3-pole contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. AF09..K include Push-in Spring terminals. Only one push is all you need for extremely fast wiring: faster than ever installation, easier than ever wiring, reliable as ever connections. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add
AF09-30-10K-11 Application
used for controlling power circuits up to 690 V AC and 220 V DCAF09-30-10K-11 Includes
Push-in Spring terminalsAF09-30-10K-11 Standards
IEC 60947-5-1|IEC 60947-4-1|PROP65SKU #2386411Part Number #AF09-30-10K-11UNSPSC39121529UPC03471523154018

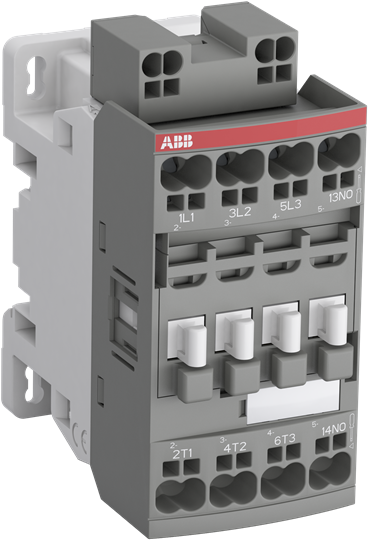

Image provided may only be a representation of final product and may include optional equipment
