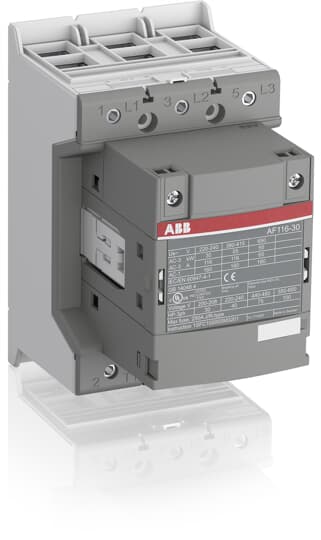

ABB AF116-30-00-11 Line Contactor
Part Number # AF116-30-00-11
SKU # 2414483
$387.78 / Each
ABB AF116-30-00-11 Key Features
Brand: ABB
Part Number # AF116-30-00-11
SKU #2414483
Coil Power Rating: 30 hp, 40 hp, 75 hp, 100 hp
Coil Voltage: 24 to 60 VAC, 20 to 60 VDC
Contact Configuration: 3NO
Contact Rating: 160 A at 690 V
Dimensions: 90 mm W x 126 mm D x 150 mm H
Enclosure Type: IP00/IP20
Frequency Rating: 50/60 Hz
Number of Poles: 3
Operating Cycles: 5000000 Cycles
Operating Temperature: -40 to 70 deg C
Series: AF Series
Size: AF116
Terminal Type: Box Lug
Type: Non-Reversing
Wattage: 30/55/75 kW
Country of origin: SE
Manufacturer Name: ABB
UNSPSC: 39121529
UPC: 07320500476888
$387.78 / Each
- ABB Line Contactor, Non-Reversing, Series: AF Series, 24 to 60 VAC, 20 to 60 VDC Coil, 160 A Maximum Load Current, 30 hp, 40 hp, 75 hp, 100 hp Coil, 3 Pole, 50/60 Hz Frequency, 30/55/75 kW Wattage, 3NO Contact Configuration, 160 A at 690 V Contact, AF116 Size, Box Lug Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 90 mm W x 126 mm D x 150 mm H Dimensions
AF116-30-00-11 Application
For applications such as motor starting, isolation, by-pass and distribution application up to max 690 VAF116-30-00-11 Item Features
- No auxiliary contacts
- For connection with built-in cable clamps
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 160 A at 690 V, 145 A at 690 V, 130 A at 690 V rated operational current AC-1
- 116 A at 220/230/240 V, 116 A at 380/400 V, 116 A at 415 V, 116 A at 440 V, 110 A at 500 V, 65 A at 690 V rated operational current AC-3
- 30 hp at 200 VAC 3 ph, 30 hp at 208 VAC 3 ph, 40 hp at 220 to 240 VAC 3 ph, 75 hp at 440 to 480 VAC 3 ph, 100 hp at 550 to 600 VAC 3 ph
- 30 kW at 220/230/240 V, 55 kW at 380/400 V, 55 kW at 415 V, 75 kW at 440 V, 75 kW at 500 V, 55 kW at 690 V
AF116-30-00-11 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|DNV GL Certified|LR Certified|RMRS CertifiedSKU #2414483Part Number #AF116-30-00-11UNSPSC39121529UPC07320500476888
