Part #:AF12-30-22-13
SKU #: 2305842
Key Features
Part #:AF12-30-22-13
SKU #: 2305842
Brand: ABB
Coil Power Rating: 3 hp, 7-1/2 hp, 10 hp, 1 hp, 2 hp
Coil Voltage: 100 to 250, 100 to 250 VAC/VDC
Contact Configuration: 3NO
Contact Rating: 28 A at 690 V
Dimensions: 45 mm W x 110.5 mm D x 86 mm H
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 28 A at 690 V, 24 A at 690 V rated operational current AC-1
- 12 A at 220/230/240 V, 12 A at 380/400 V, 12 A at 415 V, 12 A at 440 V, 12.5 A at 500 V, 9 A at 690 V rated operational current AC-3
- 3 hp at 220 to 240 VAC 3 ph, 7-1/2 hp at 440 to 480 VAC 3 ph, 10 hp at 550 to 600 VAC 3 ph, 1 hp at 120 VAC 1 ph, 3 hp at 200 to 208 VAC 3 ph, 2 hp at 240 VAC 1 ph
- 3 kW at 220/230/240 V, 5.5 kW at 380/400 V, 5.5 kW at 415 V, 5.5 kW at 440 V, 7.5 kW at 500 V, 7.5 kW at 690 V, 5.5 kW at 400 V

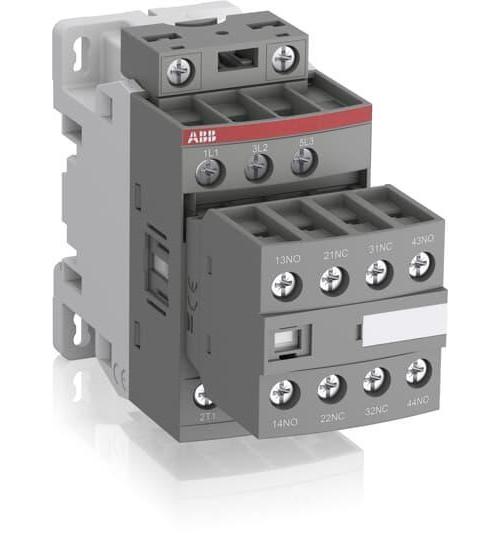

ABB AF12-30-22-13 Line Contactor
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 28 A Maximum Load Current, 3 hp, 7-1/2 hp, 10 hp, 1 hp, 2 hp Coil, 3 Pole, 3/5.5/7.5 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 28 A at 690 V Contact, AF12 Size, Screw Terminal, IP20 Enclosure, -60 to 80 deg C Operating, 45 mm W x 110.5 mm D x 86 mm H Dimensions
Additional Description: ABB -AF12-30-22-13 CTR,3P,11A,100-250VAC/DC,2/2
Catalog Description: AF12 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block, side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the c
