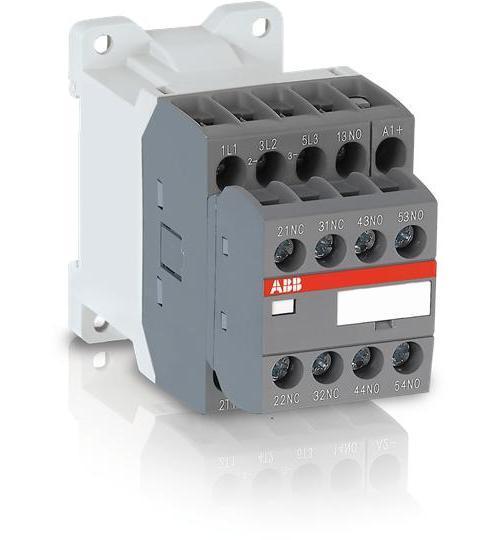

ABB ASL16-30-32-81 Line Contactor
Part Number # ASL16-30-32-81
SKU # 2322787
ABB ASL16-30-32-81 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ASL16-30-32-81 |
| SKU #: | 2322787 |
| Coil Power Rating: | 3/4 hp, 2 hp, 3 hp, 5 hp, 10 hp |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 24 A at 690 V |
| Dimensions: | 45 mm W x 100.2 mm D x 68 mm H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 3NO-2NC |
| Number of Poles: | 3 |
| Operating Temperature: | -60 to 80, -60 to 80 deg C |
| Series: | ASL |
| Size: | ASL16 |
| Terminal Type: | Screw |
| Wattage: | 4/7.5, 4/7.5 kW |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523061811 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB ASL16-30-32-81 Line Contactor
Brand: ABB
Part Number: ASL16-30-32-81
ABB Line Contactor, Series: ASL, 24 VDC Coil, 15.2 A Maximum Load Current, 3/4 hp, 2 hp, 3 hp, 5 hp, 10 hp Coil, 3 Pole, 4/7.5 kW Wattage, 3NO Contact Configuration, 3NO-2NC Auxiliary Contacts, 24 A at 690 V Contact, ASL16 Size, Screw Terminal, IP20 Enclosure, -60 to 80 deg C Operating, 45 mm W x 100.2 mm D x 68 mm H Dimensions
Additional Description: ABB -ASL16-30-32-81 CTR,3P,15.2A,24VDC,3/2
Catalog Description: ASL16 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The AS... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 1st stack with 3 main poles and 1 N.O. built-in auxiliary contact, with a non-removable front-mounted 2 N.O. + 2 N.C. auxiliary contact block (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically" symbol on the contactor side. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. ASL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs.
ASL16-30-32-81 Application
For controlling 3 ph motors and generally for controlling power circuits up to 690 VAC or 220 VDCASL16-30-32-81 Item Features
- 1st stack with 3 main poles and 1 NO built-in auxiliary contact
- 2nd stack with permanently fixed 2NO + 2NC auxiliary contact block
- The auxiliary contact elements are mechanically linked (side-marked symbol) and the NC auxiliary contacts are mirror contacts
- Control circuit - low consumption (3 W at pull-in and holding) DC operated with solid core magnet
- Suitable for direct control by PLC outputs (the polarity on the coil terminals A1+ and A2- must be respected)
- 24 A at 690 V, 20 A at 690 V, 16 A at 690 V rated operational current AC-1
- 15.7 A at 220/230/240 V, 15.5 A at 380/400 V, 15.5 A at 415 V, 13.6 A at 440 V, 12.5 A at 500 V, 9 A at 690 V rated operational current AC-3
- 3/4 hp at 120 VAC 1 ph, 2 hp at 240 VAC 1 ph, 3 hp at 200 to 208 VAC 3 ph, 5 hp at 220 to 240 VAC 3 ph, 10 hp at 440 to 480 VAC 3 ph, 10 hp at 550 to 600 VAC 3 ph
- 4 kW at 220/230/240 V, 7.5 kW at 400 V, 7.5 kW at 415 V, 7.5 kW at 440 V, 7.5 kW at 500 V, 7.5 kW at 690 V
ASL16-30-32-81 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2322787Part Number #ASL16-30-32-81UNSPSC39121529UPC03471523061811
