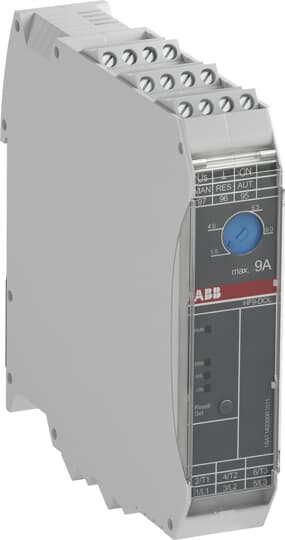

ABB HF9-DOL Starters
Part Number # HF9-DOL
SKU # 2335207
$304.54 / Each
ABB HF9-DOL Key Features
Brand: ABB
Part Number # HF9-DOL
SKU #2335207
Action: Direct On-Line Contactor
Amperage Rating: 9 A
Coil Voltage: 24 VDC
Control Type: Electronic
Dimensions: 99 mm H x 22.5 mm W x 114.5 mm D
Enclosure Type: IP20
Frequency Rating: 50/60 Hz
Number of Poles: 3
Operating Cycles: 10000/30000000 Cycles
Operating Temperature: -25 to 70 deg C
Overload Relay: Class 10 Adjustable
Series: HF
Setting: 1.5 to 9 A
Type: Compact Motor Combination
Voltage Rating: 500 VAC
Wattage: 1.1 to 14.6 W
Connection type: Screw
Manufacturer Name: ABB
UNSPSC: 39121521
UPC: 04013614515590
$304.54 / Each
ABB HF9-DOL Starters
Brand: ABB
Part Number: HF9-DOL
Additional Description: ABB -HF9-DOL HF9 ELECT COMP STARTER
Catalog Description: connections. ABB also offers a HF-DOLE safety range with emergency stop function. This offers Safety Integrity Level 3 in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in accordance with ISO 13849-1. The safety range is ATEX-certified.
HF9-DOL Application
used for the direct-on-line start of motors and the switching of non-resistive loadsHF9-DOL Item Features
- The HF-DOL-range is used for the direct-on-line start of motors and the switching of non-resistive loads
- With contactor and overload relay functionalities integrated into one device, the results are faster wiring times and fewer faults
- For the control and main connection points ABB offers screw connections
- ABB also offers a HF-DOLE safety range with emergency stop function
HF9-DOL Standards
IEC 61508-1|ISO 13849-1|ATEX certified|PROP65SKU #2335207Part Number #HF9-DOLUNSPSC39121521UPC04013614515590
