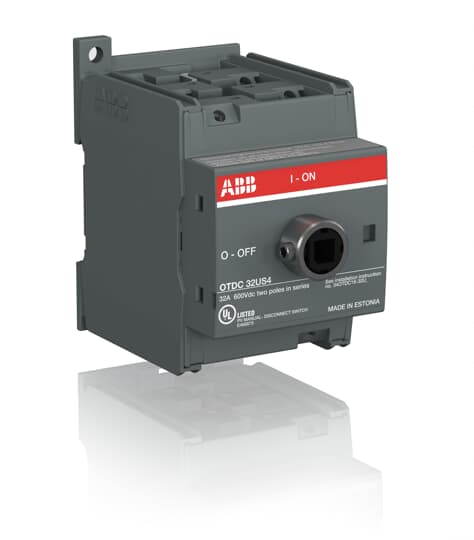

ABB OTDC32U4 Disconnect Switches
Part Number # OTDC32U4
SKU # 2294538
$296.69 / Each
ABB OTDC32U4 Key Features
Brand: ABB
Part Number # OTDC32U4
SKU #2294538
Amperage Rating: 32 A
Contact Form: Switch
Dimensions: 89 mm H x 54.5 mm W x 87 mm D
Enclosure Type: IP20
Number of Poles: 4
Series: OTDC
Terminal Type: Screw
Type: Rotary
Voltage Rating: 600 VDC
Country of origin: FI
Mounting type: Base/DIN Rail
Manufacturer Name: ABB
UNSPSC: 39122233
UPC: 06417019652153
$296.69 / Each
ABB OTDC32U4 Disconnect Switches
Additional Description: ABB -OTDC32U4 (N) 4P 32A NF SW 600VDC UL508I W/O JUMP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: OTDC32U4 PV Disconnect Switch, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, UL 600 VDC 32 A double circuit, IEC 660 VDC 32 A double circuit, IEC 1000 VDC 20 A double circuit
OTDC32U4 Includes
terminal bolt kitOTDC32U4 Standards
UL508i and IEC 60947-1, -3|Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019|CQC2012010302579872|1SCC301192D2704|1SCC301231D0201|1SCC301239D0201|UL certificate OTDC16-32.pdf|PROP65SKU #2294538Part Number #OTDC32U4UNSPSC39122233UPC06417019652153
