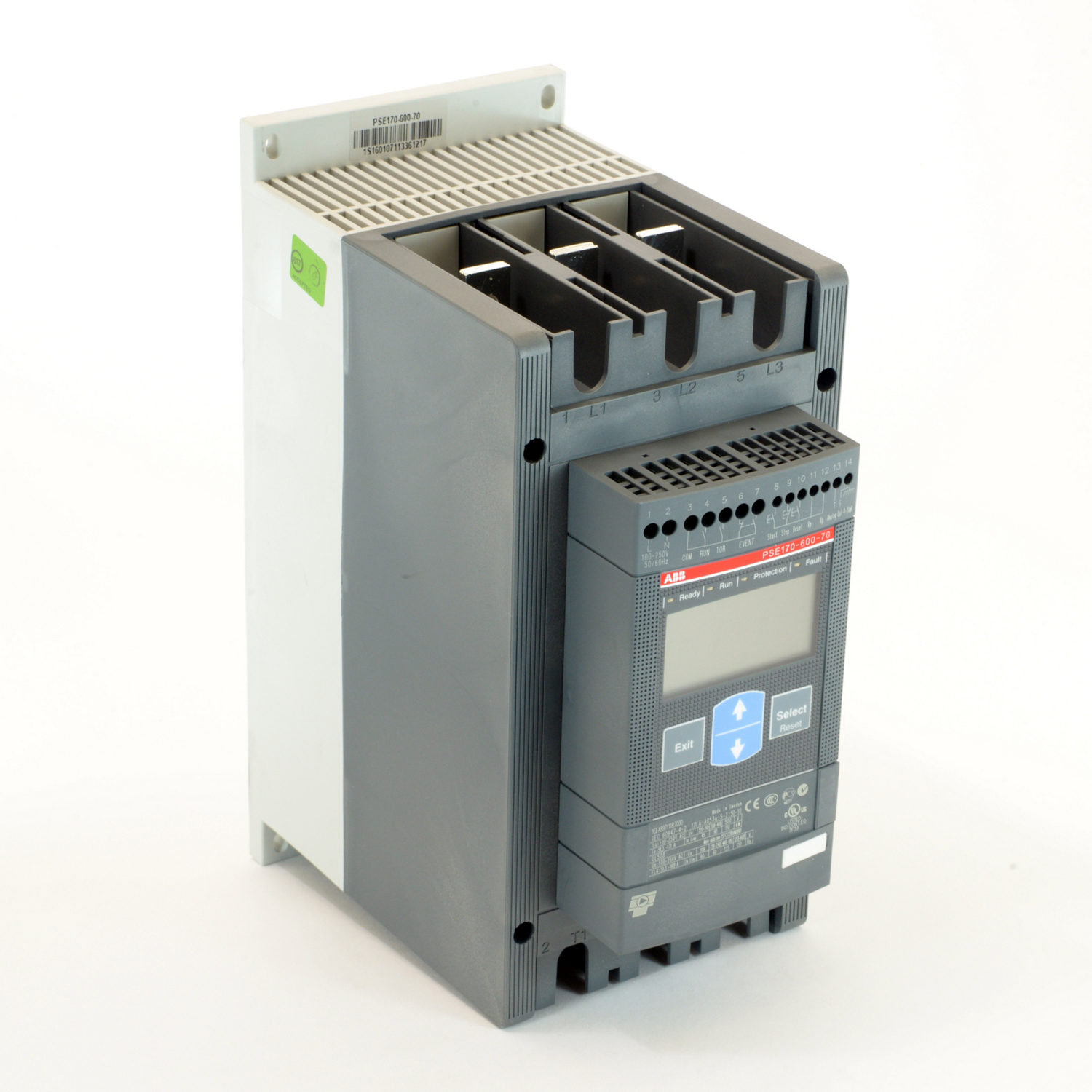

ABB PSE170-600-70 Soft Starter
Part Number # PSE170-600-70
SKU # 2217305
$2721.90 / Each
ABB PSE170-600-70 Key Features
Brand: ABB
Part Number # PSE170-600-70
SKU #2217305
Amperage Rating: 170 A
Coil Voltage: 100 to 250 VAC
Dimensions: 219.5 mm L x 130 mm W x 295 mm H
Enclosure Type: NEMA 1/4X/12/IP00/IP20/IP66/Open
Frequency Rating: 50/60 Hz
Full Load Current: 169 A
Motor Power: 45/90/110 kW
Operating Temperature: -13 to 140 deg F
Overload Relay: Class 10
Phase: 3
Series: PSE
Timing: 1 to 30 s Start, 0 to 30 s Stop
Type: Efficient Range
Voltage Rating: 208 to 600 VAC
Connection type: In-Line Screw
Country of origin: SE
Manufacturer Name: ABB
UNSPSC: 39121521
UPC: 07320500400692
$2721.90 / Each
- ABB Soft Starter, Efficient Range, Series: PSE, 208 to 600 VAC, 170 A, 50/60 Hz Frequency, 45/90/110 kW Motor, 100 to 250 VAC Coil, 1 to 30 s Start, 0 to 30 s Stop Timing, 3 ph, In-Line Screw Connection, Class 10 Overload Relay, 169 A Full Load, NEMA 1/4X/12/IP00/IP20/IP66/Open Enclosure, -13 to 140 deg F Operating, 219.5 mm L x 130 mm W x 295 mm H Dimensions
PSE170-600-70 Item Features
- Coated circuit boards for reliable operation in harsh environment
- Built-in by-pass on all sizes, saving energy and reducing installation time
- User friendly HMI with illuminated language neutral display and 4-button keypad
- Torque control for excellent control of pumps
- Motor overload protection with classes 10A, 10, 20 and 30
- Motor underload protection to detect pumps running dry
- Locked rotor protection, detecting jammed pumps
- Kick start to start jammed pumps or conveyor belts
- Analog output showing operational current, 4 to 20 mA
- Sophisticated algorithm eliminating the DC component and thereby providing excellent starting performance
- 45 kW at 230 V, 90 kW at 400 V, 110 kW at 500 V 3 ph motor power rating
PSE170-600-70 Standards
UL 508|CSA C22.2 No. 14|CE Certified|cULus Listed|CCC Certified|EAC Certified|ANCE Certified|C-Tick Certified|ABS Approved|GL Approved|Lloyds Registered Approved|DNV Approved|CCS ApprovedSKU #2217305Part Number #PSE170-600-70UNSPSC39121521UPC07320500400692
