- Performs periodic self-tests to ensure integrity of GFCI protection
- Visual trip indicator light gives quick notification of a tripped or "end of life" condition
- Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Tamper resistant shutters help prevent foreign objects from being inserted
- Line side terminals are backed out and staked for fast installation
- Horizontal test/reset button alignment provides larger unobstructed area
- Test and reset buttons are color matched to provide superior aesthetics
- Tapered back wire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
- Line load miswiring protection, GFCIs will not provide power downstream when wired incorrectly
- Tri-combo head terminal and mounting screws
- UL Listed, fully compliant with all latest UL 943 class A GFCI requirements
- Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- https://www.youtube.com/watch?v=jwMf03OS_TE&t=5s
Specifications
Brand: Arrowhart
Amperage Rating: 20 A
Dimensions: 4.2 in H x 1.68 in W x 1.27 in D
Frequency Rating: 60 Hz
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Series: SGF_F
Temperature Rating (Degrees F): -31 to 150.8 deg F
Terminal Type: Screw
Type: Duplex Grounding Self-Test
Voltage Rating: 125 VAC
Color: Red
Country of origin: MX
Material: Polypropylene/PVC/Thermoplastic
Manufacturer Name: Eaton
UNSPSC: 0
UPC: 00032664743450

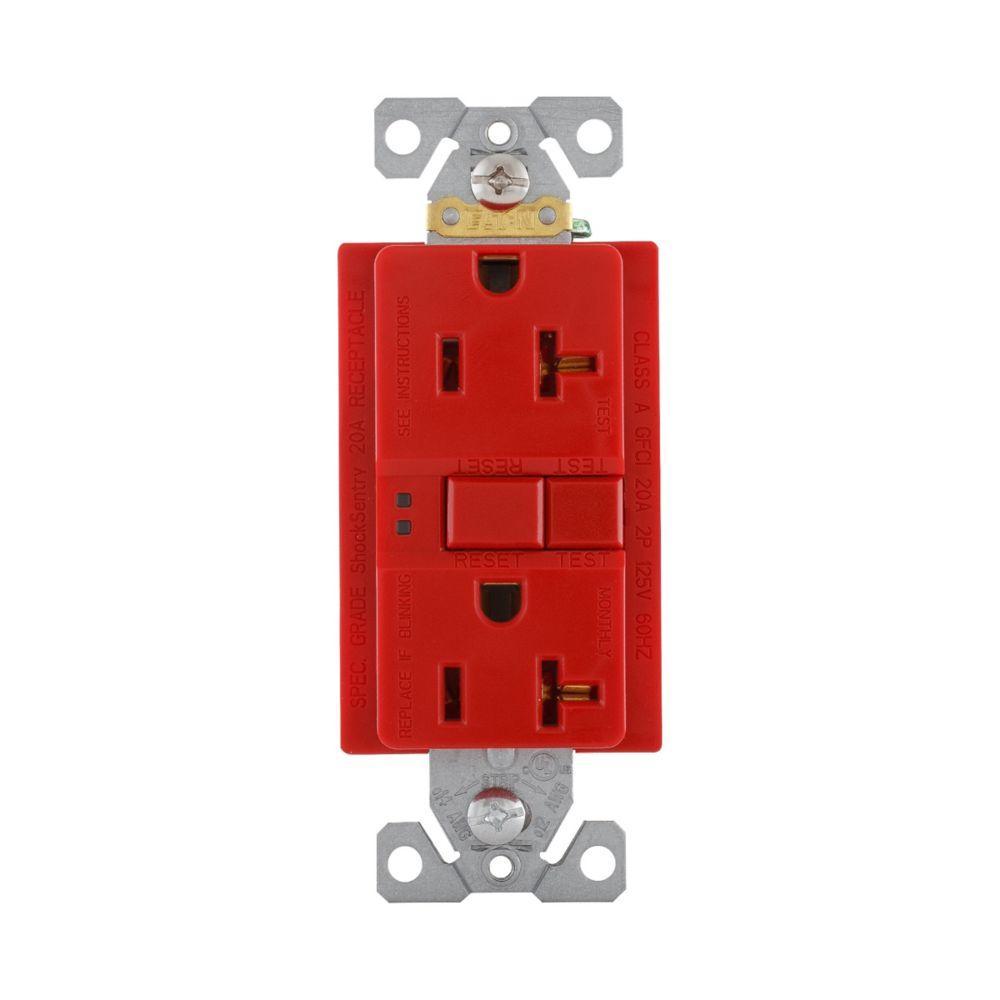

Arrowhart SGF20FRD Gfci Receptacle
Additional Description: AHWD-SGF20FRD GFCI ST Duplex 20A 125V RD NAFTA
Catalog Description: Eaton GFCI receptacle,NAFTA compliant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Red,Brass,Receptacle,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Item FeaturesUsed in residential, commercial, industrial areas like public bathrooms, breakrooms and food service areas
Item FeaturesMatching Thermoplastic Wallplate
Item Features
Item FeaturesNAFTA Compliant|cULus Listed to UL 498 and UL 943 File No. E60120|CSA Certified|NOM 426|UL94 V-2 Flammability Rating|ArrowLlink|Build-to-Spec
