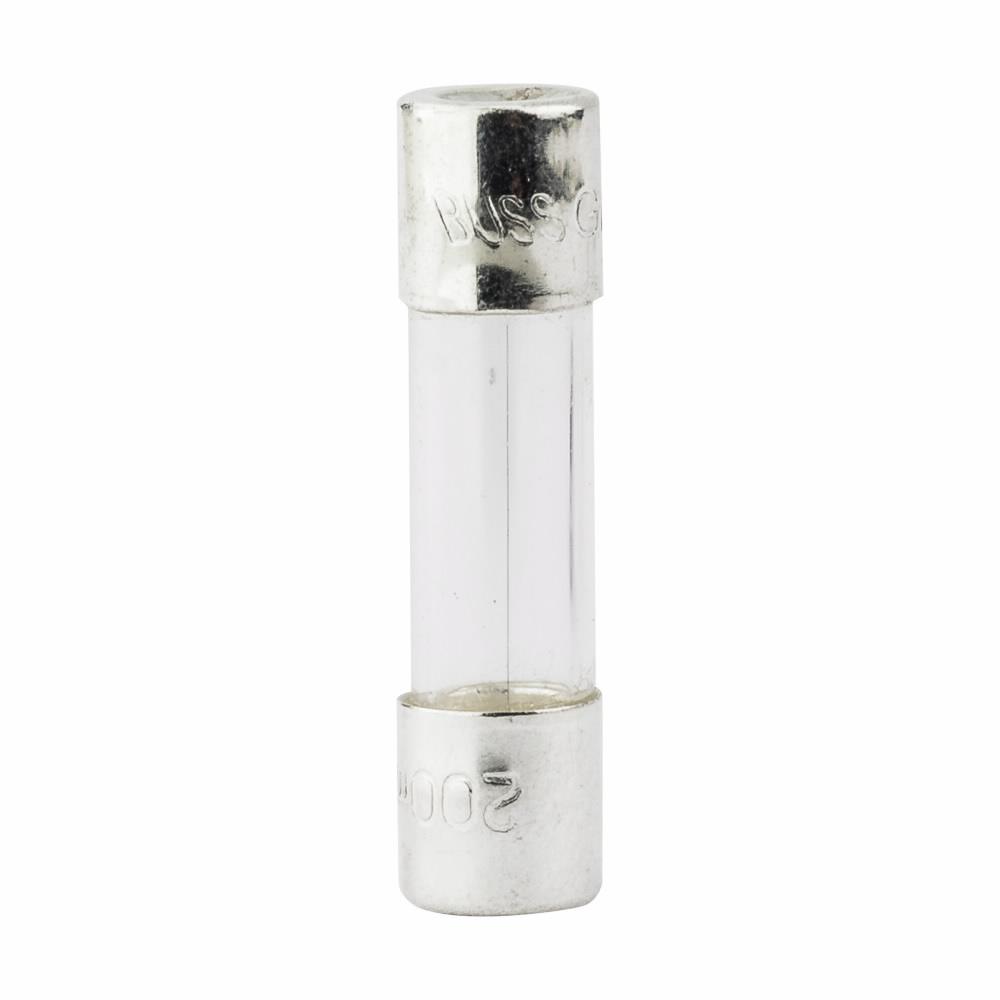

Bussmann GMA-100-R Fast Acting Fuse
Part Number # GMA-100-R
SKU # 2219601
$15.79 / 5Each
Bussmann GMA-100-R Key Features
Brand: Bussmann
Part Number # GMA-100-R
SKU #2219601
Amperage Rating: 100, 100 mA
Body Type: Cylindrical
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 35 A, 10 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 60 min, 2 min
Series: GMA
Terminal Type: Ferrule
Type: Low Breaking Small Dimension
Voltage Rating: 250, 250 VAC
Country of origin: CN
Material: Glass
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121607
UPC: 00051712647854
$15.79 / 5Each
- Bussmann Fast Acting Fuse, Low Breaking Small Dimension, Series: GMA, Non-Indicating, Non-Rejection, 100 mA, 250 VAC, 35 A, 10 kA Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body
GMA-100-R Application
Electronic CircuitsGMA-100-R Item Features
- Fast acting for maximum component protection
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 2 min maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
GMA-100-R Standards
RoHS Compliant|UL Listed|UL 248-14, Guide JDYX|UL File No. E19180|CSA Certified|CSA Class 1422-01,File 53787|PSE ApprovalSKU #2219601Part Number #GMA-100-RUNSPSC39121607UPC00051712647854
