Brand: Bussmann

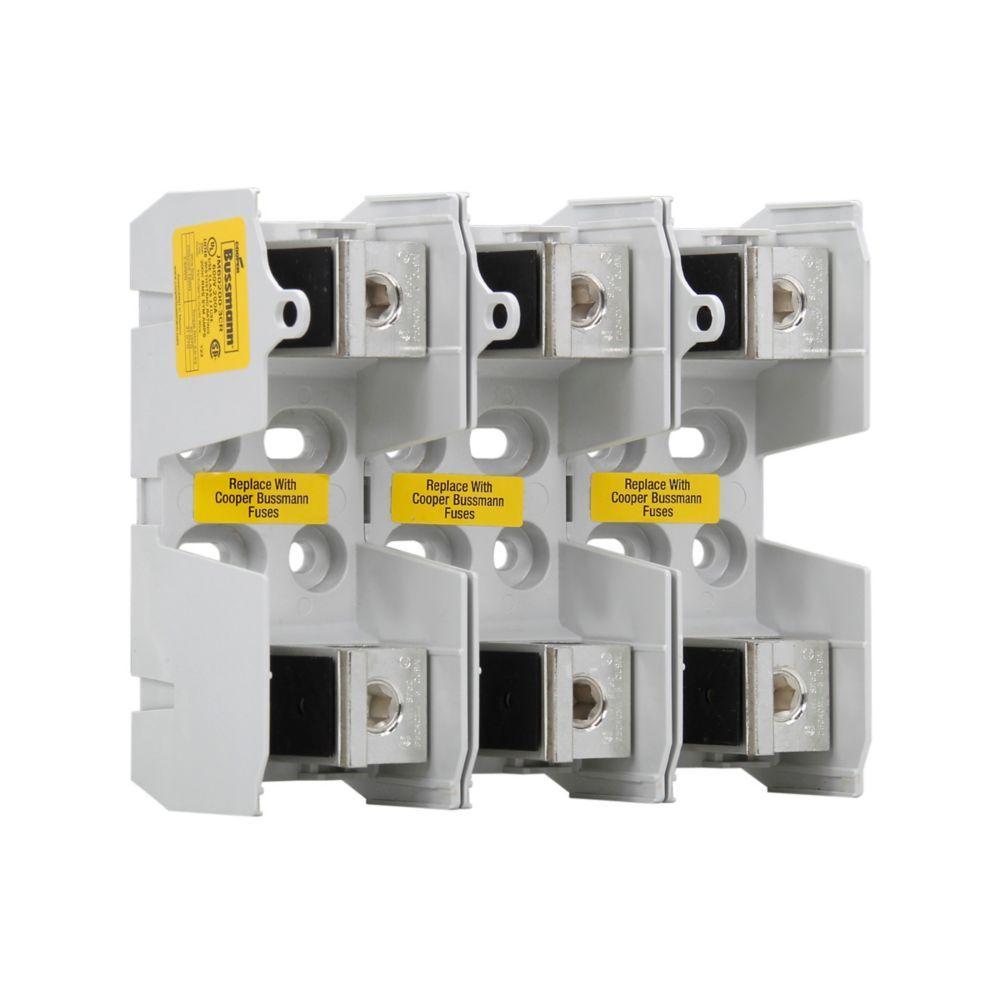

Bussmann JM60200-3CR Fuse Block
Part Number # JM60200-3CR
SKU # 2247989
$4520.82 / 6Each
$9193.08/Each
Only 1 left in stock order soon
Ships in 1 Business Day
Bussmann JM60200-3CR Key Features
Brand: Bussmann
Part Number # JM60200-3CR
SKU #2247989
Amperage Rating: 110 to 200, 110 to 200 A
Class: J
Dimensions: 6.8 in L x 7.9 in W x 3.8 in H, 7.3 in L x 7.9 in W x 3.8 in H
Fuse Diameter: 1.63
Fuse Length: 5-3/4
Number of Poles: 3
Series: JM600
Suitable For Use With: Knife Blade Cartridge Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Voltage Rating: 600, 600 VAC
Wire Size: 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil, 6 AWG to 250 kcmil, 2 to 6 AWG
Connection type: Box Lug
Country of origin: MX
Material: Thermoplastic
Mounting type: Hole, Panel
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712387415
$4520.82 / 6Each
$9193.08/Each
Bussmann JM60200-3CR Fuse Block
Brand: Bussmann
Part Number: JM60200-3CR
Bussmann Fuse Block, 600 VAC, 110 to 200 A, 3 Poles, Class: J, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 7.9 in W x 3.8 in H
Additional Description: BUSS-JM60200-3CR 200 amp class J fuse holder 600V 3 pole 3 pol
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 110-200 A, Three-pole, Class J, 200 kA, Knife blade end x knife blade end, 200 kAIC, 600 V
JM60200-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60200-3CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845)
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A)
- Standard fuse clip reinforcing springs enhance electrical contact
- 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG copper solid and stranded 1 to 3/0 AWG, 6 to 2 AWG copper fine stranded wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60200-3CR Standards
UL Listed|cULus File No. E14853|CSA Certified|UL94 V-0 Flammability RatingSKU #2247989Part Number #JM60200-3CRUNSPSC39121629UPC00051712387415
