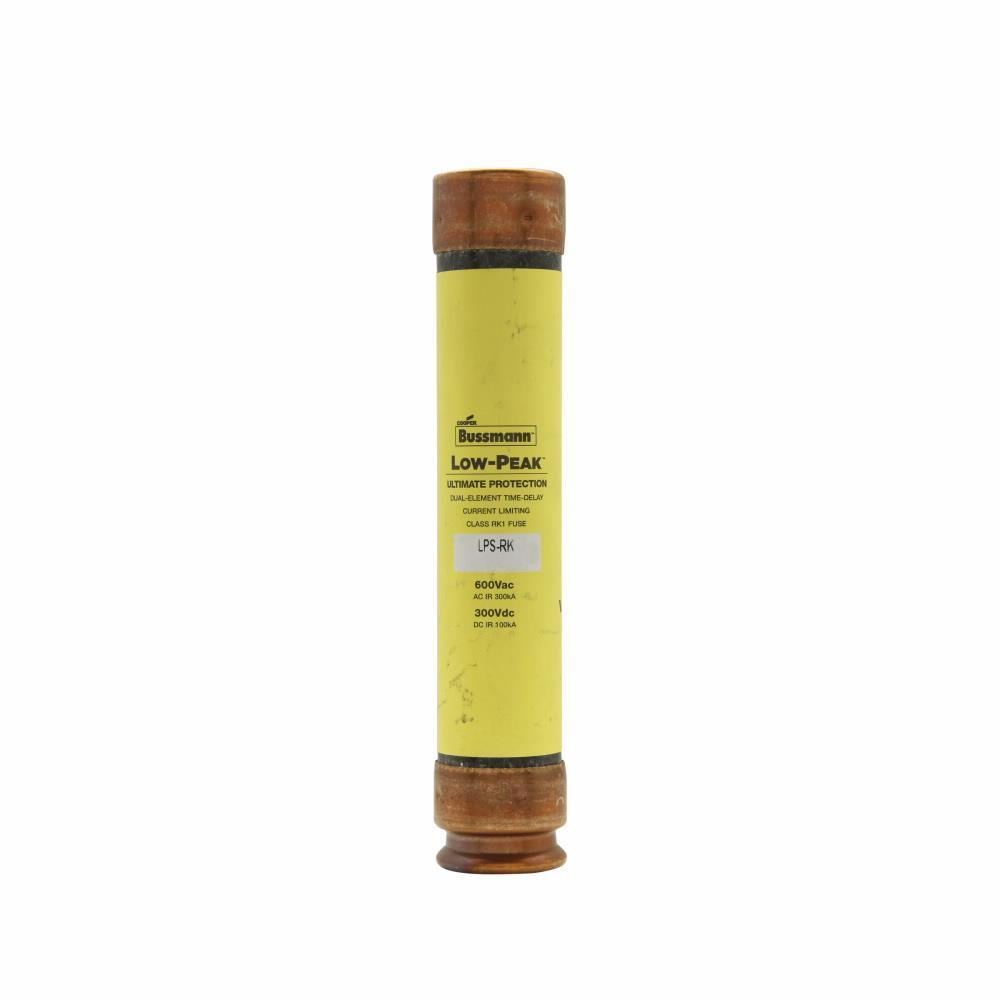

Bussmann LPS-RK-60SP Time Delay Fuse
Part Number # LPS-RK-60SP
SKU # 8231
Bussmann LPS-RK-60SP Key Features
Bussmann LPS-RK-60SP Time Delay Fuse
Brand: Bussmann
Part Number: LPS-RK-60SP
Bussmann Low-Peak Fuse, Current Limiting Low Voltage Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 60 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.06 in Dia x 5.5 in L Body Size
Additional Description: BUSS-LPS-RK-60SP LOW-PEAK DUAL ELEMENT
Catalog Description: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 60 A, non-indicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
LPS-RK-60SP Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect SwitchesLPS-RK-60SP Item Features
- Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 prevents widespread blackouts
- Time delay permits 130% FLA sizing for back-up motor protection
- 300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Electrically isolated end caps for additional safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
LPS-RK-60SP Standards
CE Certified|CSA C22.2 File No.53787/248.12|UL File No.E4273 Guide JDDZSKU #8231Part Number #LPS-RK-60SPUNSPSC39121606UPC00051712548410
