Brand: Bussmann

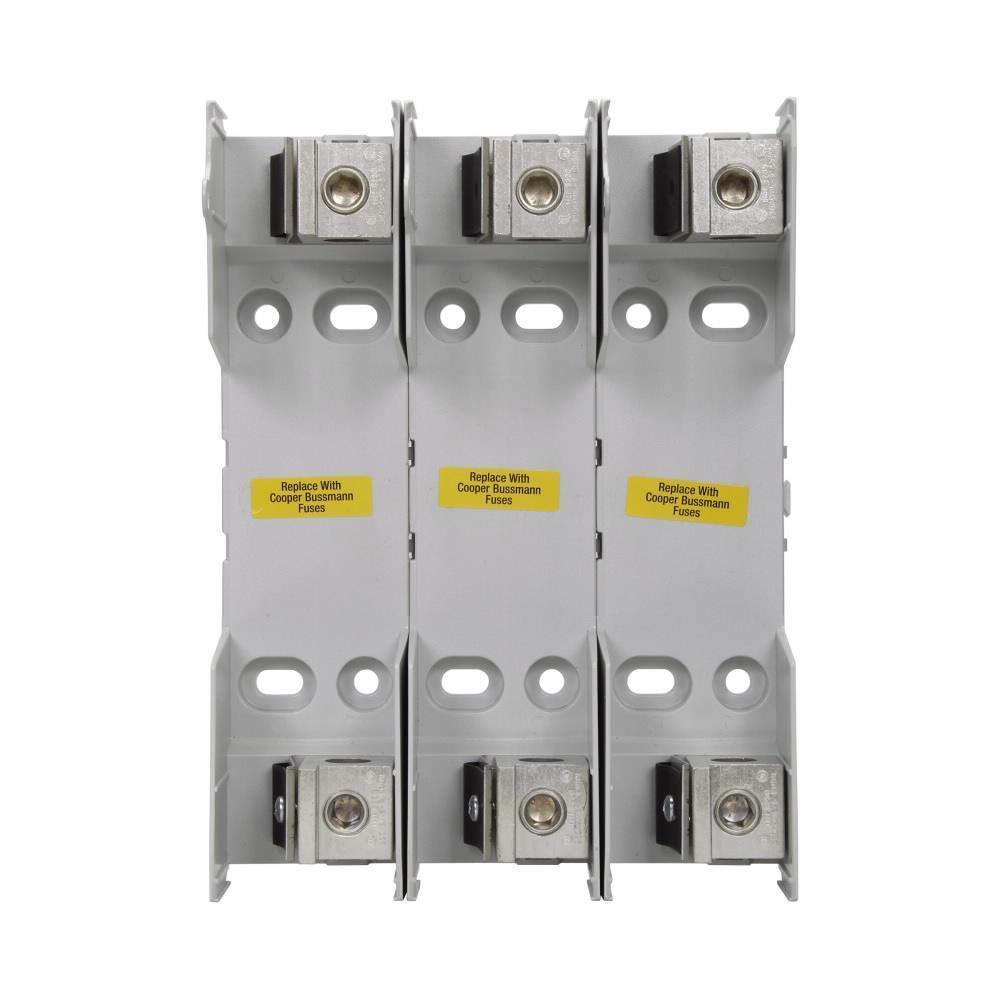

Bussmann RM60200-3CR Fuse Block
Part Number # RM60200-3CR
SKU # 2275775
$696.27 / Each
Bussmann RM60200-3CR Key Features
Brand: Bussmann
Part Number # RM60200-3CR
SKU #2275775
Amperage Rating: 110 to 200, 110 to 200 A, 200
Class: R
Dimensions: 11.2 in L x 7.9 in W x 3.8 in H, 7.3 in L x 7.9 in W x 3.8 in H
Fuse Diameter: 1.84/1.66
Fuse Length: 9.63
Number of Poles: 3
Series: RM Series, RM600
Suitable For Use With: Knife Blade Cartridge Fuse, Low-Peak™ LPS-RK-SP and LPS-RK-SPI, Fusetron™ FRS-R, Limitron™ KTS-R, KWS-R and PVS-R Fuse
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Type: Modular, Modular Knife Blade
Voltage Rating: 600, 600 V
Wire Size: 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil, 6 AWG to 250 kcmil
Connection type: Box Lug, Knife Blade End
Country of origin: MX
Material: Thermoplastic
Mounting type: Hole, Panel
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712387385
$696.27 / Each
Bussmann RM60200-3CR Fuse Block
Brand: Bussmann
Part Number: RM60200-3CR
Bussmann Fuse Block, Modular, Series: RM Series, 600 V, 110 to 200 A, 3 Pole, Class: R, Knife Blade End, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 7.9 in W x 3.8 in H
Additional Description: BUSS-RM60200-3CR 200 amp class R fuse holder 600V 3 pole 3 pol
Catalog Description: Eaton Bussmann Series RM modular fuse block, CR, 110-200 A, Three-pole, Class R, Knife blade end x knife blade end, 600 V
RM60200-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsRM60200-3CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
RM60200-3CR Standards
CSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability RatingSKU #2275775Part Number #RM60200-3CRUNSPSC39121629UPC00051712387385
