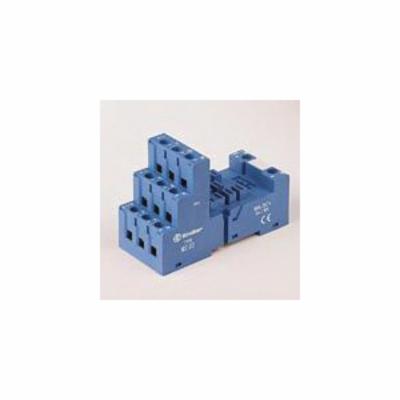

FINDER 9203 Relay Socket
Part Number # 9203
SKU # 330129
$75.40 / 10Each
Finder 9203 Key Features
Brand: Finder
Part Number # 9203
SKU #330129
Amperage Rating: 16 A
Dimensions: 91.3 mm L x 40 mm W x 60.9 mm H
Enclosure Type: IP20
Number of Pins: 11
Number of Poles: 2/3, 3-Feb
Series: 92 Series
Suitable For Use With: 62.31/62.32/62.33 Power Relay
Temperature Rating (Degrees F): -40 to 70 deg C
Terminal Type: Screw Clamp
Voltage Rating: 250 VAC
Color: Blue
Mounting type: DIN Rail/Panel
UNSPSC: 39122335
UPC: 08012823121239
$75.40 / 10Each
FINDER 9203 Relay Socket
Brand: Finder
Part Number: 9203
Finder Relay Socket, Series: 92 Series, 250 VAC, 16 A, 11 Pins, 2/3 Pole, -40 to 70 deg C, For Use With: 62.31/62.32/62.33 Power Relay, DIN Rail/Panel Mounting, Screw Clamp Terminal, IP20 Enclosure, 91.3 mm L x 40 mm W x 60.9 mm H Dimensions, Blue
Additional Description: FIND-9203 DIN -RAIL/PANEL MOUNT SCREW TERMINAL (BOX CLAMP) SOCKET FOR 62.32/33 RELAY (BLUE)
9203 Item Features
- Requires 092.00.2 identification tag, 99.01 coil indication and EMC suppression modules, 86.00, 86.30 timer modules
- 6 kV (1.2/50 us) dielectric strength between coil and contacts
- 0.8 nm screw torque
- 10 mm wire strip length
- 1 x 8 AWG/2 x 12 AWG solid wire
- 1 x 10 AWG/2 x 12 AWG stranded wire
- Panel or 35 mm rail (EN 60715) mount
- Screw terminal (box clamp) socket
SKU #330129Part Number #9203UNSPSC39122335UPC08012823121239
