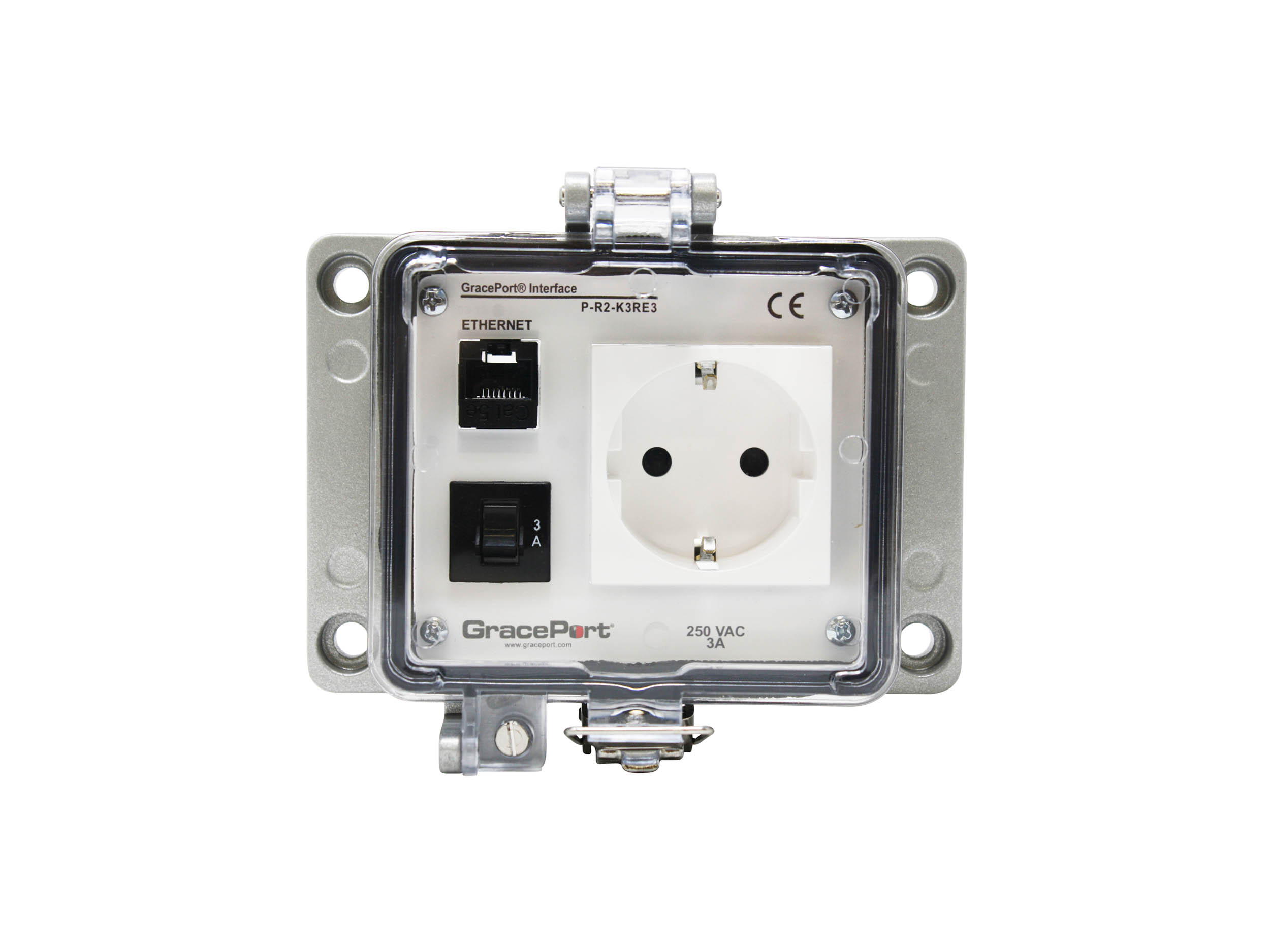

Grace Engineered Products P-R2-K3RE3 Computer Port Connector Interface
Part Number # P-R2-K3RE3
SKU # 2341892
Grace Engineered Products P-R2-K3RE3 Key Features
Grace Engineered Products P-R2-K3RE3 Computer Port Connector Interface
Brand: Grace Engineered Products
Part Number: P-R2-K3RE3
GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 5.08 in L x 1.65 in W x 3.54 in H Dimensions
Additional Description: GRAC-P-R2-K3RE3 N12/4 ETHERNET CONT EUROPE OUTLET CATEGORY 5E RJ45, PANEL MOUNT HOUSING, UL TYPE 4, EUROPEAN OUTLET, 3 AMP CIRCUIT BREAKER HOUSING, UL TYPE 4, EUROPEAN OUTLET, 3 AMP CIRCUIT BREAKER CATEGORY 5E RJ45, PANEL MOUNT HOUSING, UL TYPE 4, EUROPEAN OUTLET, 3 AMP CIRCUIT BREAKER CATEGORY 5E RJ45, PANEL MOUNT HOUSING, UL TYPE 4, EUROPEAN OUTLET, 3 AMP CIRCUIT BREAKER Interface,GRACEPORT,PNL Mount,5.080 IN LEN,1.650 IN W
Catalog Description: PANEL INTERFACE CONNECTOR WITH CATEGORY 5E RJ45, PANEL MOUNT HOUSING, UL TYPE 4X, GFCI DUPLEX INSIDE-OUTLET, 3 AMP CIRCUIT BREAKER
P-R2-K3RE3 Application
Outdoor UseP-R2-K3RE3 Item Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 1 port
- 32 point, NEMA 12/4, IP65, cast alloy base enclosure
- 3 A 250 V circuit breaker
P-R2-K3RE3 Standards
UL E207344|CSA LR110845|RU/RoHS CompliantSKU #2341892Part Number #P-R2-K3RE3UNSPSC32151708UPC00084286410602
