Part Number # HJ14128HLP
SKU # 2370426
Brand: Hammond Manufacturing
HJ14128HLP
Hammond Manufacturing HJ14128HLP Junction Box
Part Number # HJ14128HLP
SKU # 2370426
$179.22 / Each
Typical price:$270.59 / Each
Hammond Manufacturing HJ14128HLP Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | HJ14128HLP |
| SKU #: | 2370426 |
| Finish: | Phosphatized/Powder Coated |
| Series: | HJ H |
| Type: | Less Panel |
| UNSPSC: | 39121324 |
| UPC: | 00623980879215 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$179.22 / Each
Typical price:$270.59 / Each
Quantity:
- Hammond Junction Box, Less Panel, Series: HJ H, 14 in Height, 12 in Width, 8 in Depth, NEMA 3R/4/12/13/IP66 NEMA Rating, Hinged Cover, 12.75 in H x 10.88 in W Panel, 1344 cu-in Capacity, Wall Mounting, 14 ga Mild Steel, Phosphatized/Powder Coated, ANSI 61 Gray
HJ14128HLP Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures ApplicationsHJ14128HLP Item Features
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuous hinged cover is secured with stainless steel clamps and screws
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
HJ14128HLP Standards
CSA Certified|CE Certified|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2370426Part Number #HJ14128HLPUNSPSC39121324UPC00623980879215

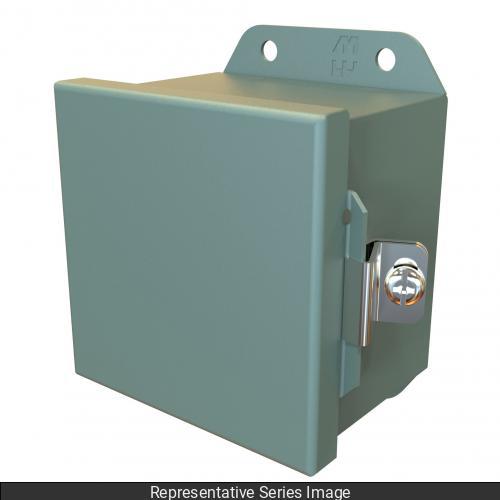

Image provided may only be a representation of final product and may include optional equipment
