Brand: Hubbell

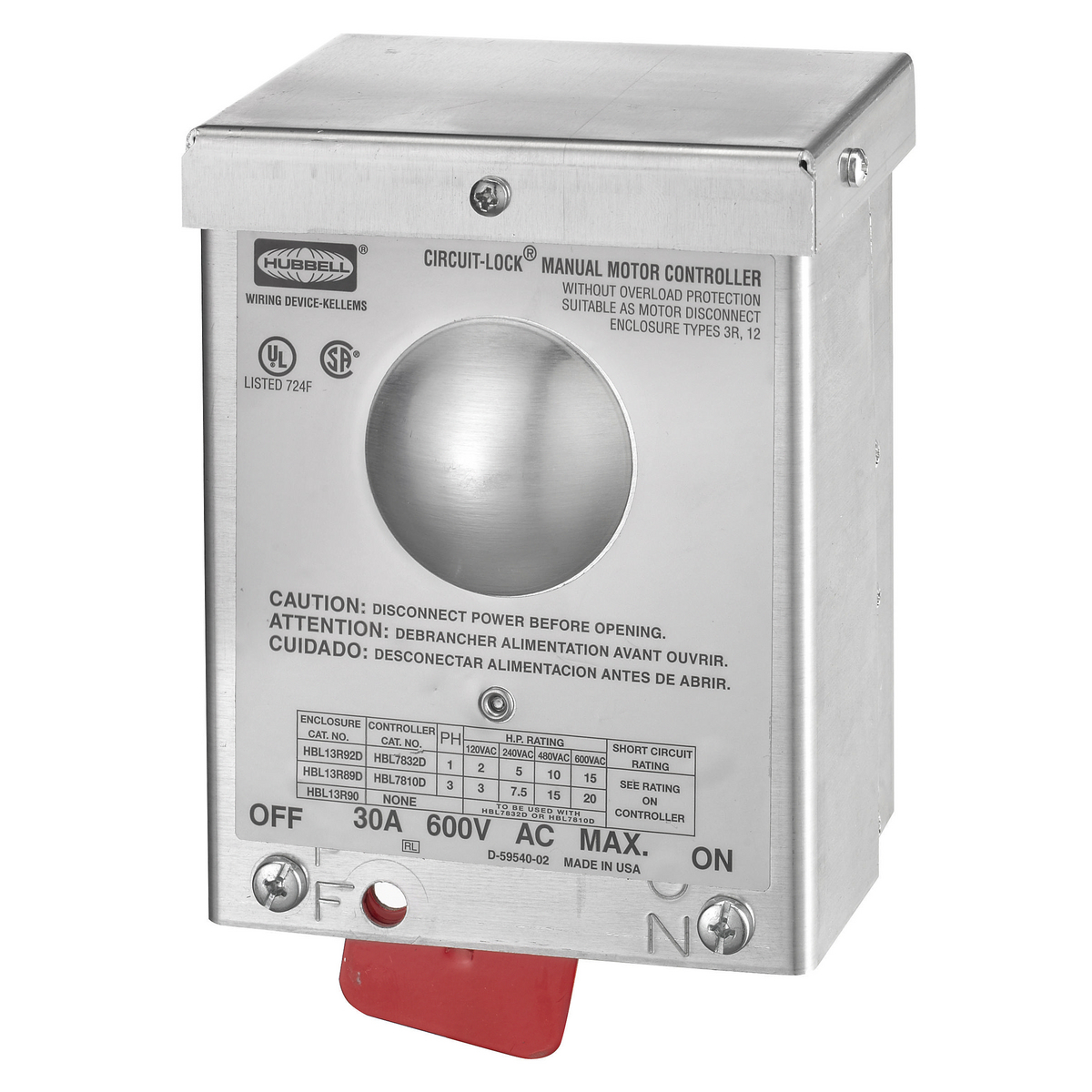

Hubbell HBL13R89 HBL Switched Disconnects and Enclosures, 600 VAC, 30 A, 20 hp, 3 Poles
Part Number # HBL13R89
SKU # 2405802
$189.34 / Each
7790 In Stock
Ships in 1 Business Day
Hubbell HBL13R89 Key Features
Brand: Hubbell
Part Number # HBL13R89
SKU #2405802
Amperage Rating: 30 A
Dimensions: 3.3 in H x 4.4 in W x 5.52 in L
Enclosure Type: NEMA 3R
Horsepower: 20 hp
Number of Poles: 3
Phase: 1
Series: HBL
Short Circuit Current Rating (kA): 60 A
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Pressure Screw
Type: Disconnect Switch
Voltage Rating: 600 VAC
Country of origin: CN, US
Mounting type: Screw
Manufacturer Name: Hubbell
UNSPSC: 39121521
UPC: 00783585680972
$189.34 / Each
Hubbell HBL13R89 HBL Switched Disconnects and Enclosures, 600 VAC, 30 A, 20 hp, 3 Poles
Brand: Hubbell
Part Number: HBL13R89
Additional Description: HUBW-HBL13R89 30A 600V 3 POLE DISC SW W/NEMA 3R ********************************** MUST SHIP FULL SKIDS DO NOT SHIP BROKEN PACKS
Catalog Description: Circuit-Lock® NEMA 3R Enclosure Switch Disconnect, 3-Pole, 30A 600V AC, Aluminum
HBL13R89 Application
For Red SlideHBL13R89 Item Features
- All aluminum cover and base
- Surface mount control
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL13R89 Standards
CSA-C22.2 No.14|Industrial Control File LR-46186|UL 508|Industrial Control File E70402SKU #2405802Part Number #HBL13R89UNSPSC39121521UPC00783585680972
