Part Number # HBL2603
SKU # 2346765
Image Disclaimers Message
HBL2603

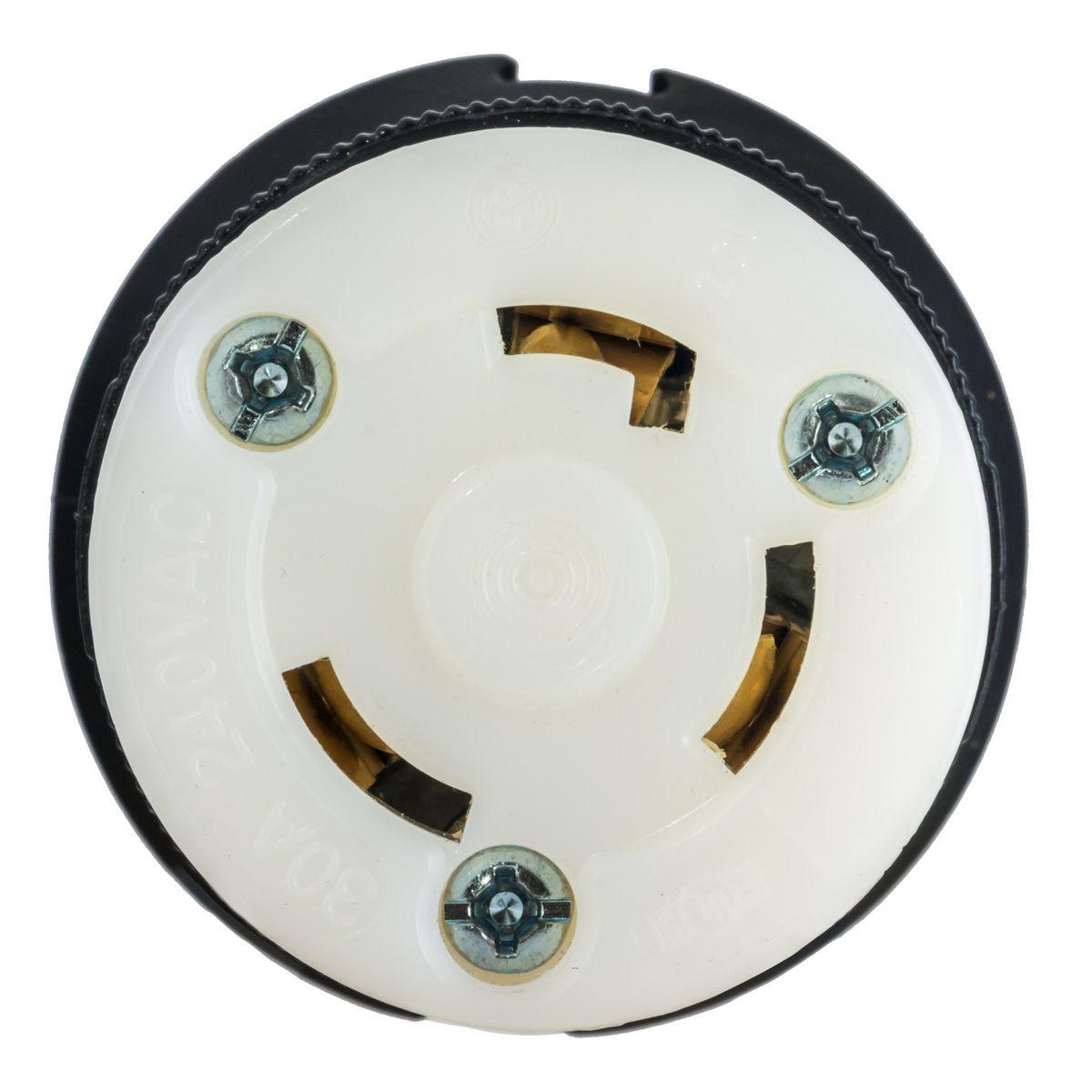

Hubbell HBL2603 Locking Female Connector
Part Number # HBL2603
SKU # 2346765
$82.71 / Each
Typical price:$107.00 / Each
Hubbell HBL2603 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL2603 |
| SKU #: | 2346765 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.36 to 0.93, 0.36 to 0.93 in |
| Dimensions: | 3.36 in L x 1.97 in W |
| Enclosure: | IP20 |
| NEMA Rating: | L25-30R, NEMA L25-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Heavy Duty Insulated Isolated Ground Standard, Heavy Duty Insulated Isolated Ground Standard Cord Mount |
| Color: | Black/White |
| Country of origin: | PR, US |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585580296 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.71 / Each
Typical price:$107.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip Locking Female Connector, Heavy Duty Insulated Isolated Ground Standard Cord Mount, 240 V AC, 30 A, 2 Pole, 3 Wires, L25-30R NEMA Rating, IP20 Enclosure, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 3.36 in L x 1.97 in W
HBL2603 Application
Indoor Dry EnvironmentHBL2603 Item Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral, dust shield protects wiring chamber from dust or contaminants
- https://youtu.be/1DnPJu3QNw0
HBL2603 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42SKU #2346765Part Number #HBL2603UNSPSC39121421UPC00783585580296
