Part Number # HBL332NM
SKU # 2340380
HBL332NM
Hubbell HBL332NM Hull Inlet
Part Number # HBL332NM
SKU # 2340380
Hubbell HBL332NM Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL332NM |
| SKU #: | 2340380 |
| Amperage Rating: | 32, 32 A |
| Dimensions: | 3.83 in L x 3.4 in W x 3.47 in H |
| Enclosure: | IP55/IP56 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Grounding, 1-Phase Grounding Screw Mount Watertight |
| Country of origin: | PR |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585040622 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

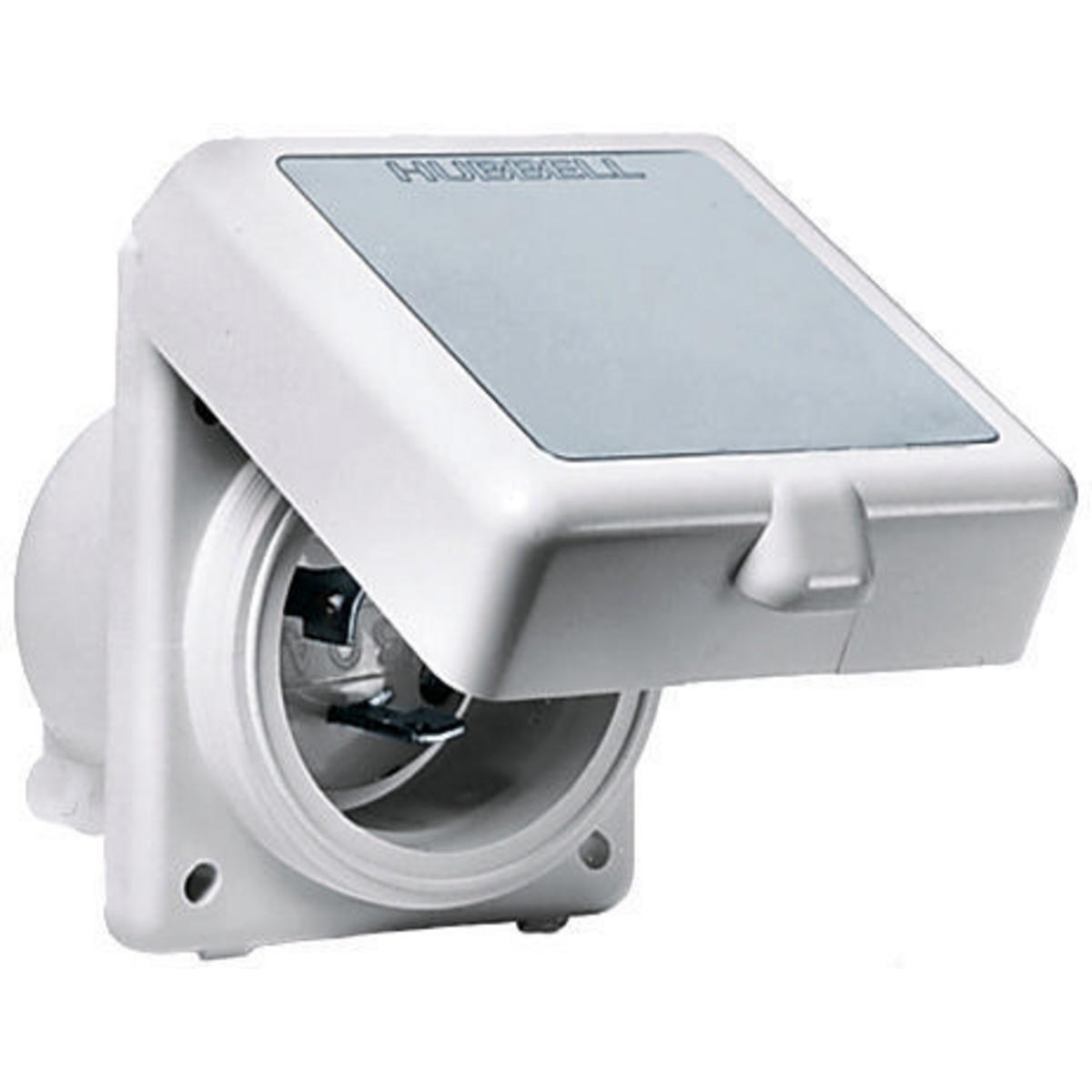

Hubbell HBL332NM Hull Inlet
Brand: Hubbell
Part Number: HBL332NM
Wiring Device-Kellems Twist-Lock Hull Inlet, 1-Phase Grounding Screw Mount Watertight, 230 VAC, 32 A, 2 Pole, 3 Wires, Marine Grade, IP55/IP56 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, White, 3.83 in L x 3.4 in W x 3.47 in H
Additional Description: HUBW-HBL332NM (N) MARINE HULL INLET, 32A 230V, NM NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Locking Devices, Twist-Lock®, Marine Grade, Hull Inlet, 32A 230V AC 50 Cycles, 2-Pole 3-Wire Grounding, International, Screw Terminal, White
HBL332NM Application
Ship-To-Shore Power System ApplicationsHBL332NM Item Features
- New quick connect with backwards compatibility
- Self-closing Cover
- Thermoset Contact Carrier
- Corrosion Resistant Rear enclosure
- https://youtu.be/6vsZAR79ASo
HBL332NM Standards
CE Certified|NEMA WD1/ WD5SKU #2340380Part Number #HBL332NMUNSPSC39121406UPC00783585040622
Image provided may only be a representation of final product and may include optional equipment
