Part Number # HBL3764C
SKU # 131068
HBL3764C

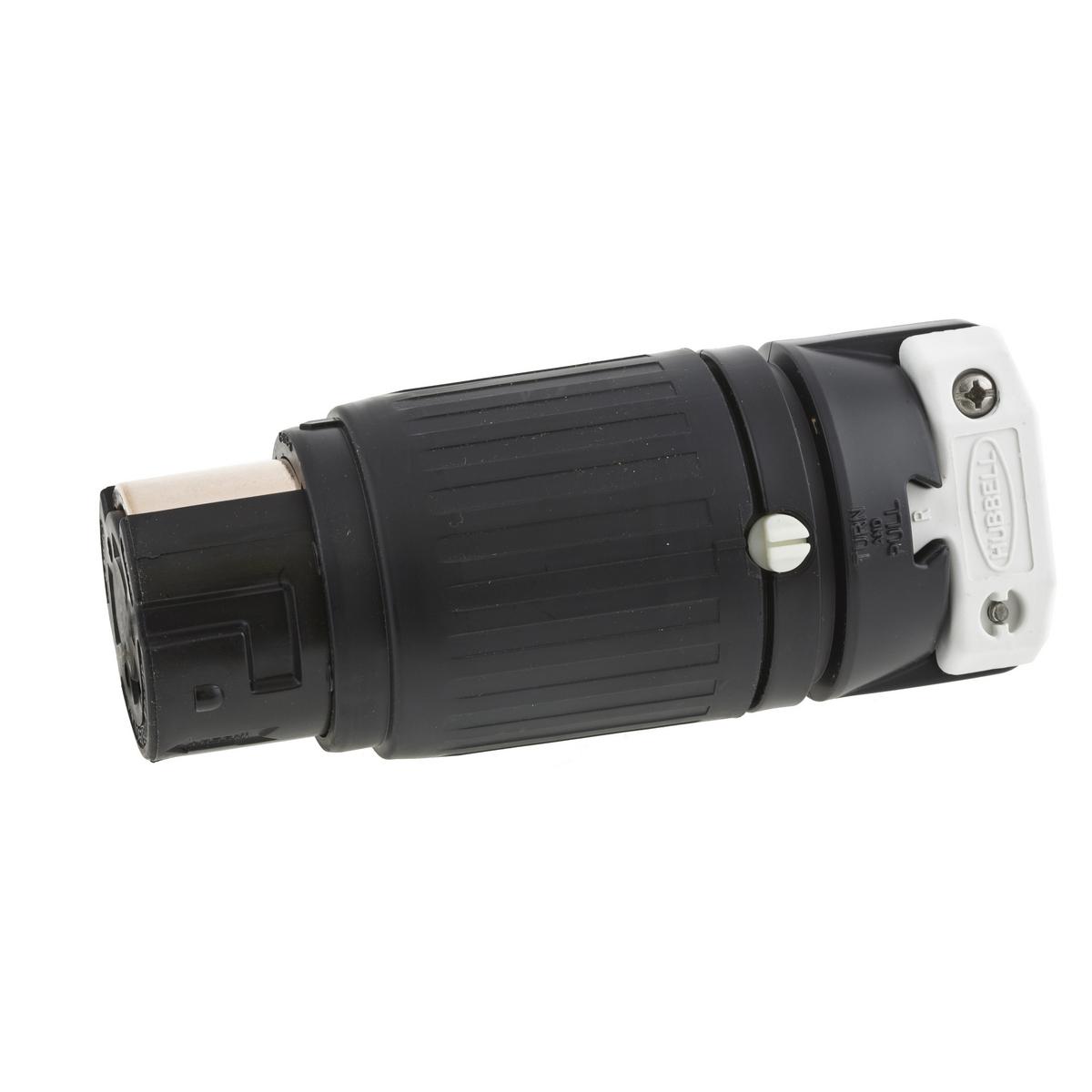

Hubbell HBL3764C Locking Connector
Part Number # HBL3764C
SKU # 131068
$2157.10 / 10Each
Typical price:$4100.00 / Each
Hubbell HBL3764C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL3764C |
| SKU #: | 131068 |
| Amperage Rating: | 50 A |
| Cord Diameter: | 3/4 to 1-1/8 in |
| Dimensions: | 2.59 x 2.59 x 6.5 in |
| Enclosure: | IP20 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Grounding Heavy Duty Cord Mount |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585236421 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2157.10 / 10Each
Typical price:$4100.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Insulgrip, HBL3764C, Locking Connector, Grounding Heavy Duty Cord Mount, Series: HBL, 600 V AC/250 V DC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.59 x 2.59 x 6.5 in Dimensions
HBL3764C Item Features
- Oversized contacts minimize operating temperature
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Thermoplastic polyester interior provides heat resistance and impact strength
- https://youtu.be/1DnPJu3QNw0
HBL3764C Standards
UL 498|CSA C22.2 No. 42 CertifiedSKU #131068Part Number #HBL3764CUNSPSC39121421UPC00783585236421
Image provided may only be a representation of final product and may include optional equipment
