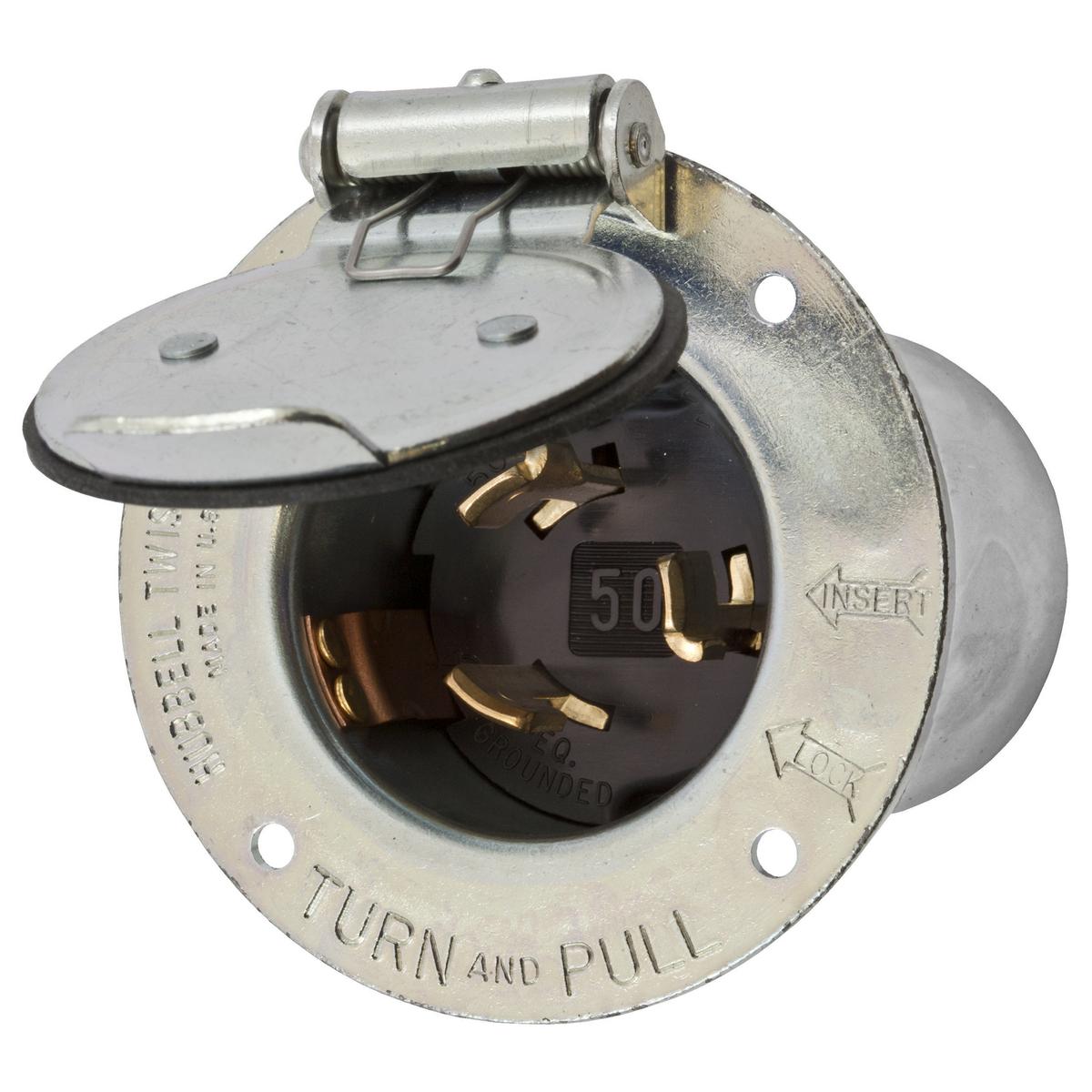

Hubbell HBL3768 Locking Flanged Inlet
Image Disclaimers Message
Hubbell HBL3768 Locking Flanged Inlet
Hubbell HBL3768 Locking Flanged Inlet
Part #:HBL3768
SKU #: 2283194
Key Features
Part #:HBL3768
SKU #: 2283194
Brand: Hubbell
Amperage Rating: 50, 50 A
Dimensions: 2-11/64 in Dia x 2-9/16 in L, 2.17 x 3.5 x 2.56, 2.17 x 3.5 x 2.56 in
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
- Withstands 2000 VAC minimum dielectric voltage
- Thermoset interior provides superior heat resistance
- Screw mounted
- Non-NEMA rated
- Metallic flanged casing provides maximum strength and protection
- 50 A 6 AWG terminal accommodation
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent rated current at a power factor of 75 Percent
- Brass blade
- https://youtu.be/1DnPJu3QNw0
Hubbell HBL3768 Locking Flanged Inlet
Wiring Device-Kellems Twist-Lock Locking Flanged Inlet, 3-Phase Extra Heavy Duty Grounding Standard Screw Mount, 600 VAC/250 VDC, 50 A, 3 Pole, 4 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Steel, Metallic, 2.17 x 3.5 x 2.56 in
Additional Description: HUBW-HBL3768 LKG FLG INLT,50A 250VDC/600VAC,3P4W,COV
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior with lift cover, Metallic
