Part Number # HBL430C5W
SKU # 2255306
HBL430C5W

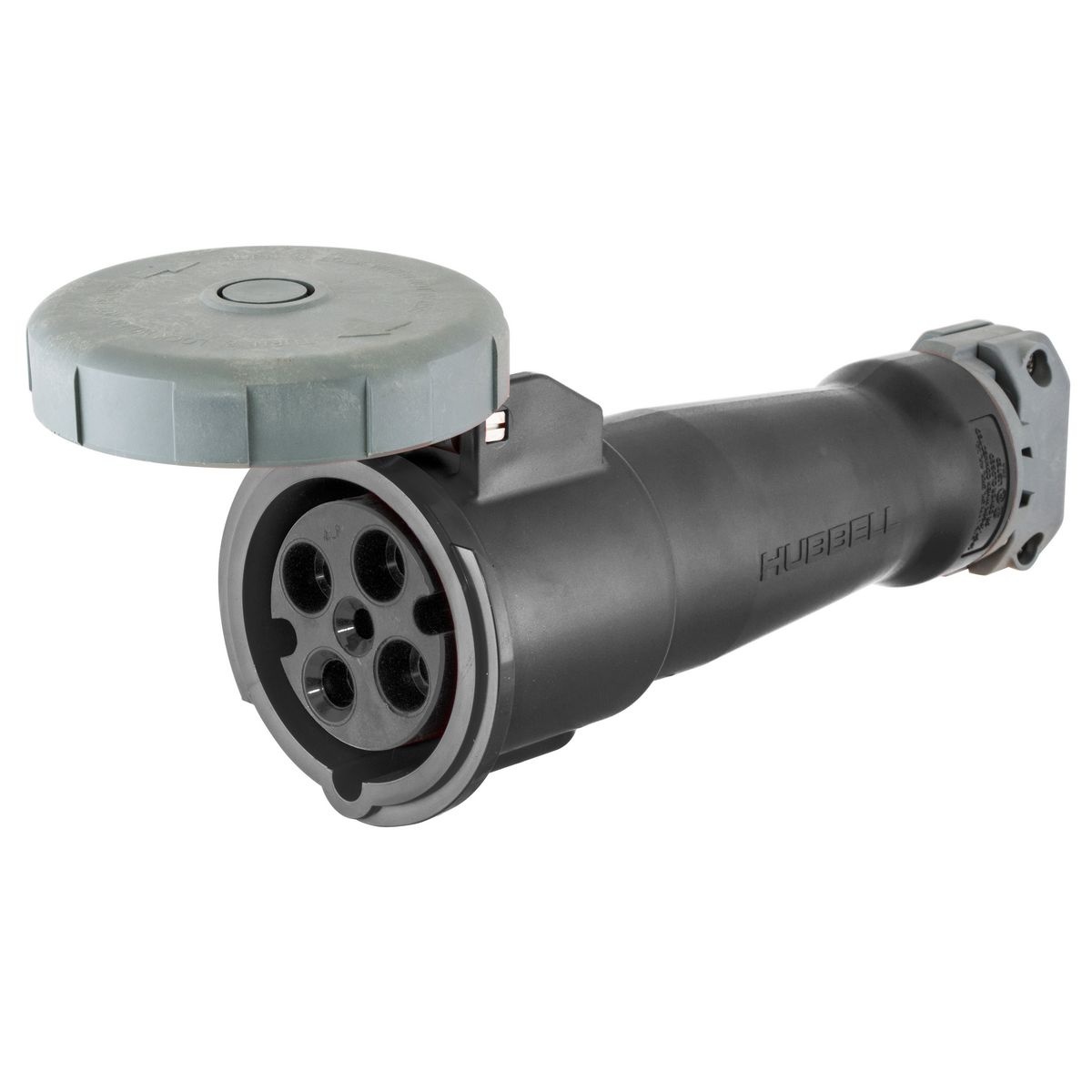

Hubbell HBL430C5W Pin and Sleeve Connector
Part Number # HBL430C5W
SKU # 2255306
Hubbell HBL430C5W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430C5W |
| SKU #: | 2255306 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 4.27 in Dia x 9.05 in L |
| Enclosure: | IP67 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Grounding Watertight, Female Grounding Watertight Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585404509 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL430C5W Pin and Sleeve Connector
Brand: Hubbell
Part Number: HBL430C5W
Wiring Device-Kellems Pin and Sleeve Connector, Female Grounding Watertight Cord Mount, 600 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 4.27 in Dia x 9.05 in L
Additional Description: HUBW-HBL430C5W PS, IEC, CONN, 3P4W, 30A 3P 600V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
HBL430C5W Application
High Ampacity ConnectionsHBL430C5W Item Features
- Insulated Non-Metallic housing
- Color coded housings by voltage for easy identification
- Corrosion-resistant self-closing gasketed cover
HBL430C5W Standards
UL 498|UL 1682|UL 1686C2 File No. E146033|IEC 309-1/309-2|CSA File No. LR280C|RoHS CompliantSKU #2255306Part Number #HBL430C5WUNSPSC39121421UPC00783585404509
Image provided may only be a representation of final product and may include optional equipment
