- Rynite SST35 gland cap
- Stainless steel (300 series) cord clamp screws
- Nickel plated brass clamp nut
- Brass ground, phase sleeve
- Stainless steel (300 series) assembly screws, Rynite SST35 cord clamps
- 0.87 in to 1.45 in cord clamp range and 1/2 to 1.45 in outer diameter cable
- Neoprene grommet/glands
- Brass ground standoff
- Nickel plated spring bronze ground bracket
- Withstands 3000 VAC dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Up to 1000 connect and disconnect cycles at full rated current and voltage endurance
Specifications
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 3.7 in Dia x 9.6 in L
NEMA Rating: 3/4/4X, NEMA 3/4/4X
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw
Type: Type 2 Grounding Male Non-NEMA Portable Standard Watertight, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Color: Black/Gray
Country of origin: PR
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585010601

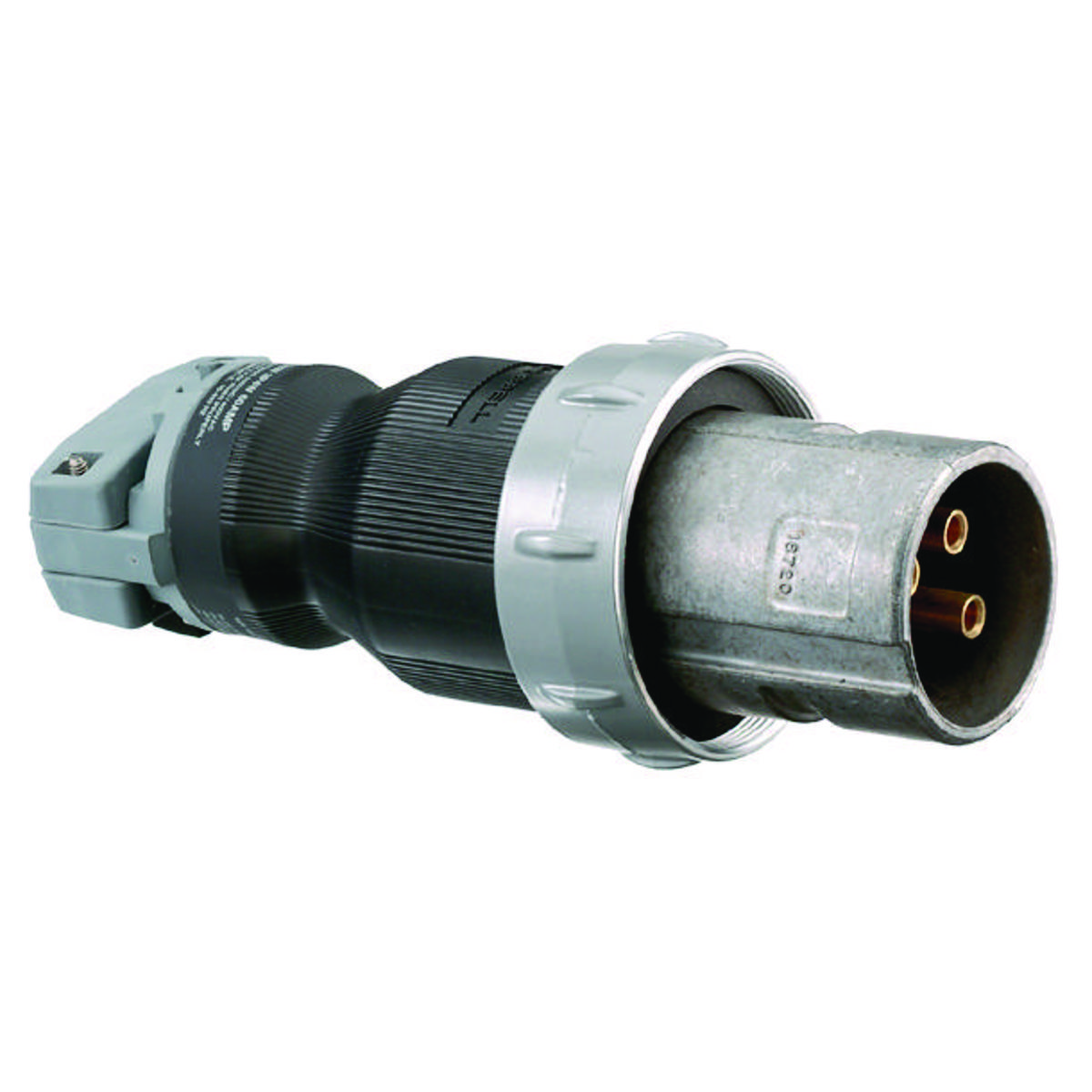

Hubbell HBL460PS2W Pin and Sleeve Plug
Wiring Device-Kellems Insulgrip Pin and Sleeve Plug, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 600 VAC/250 VDC, 60 A, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.7 in Dia x 9.6 in L
Additional Description: HUBW-HBL460PS2W PS, INS, PLUG, 3P4W, 60A 600V, S2
Catalog Description: Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 600V AC, 3-Pole 4-Wire Grounding Style 2, Terminal Screws, Gray and Black, Watertight
Item FeaturesHigh Ampacity Connections Applications
Item Features
Item FeaturesUL 498|UL 1686|UL 1682|UL 50|UL 1010|CSA C22.2 File No. 182.1/94/159
