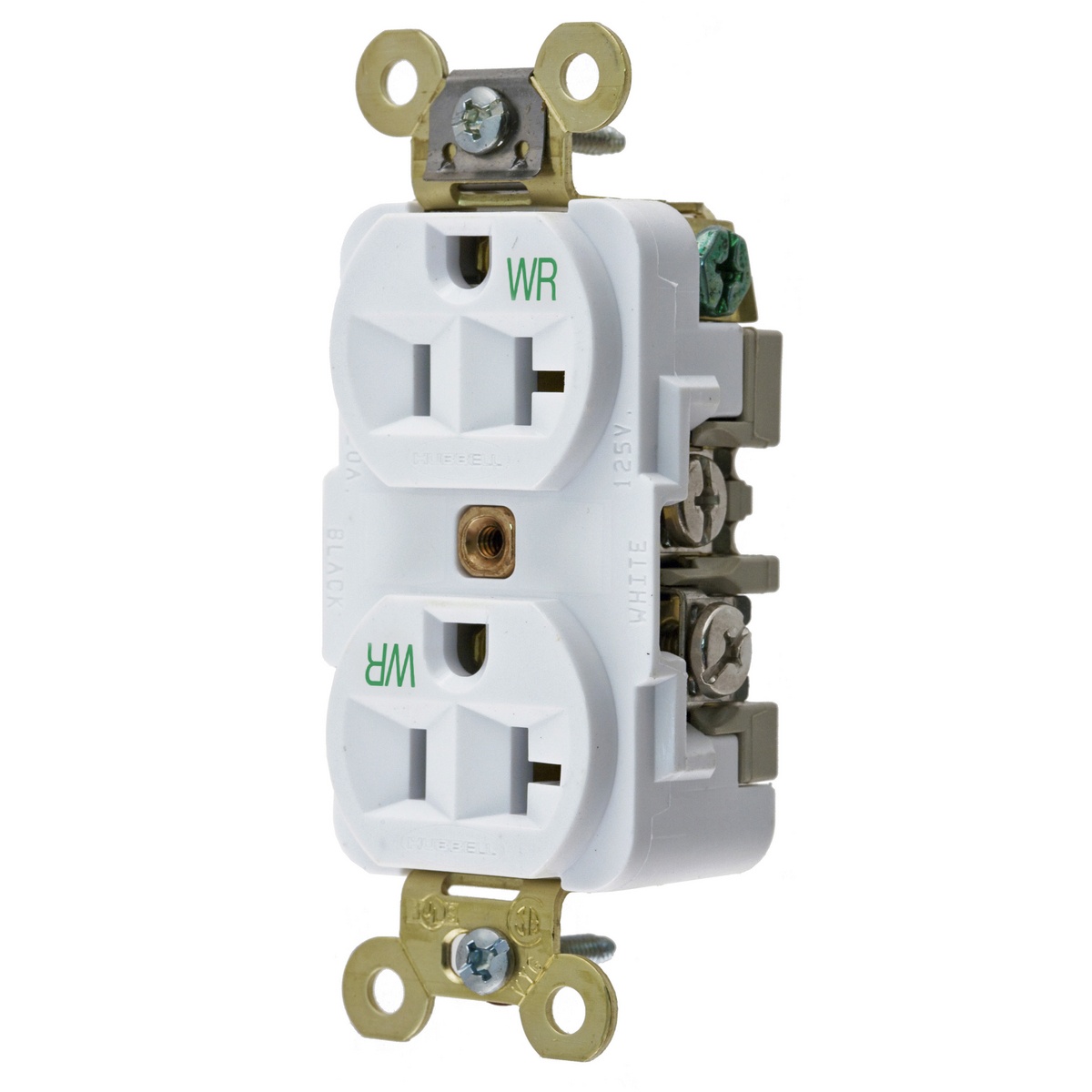

Hubbell HBL5362WWR Straight Blade Duplex Receptacle
Image Disclaimers Message
Hubbell HBL5362WWR Straight Blade Duplex Receptacle
Hubbell HBL5362WWR Straight Blade Duplex Receptacle
Part #:HBL5362WWR
SKU #: 2399000
Key Features
Part #:HBL5362WWR
SKU #: 2399000
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 1.65 in W x 1.19 in D
Horsepower: 1 hp
NEMA Rating: NEMA 5-20R
Number of Poles: 2
- Weather resistance complies with national electrical code requirements
- Finder groove face style
- One piece brass integral ground strap
- Deep body design with circuit inside diameter face
- Traditional face shape
- #10-32 silicon bronze terminal screw and ground screw
- Nylon top and reinforced PET base
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip and brass clamp
- Steel, zinc plated mounting screws
- Withstand 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94V-2 top, UL 94V-0 base flammability
- Weather-resistant
Hubbell HBL5362WWR Straight Blade Duplex Receptacle
Wiring Device-Kellems Straight Blade Duplex Receptacle, Grounding Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Screw Terminal, White, 1.65 in W x 1.19 in D Dimensions
Additional Description: HUBW-HBL5362WWR WR RCPT, DUP, SB, HD SPEC, 20A 125V, WH
Catalog Description: Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White, Single Pack.
