Brand: Hubbell

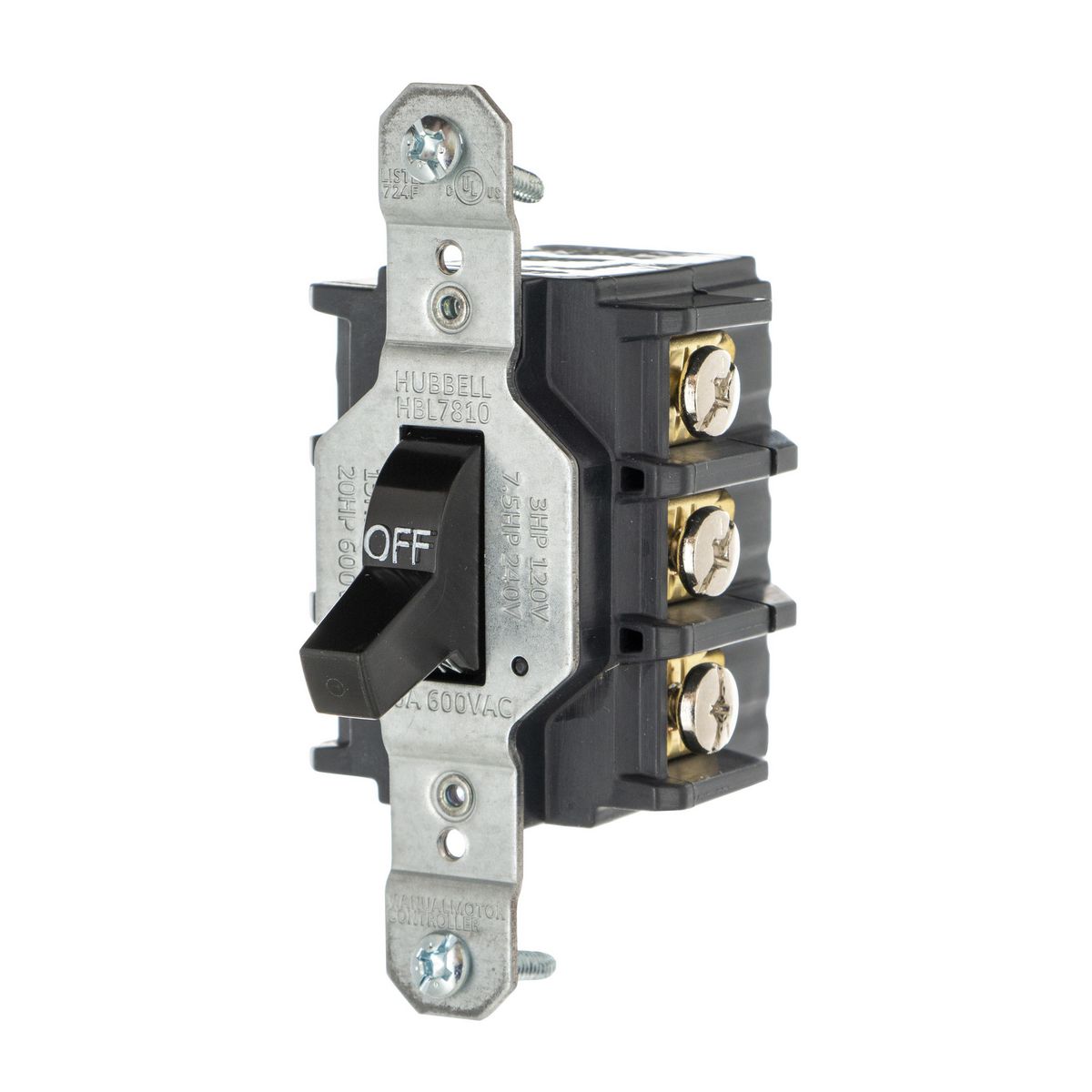

Hubbell HBL7810 HBL Motor Disconnect
Part Number # HBL7810
SKU # 2408442
$112.79 / Each
Hubbell HBL7810 Key Features
Brand: Hubbell
Part Number # HBL7810
SKU #2408442
Actuator: Standard Toggle
Amperage Rating: 30 A
Connection: Back and Side Wired
Environmental Conditions: -40 to 75 deg C Operating Temperature
Mounting: Screw
Number of Poles: 3
Operating Cycles: 10000 Cycles
Power Rating: 18000 W
Series: HBL
Type: Motor Disconnect, Back & Side Wire
Voltage Rating: 600 V
Color: Black
Country of origin: CN
Material: Stainless Steel
Manufacturer Name: Hubbell
UNSPSC: 39121521
UPC: 00783585680507
$112.79 / Each
- Wiring Device-Kellems, HBL7810, Switches and Lighting Control, Motor Disconnect, Back & Side Wire, Series: HBL, 600 V, 30 A, 18000 W Power, 3 Pole, Standard Toggle Actuator, Back and Side Wired Connection, Screw Mounting, 10000 Cycles Operating Cycles, Stainless Steel, Black, Environmental Conditions: -40 to 75 deg C Operating Temperature
HBL7810 Application
For Close Wall ApplicationsHBL7810 Item Features
- Thermoset body provides high resistance to electrical arc tracking
- Strong ON/OFF action with quick-make, slow break operation
- Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
- Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL7810 Standards
CSA-C22.2 No.14|Industrial Control File LR-46186|UL 508|Industrial Control File E70402SKU #2408442Part Number #HBL7810UNSPSC39121521UPC00783585680507
