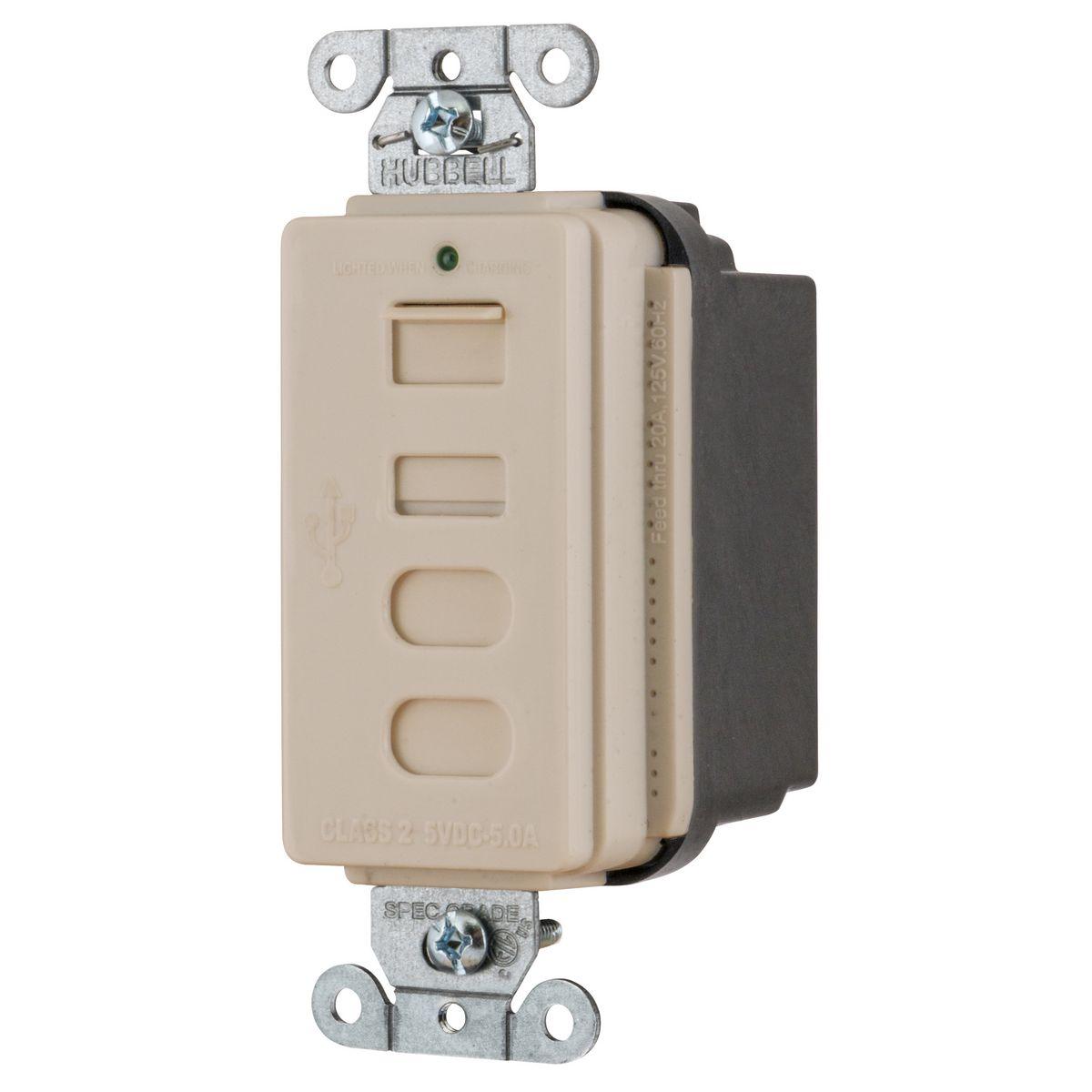

Hubbell USB4ACLA Receptacle and USB Charger
Image Disclaimers Message
Hubbell USB4ACLA Receptacle and USB Charger
Hubbell USB4ACLA Receptacle and USB Charger
Part #:USB4ACLA
SKU #: 2372216
Key Features
Part #:USB4ACLA
SKU #: 2372216
Brand: Hubbell
Electrical Ratings: 125 V, 15 A, 125 VAC, 15 A
Environmental Conditions: -40 to 75 deg C
Insulation: Class 2.0
Mounting: Threaded
Number of Poles: 2
- Four USB ports 5 A, 2 Type A and 2 Type-C USB, 5V DC, class 2.0
- Fast charge enabled modulates up to 9 V
- Switch activated port door
- when open enables power
- when closed, all power is switched off, for a zero no-load draw
- Green LED indicator to show USB power available
Hubbell USB4ACLA Receptacle and USB Charger
Wiring Device-Kellems Style Line Receptacle and USB Charger, Decorator Duplex Grounding Non-NEMA Standard Tamper-Resistant, 125 V, 15 A Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 4 USB Quantity, 5 A, 5 VDC USB, Class 2.0 Insulation, Threaded Mounting, Hospital/Standard Grade, Wiring Method: Grounding, Thermoplastic, Light Almond, Environmental Conditions: -40 to 75 deg C
Additional Description: HUBW-USB4ACLA USB CHRGR 4 PORT 5AMP 5 TYPE AC, LA
Catalog Description: This device will communicate with mobile devices to determine what voltage is required and provide 5V or 9V, based on the make and model. The two USB Type A ports offer high power at 5 volts.
