Brand: Hubbell

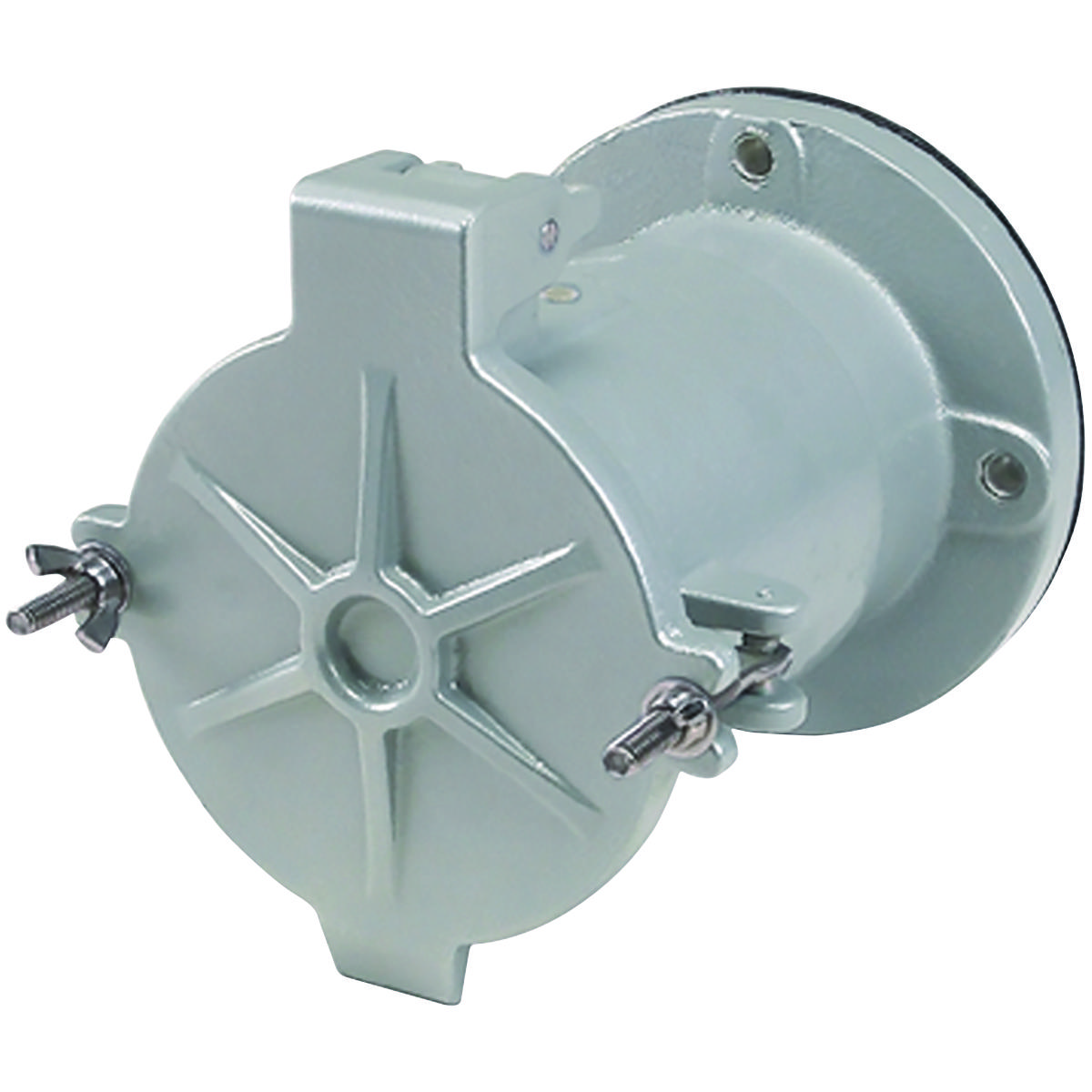

Hubbell VR20422 VersaMate Pin and Sleeve Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell VR20422 VersaMate Pin and Sleeve Receptacle
Brand: Hubbell
Hubbell VR20422 VersaMate Pin and Sleeve Receptacle
Part #:VR20422
SKU #: 2222637
$2159.26/EA
Key Features
Part #:VR20422
SKU #: 2222637
Brand: Hubbell
Amperage Rating: 200, 200 A
Dimensions: 7.87 in L x 6.83 in W x 7.59 in H
Frequency Rating: 50 to 400, 50 to 400 Hz
NEMA Rating: NEMA 3/4/4X
Number of Poles: 4
$2159.26/EA
- Exclusive patented Breech Lock cap serves as either flip lid or screw cover
- VersaMate receptacles use the same increased safety terminals and funnel design as VersaMate plugs
- Receptacle is NEMA 3R with lid snapped shut or NEMA 4X with lid turned shut or when VersaMate plug is inserted and locking ring tightened
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact
Specifications
Brand: Hubbell
Amperage Rating: 200, 200 A
Dimensions: 7.87 in L x 6.83 in W x 7.59 in H
Frequency Rating: 50 to 400, 50 to 400 Hz
NEMA Rating: NEMA 3/4/4X
Number of Poles: 4
Number of Wires: 3
Series: VR Series
Terminal Type: Allen Screw
Type: Heavy Duty Style II
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Color: Gray
Country of origin: US
Material: Copper Free Aluminum
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783936833149
Hubbell VR20422 VersaMate Pin and Sleeve Receptacle
Killark VersaMate Pin and Sleeve Receptacle, Heavy Duty Style II, Series: VR Series, 600 VAC, 250 VDC, 200 A, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/4/4X NEMA Rating, Industrial Grade, Allen Screw Terminal, Copper Free Aluminum, Gray, 7.87 in L x 6.83 in W x 7.59 in H Dimensions
Additional Description: KILL-VR20422 VERSAMATE 200A RECPT 3W4P
Catalog Description: 200A 3 Pole 4 Wire Receptacle Assembly
Item FeaturesIndustrial, Pulp, Paper Mill, Electrical Power Plant, Petrochemical Plant, Wastewater Treatment, Marine, Dock, Ports, Construction Site, Brewery, Refinery, Chemical Plant, Grain Facility, Textile Manufacturing, Food Processing Facility, Indoor, Outdoor, Wet, Cold, Hosedown, Hazardous and Corrosive Areas
Item Features
Item FeaturesUL File No. E10757|UL File No. E213215|CSA File No. LR111846
