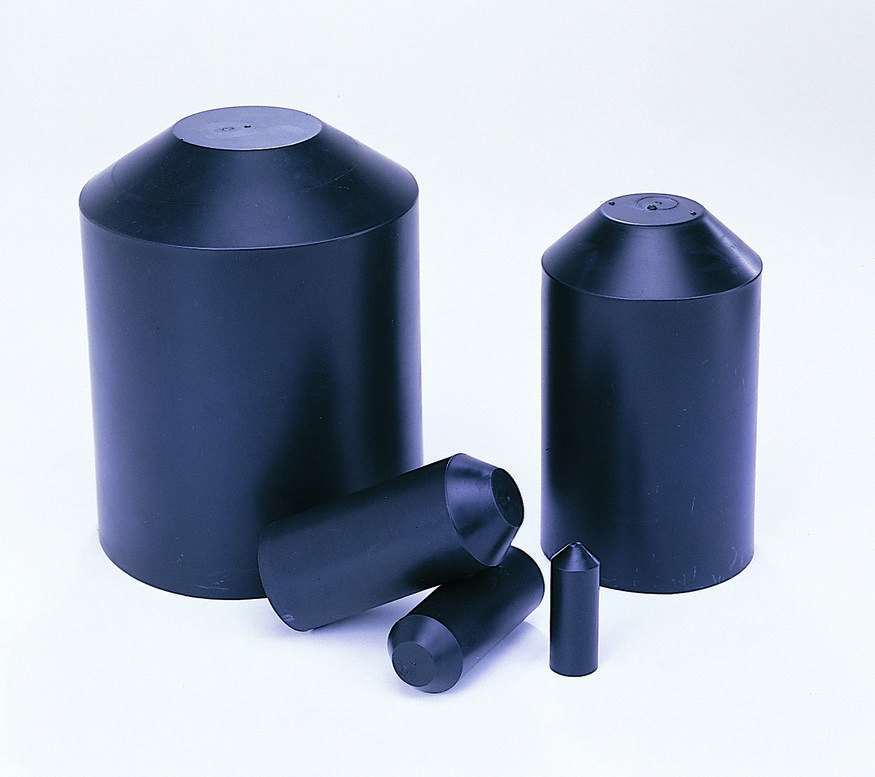

IDEAL 46-381 Thermo-Shrink Heat Shrinkable Tubing End Cap
Part Number # 46-381
SKU # 2201511
IDEAL 46-381 Key Features
IDEAL 46-381 Thermo-Shrink Heat Shrinkable Tubing End Cap
Brand: IDEAL
Part Number: 46-381
IDEAL Thermo-Shrink Heat Shrinkable Tubing End Cap, Medium Wall, 600/1000 VAC, 0.55 in ID Expanded, 0.18 in ID Recovered, -55 to 110 deg C, 3:1 Shrink Ratio, 3 in Length, Cross Linked Polyolefin, Black, 0.079 in THK Dimensions
Additional Description: IDL -46-381 Heat Shrinkable Tube,Ideal,Thermo-Shrink,Medium-Wal l Heat Shrink TUBE,IDEAL,THERMO-SHRINK,MEDIUM-WAL L HEAT SHRINK
Catalog Description: IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Medium-Wall Heat Shrink, Thickness: 079 IN, Length: 3 (End Cap) IN, Volume Resistivity: 1014 OHM.CM For IEC 93, Dielectric Strength: Less Than 15 KV/MM IEC 243, Continuous Operating Temperature: -55 DEG CC To 110 DEG C IEC 216, Cable Range: 8 - 1 AWG, Nominal Recoveredi.d. (max.): 0.180 IN, Expanded I.d. (min.): 0.550, Elongation At Break: ASTM D 638, Less Than 400%, Elongation Of Break After Aging: Less Than 300 PCT 150 DEG C, 168 HR
46-381 Item Features
- Adhesive liner provides complete environmental protection and insulation
- Provide watertight seal, resist corrosion, oils and chemicals
- Creates a watertight seal to protect ends of power and control cords
- Protects against oxidation, ozone, UV radiation and more
- Fits easily over end of cable protect power cables up to 1000 V and telecommunication cable
- Recommended for both open air and underground power distribution cables with PVC, lead or XLPE sheaths
- Thermally stabilized cross linked polyolefin, coated with specially designed hot melt adhesive
- Protect cable ends during storage
- Shrink temperature of 120 deg C
- Rated for 600/1000 VAC, 90 deg C continuous use
- Cable range 8 to 1 AWG
- Elongation of break after aging less than 300 PCT 150 deg C, 168 HR
46-381 Standards
ARRA Compliant|Buy American Act Compliant|RoHS CompliantSKU #2201511Part Number #46-381UNSPSC39121723UPC00783250463817
