L1430-P

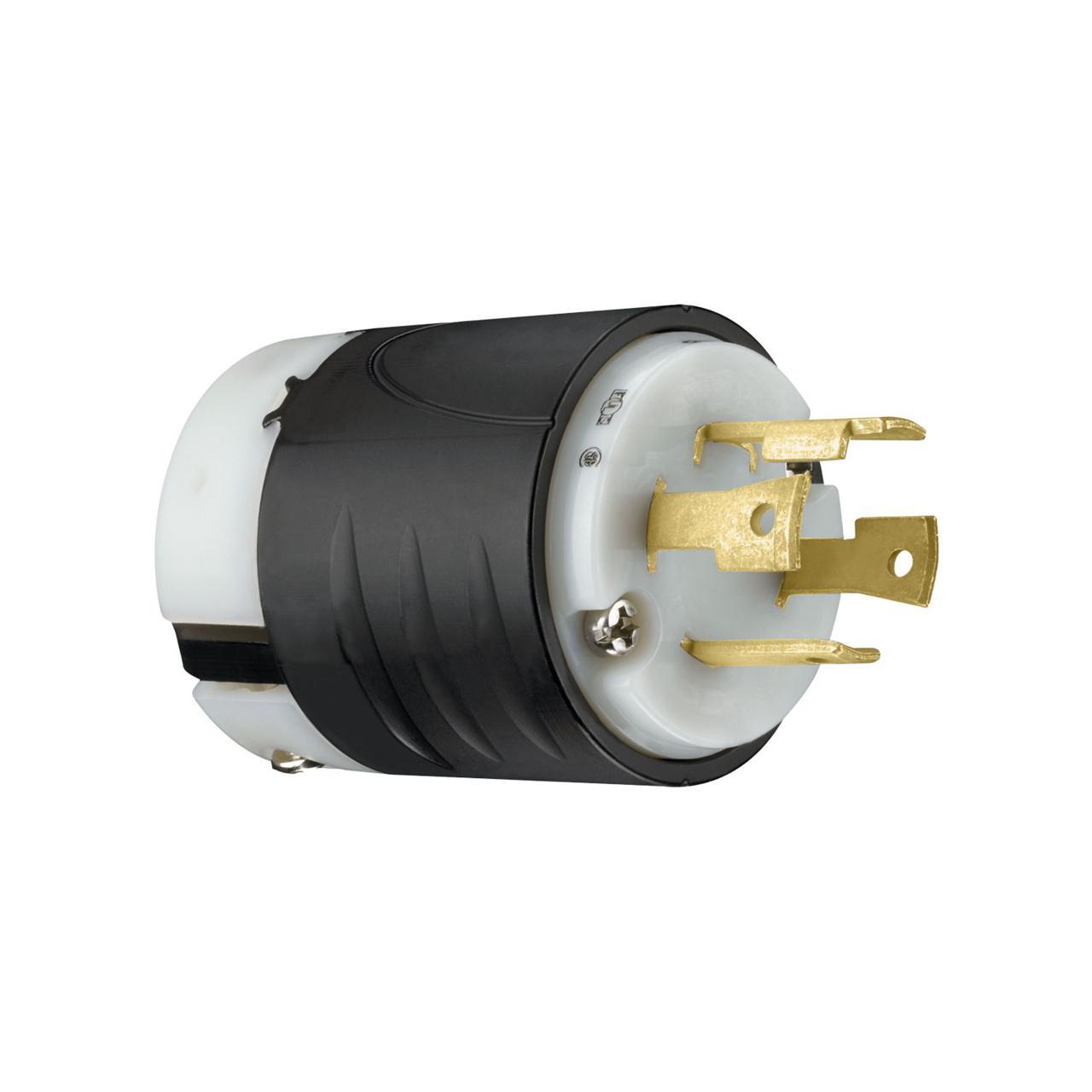

Legrand-Pass & Seymour L1430-P Turnlok Locking Plug
Part Number # L1430-P
SKU # 2371982
Legrand-Pass & Seymour L1430-P Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | L1430-P |
| SKU #: | 2371982 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.385 to 1.15, 0.385 to 1.15 in |
| Dimensions: | 2.2 in Dia x 3.8 in L |
| NEMA Rating: | NEMA L14-30P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121402 |
| UPC: | 00785007143041 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Legrand-Pass & Seymour L1430-P Turnlok Locking Plug
Brand: Legrand-Pass & Seymour
Part Number: L1430-P
Pass & Seymour Turnlok Locking Plug, 125/250 VAC, 30 A, 2 Pole, 3 Wires, NEMA L14-30P, Industrial Grade, 0.385 to 1.15 in Cord Dia, -40 to 75 deg C, Nylon, Black/White, 2.2 in Dia x 3.8 in L
Additional Description: PS -L1430-P TURNLOK PLUG 4W 30A 125/250V B&W
Catalog Description: 3-Pole, 4-Wire, 30A, 125V/250V, NEMA L14-30P, IP20 suitability, cable compatibility 0.225-in to 1.15-in diameter. Used to plug/unplug a load consuming a maximum of 30A under a voltage of 250V between the two hot wires and 125V between the hot and the neutral wires to a connection to an electric power supply while protecting the user from direct contact with live parts for 20 years.
L1430-P Item Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact- and corrosion-resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New-design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber
L1430-P Standards
CSA Certified|Federal Specificationified|UL 498SKU #2371982Part Number #L1430-PUNSPSC39121402UPC00785007143041
