Brand: Schneider Electric

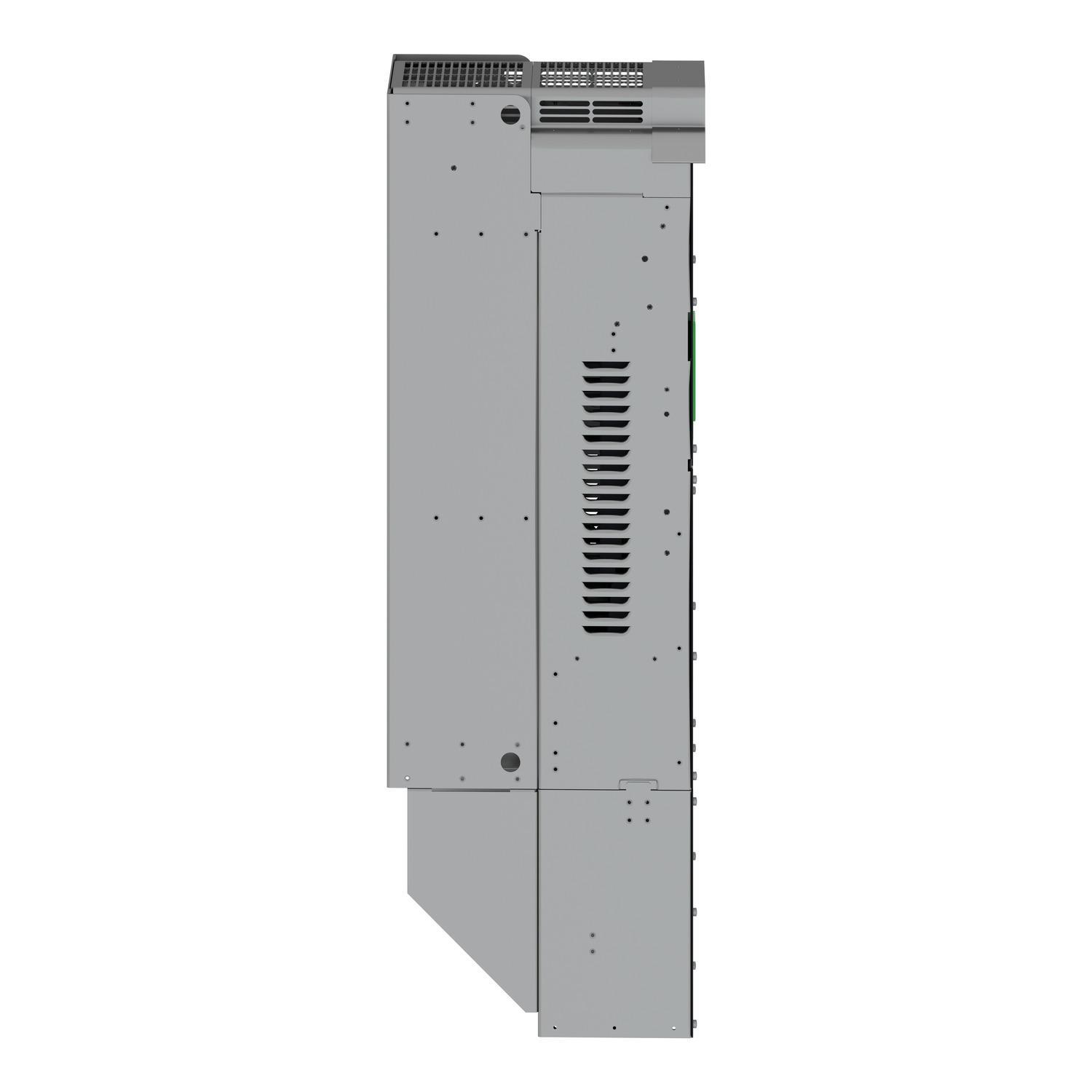

Schneider Electric ATV630C11N4 Altivar Process 630 Ac Variable Speed Drive
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric ATV630C11N4 Altivar Process 630 Ac Variable Speed Drive
Brand: Schneider Electric
Schneider Electric ATV630C11N4 Altivar Process 630 Ac Variable Speed Drive
Part #:ATV630C11N4
SKU #: 2326605
$15929.36/EA
Key Features
Part #:ATV630C11N4
SKU #: 2326605
Brand: Schneider Electric
Amperage Rating: 143/170/165/201, 143/170/165/201 A
Display Type: LED/Remote Graphic
Enclosure Type: NEMA 1/IP00/IP20/IP21
Horsepower: 125 hp, 150 hp
Type: 3-Phase Type 1 Standard
$15929.36/EA
- Accurate measurement for monitoring system energy consumption (deviation <5%)
- Installation energy drift detection
- Embedded Ethernet with direct access to system configuration and monitoring
- Integration of actual pump curves to optimize the system operating point
- Optimized pump monitoring based on actual operating point
- Sensorless estimated flow rate
- Measurements expressed in working units
- Limitation of overvoltage at the motor terminals
- Contextual access to technical documentation through dynamic QR code
- Continuous and historical real time measurements with customizable dashboards
- Predictive and preventive maintenance tracking functions (e.g. - temperatures with PT100/1000 probe, fan monitoring)
- 150 hp at normal duty, 125 hp at heavy duty horsepower rating
- 201 A at 380 VAC normal duty, 165 A at 480 VAC normal duty, 170 A at 380 VAC heavy duty, 143 A at 480 VAC heavy duty amperage rating
- 16 preset speeds
- STO (safe torque off) SIL 3
- 0.5 to 1.5 sq-mm removable screw terminals, 20 to 16 AWG control, 2 x 50 to 3 x 120 sq-mm screw terminal, 2 x 2/0 AWG to 2 x 300 kcmil line side, 2 x 50 to 3 x 120 sq-mm screw terminal, 2 x 2/0 AWG to 2 x 300 kcmil motor
- Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 VDC +/- 5 % <= 10 mA overload and short circuit protection, external supply for digital inputs 24 VDC 19 to 30 V <= 1.25 mA overload and short circuit protection, internal supply for digital inputs and STO 24 VDC 21 to 27 V <= 200 mA overload and short circuit protection
- Optimized torque mode, constant torque standard, variable torque standard, forced convection cooling
- Safe torque off motor, motor phase break motor, Safe torque off drive, overheating drive, short circuit protection drive, motor phase break drive, overspeed drive, break on the control circuit drive, overvoltage on the DC bus drive, overload of output voltage drive, line supply overvoltage drive, line supply phase loss drive, line supply undervoltage drive, overcurrent between output phases and earth drive, thermal protection motor, thermal protection drive
- https://www.youtube.com/embed/VP1JRhNX4Mg
Specifications
Brand: Schneider Electric
Amperage Rating: 143/170/165/201, 143/170/165/201 A
Display Type: LED/Remote Graphic
Enclosure Type: NEMA 1/IP00/IP20/IP21
Horsepower: 125 hp, 150 hp
Type: 3-Phase Type 1 Standard
Voltage Rating: 460, 460 VAC
Country of origin: IN, US
Depth: 15.35, 15.35 in
Height: 33.54, 33.54 in
Mounting type: Wall
Width: 12.6, 12.6 in
Manufacturer Name: Schneider Electric
UNSPSC: 39122001
UPC: 00785901638148
Schneider Electric ATV630C11N4 Altivar Process 630 Ac Variable Speed Drive
Schneider Electric Altivar Process 630 AC Variable Speed Drive, 3-Phase Type 1 Standard, 460 VAC, 143/170/165/201 A, 125 hp, 150 hp, 12.6 in Width, 15.35 in Depth, 33.54 in Height, NEMA 1/IP00/IP20/IP21 Enclosure, LED/Remote Graphic Display, Wall Mounting
Additional Description: SQD -ATV630C11N4 (N) ATV630 IP00 110KW 400V - 480 400V/480 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: [TAA, BABA, BAA_COTS] variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
Item FeaturesWater and Wastewater, Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Process and Utilities, Asynchronous and Synchronous Motors Applications
Item Features
Item FeaturesREACH Compliant|Green Premium|WEEE Compliant|EN/IEC 61800-3|EN/IEC 61800-3 Environment 1 Category C2|EN/IEC 61800-3 Environment 2 Category C3|UL 508C|EN/IEC 61800-5-1|IEC 61000-3-12|IEC 60721-3|IEC 61508|IEC 13849-1|SEMI F47-0706|ATEX INERIS|ATEX Zone 2/22|DNV-GL|CE Certified|CSA Certified|TUV Certified|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
