Brand: Schneider Electric
ATV930U55M3

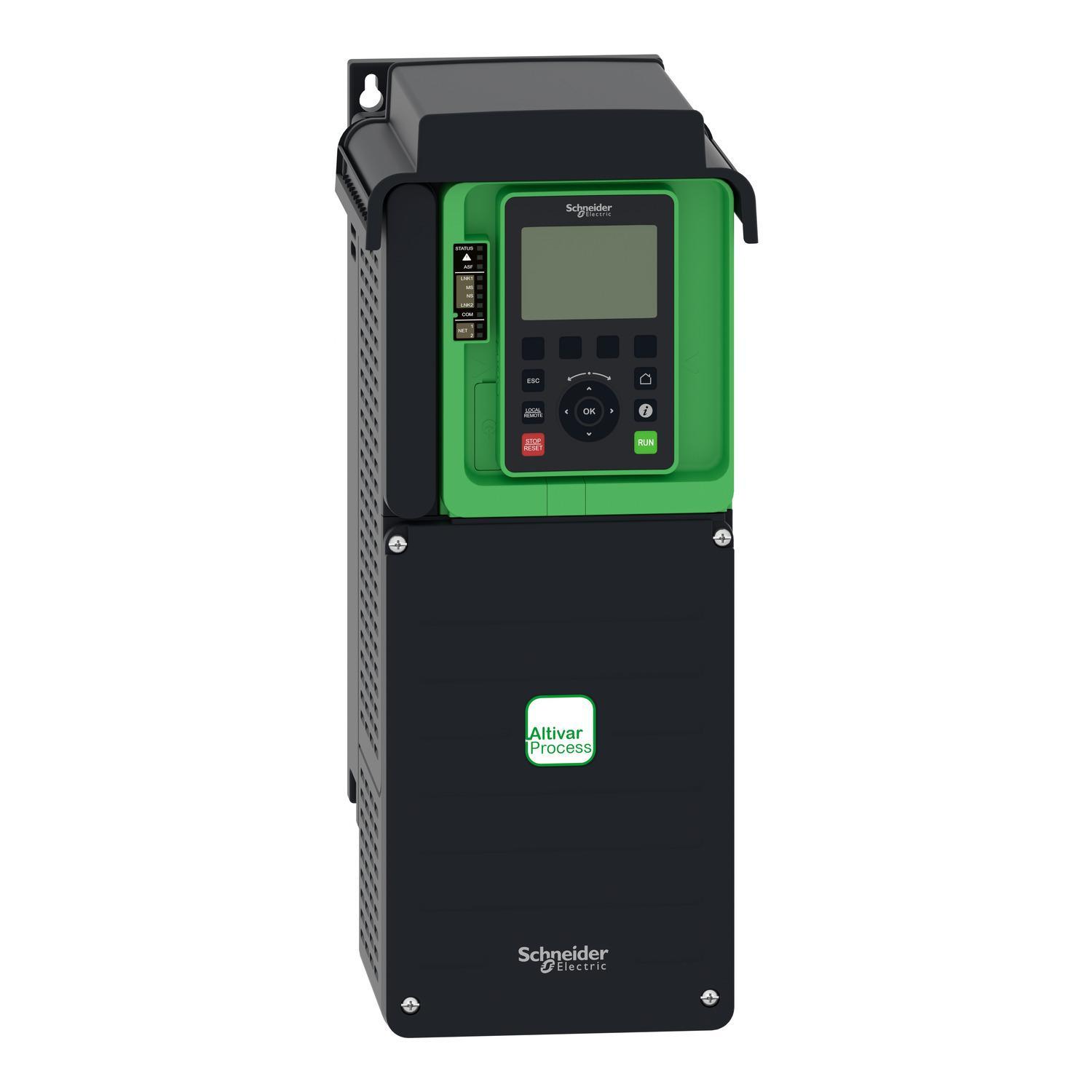

Schneider Electric ATV930U55M3 Ac Variable Speed Drive
Part Number # ATV930U55M3
SKU # 2345486
$2909.27 / Each
Schneider Electric ATV930U55M3 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATV930U55M3 |
| SKU #: | 2345486 |
| Amperage Rating: | 13/15.1/17.1/20.2, 13/15.1/17.1/20.2 A |
| Display Type: | Graphic Display Terminal |
| Enclosure Type: | NEMA 1/IP20/IP21 |
| Horsepower: | 5 hp, 7-1/2 hp |
| Series: | Altivar Process 930, Altivar™ Process 930 |
| Type: | 3-Phase Standard |
| Country of origin: | ID |
| Depth: | 9.29, 9.29 in |
| Height: | 16.1, 16.1 in |
| Mounting type: | Wall |
| Width: | 6.73, 6.73 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122001 |
| UPC: | 00785901058847 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2909.27 / Each
Quantity:
- Schneider Electric Square D AC Variable Speed Drive, 3-Phase Standard, Series: Altivar Process 930, 200/240 V AC, 13/15.1/17.1/20.2 A, 5 hp, 7-1/2 hp, 6.73 in Width, 9.29 in Depth, 16.1 in Height, NEMA 1/IP20/IP21 Enclosure, Graphic Display Terminal Display, Wall Mounting
ATV930U55M3 Application
Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Water and Wastewater, Asynchronous and Synchronous, Special Motors ApplicationsATV930U55M3 Item Features
- Ethernet/IP serial Modbus TCP communication
- Performance on motor control with an overload torque up to 1.8 Tn in an open or closed loop
- Asynchronous, synchronous, special motors: all efficiency classes, brand independent, permanent magnet motors, torque motors, conical sliding rotor, reluctance motor
- Integrated Ethernet/IP and Modbus TCP dual port, cybersecurity (Achilles level 2)
- Smart integration in PlantStruxure and Foxboro Evo process automation systems
- Optimized energy efficiency, detection of energy consumption drift of the installation
- Adaptation to the process by dedicated functions with modular design
- Embedded safety functions STO SIL3
- Master/slave and load sharing with drive-to-drive capability:
- Torque sharing on rigid coupling
- Torque sharing on elastic coupling
- Contextual access to technical documentation through dynamic QR code
- Continuous and historical real-time measurements with customizable dashboards
- Predictive maintenance
- 20.2 A at 200 VAC normal duty, 17.1 A at 240 VAC normal duty, 15.1 A at 200 VAC heavy duty, 13 A at 240 VAC heavy duty amperage rating
- 7-1/2 hp at normal duty, 5 hp at heavy duty horsepower rating
ATV930U55M3 Standards
REACH Compliant|Green Premium|WEEE Compliant|UL 508C|EN/IEC 61800-3|EN/IEC 61800-3 Environment 1 Category C2|EN/IEC 61800-3 Environment 2 Category C3|EN/IEC 61800-5-1|IEC 61000-3-12|IEC 60721-3|IEC 61508|IEC 13849-1|CSA Certified|TUV Certified|UL Listed|CE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2345486Part Number #ATV930U55M3UNSPSC39122001UPC00785901058847
