Part Number # LC1F1000
SKU # 2390320
LC1F1000

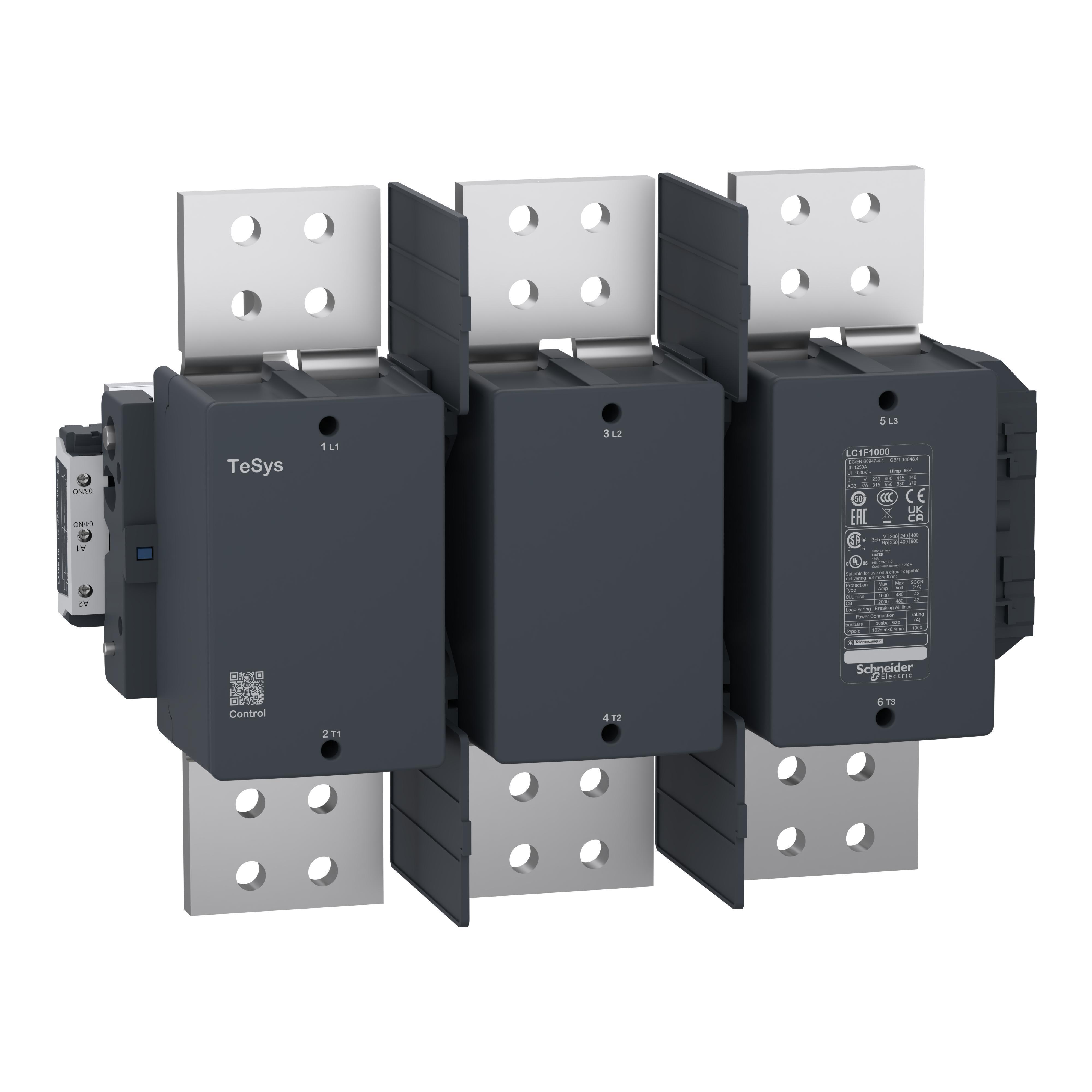

Schneider Electric LC1F1000, Contactor, LC1F Series, 110 to 500 VAC,110 to 440 VDC Coil, 1000 to 1250 A Maximum Load Current, 3 Pole, 40 to 400 Hz Frequency, 200 W Wattage, 3NO Contact Configuration, 1250 A Contact, Power Factor: 1600 to 2400 , Screw clamp Connection, 137 in H x 17.24 in W x 9.39 in D Size, Screw Clamp Terminal, IP20 Enclosure, 600 cycles Operating Cycles, 23 to 104 deg F Operating, Plate Mounting, 13.07 in H x 17.24 in W x 9.39 in D Dimensions
Part Number # LC1F1000
SKU # 2390320
Schneider Electric LC1F1000 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1F1000 |
| SKU #: | 2390320 |
| Coil Voltage: | 110 to 500 V AC,110 to 440 V DC, 110 to 500 VAC,110 to 440 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 1250 A |
| Dimensions: | 13.07 in H x 17.24 in W x 9.39 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 40 to 400 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 600 Cycles |
| Operating Temperature: | 23 to 104 deg F |
| Series: | LC1F Series |
| Size: | 137 in H x 17.24 in W x 9.39 in D |
| Terminal Type: | Screw Clamp |
| Type: | Contactor |
| Wattage: | 200 W |
| Connection type: | Screw Clamp |
| Country of origin: | CN |
| Mounting type: | Plate |
| Power factor: | 1600 to 2400 VA |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606485432120 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric LC1F1000, Contactor, LC1F Series, 110 to 500 VAC,110 to 440 VDC Coil, 1000 to 1250 A Maximum Load Current, 3 Pole, 40 to 400 Hz Frequency, 200 W Wattage, 3NO Contact Configuration, 1250 A Contact, Power Factor: 1600 to 2400 , Screw clamp Connection, 137 in H x 17.24 in W x 9.39 in D Size, Screw Clamp Terminal, IP20 Enclosure, 600 cycles Operating Cycles, 23 to 104 deg F Operating, Plate Mounting, 13.07 in H x 17.24 in W x 9.39 in D Dimensions
Brand: Schneider Electric
Part Number: LC1F1000
Schneider Electric LC1F1000, Contactor, LC1F Series, 110 to 500 VAC,110 to 440 VDC Coil, 1000 to 1250 A Maximum Load Current, 3 Pole, 40 to 400 Hz Frequency, 200 W Wattage, 3NO Contact Configuration, 1250 A Contact, Power Factor: 1600 to 2400 , Screw clamp Connection, 137 in H x 17.24 in W x 9.39 in D Size, Screw Clamp Terminal, IP20 Enclosure, 600 cycles Operating Cycles, 23 to 104 deg F Operating, Plate Mounting, 13.07 in H x 17.24 in W x 9.39 in D Dimensions
Additional Description: SQD -LC1F1000 (N) TESYS F CONTACTOR 1000 W/O COIL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: contactor body without coil, TeSys F, 3P(3NO), AC-3, <=440V 1000A, with coil LX1/LX9, 110…500V AC 40/400Hz, LX4 - 110...440V DC
LC1F1000 Application
Resistive load,Motor controlLC1F1000 Item Features
- The TeSys F contactors and overload relays offer proven performance for resistive loads or large motor starting applications such as fans, crushers, pumps, compressors and overhead cranes
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Solid State Overload Relays
- They are ambient compensated and include single phase sensitivity for phase unbalance and phase loss protection
- They also include the following features Isolated N.C. trip contact, N.O. alarm contact
- Manual reset button
- Rotary dial for adjustable current settings with tamper resistant window
- Test trip button
- Momentary stop button and trip indicator
- Resistive loadMotor control contactor application
- 8 kV uimp rated impulse withstand voltage
- III overvoltage category
- 7500 A 104 deg F (40 deg C) - 30 s5500 A 104 deg F (40 deg C) - 1 min4200 A 104 deg F (40 deg C) - 3 min3000 A 104 deg F (40 deg C) - 10 min10000 A 104 deg F (40 deg C) - 10 s icw rated short-time withstand current
- 0.1 mOhm - Ith 1250 A 50 Hz average impedance
- 1000 V IEC 60947-4-1 1500 V VDE 0110 group C ui rated insulation voltage
- 40 to 75 ms closing with LX1/LX9 coil100 to 170 ms opening with LX1/LX9 coil50 to 60 ms closing with LX4 coil45 to 60 ms opening with LX4 coil operating time
- 0.5 Mcycles mechanical durability
- LC1F compatibility code
LC1F1000 Standards
CB;CSA;CCC;UKCA;EN 60947-4-1;IEC 60947-4-1;EN 60947-1;IEC 60947-1SKU #2390320Part Number #LC1F1000UNSPSC39121529UPC03606485432120
