TM5C24D12R

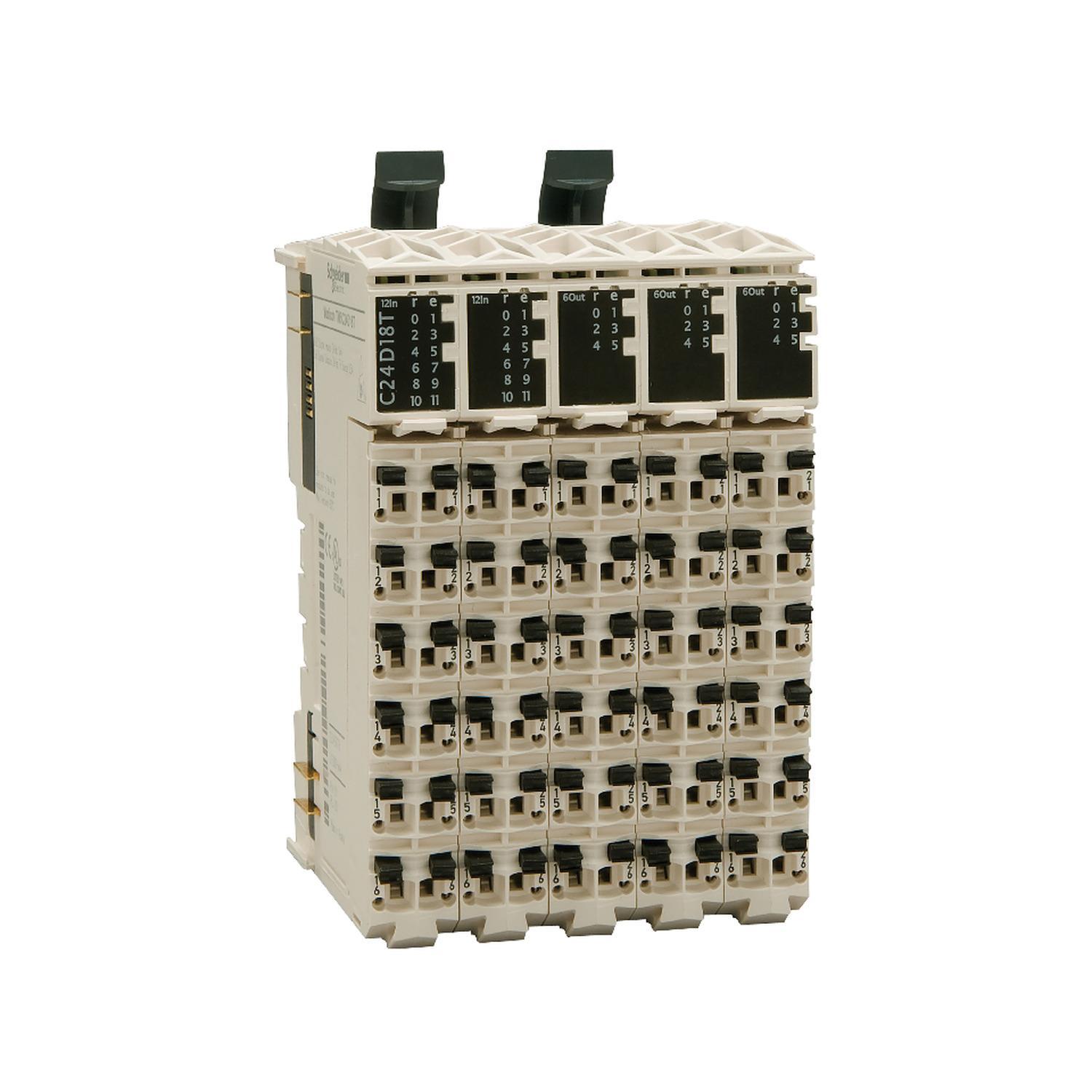

Schneider Electric TM5C24D12R Modicon Tm5 Compact I/O Expansion Block
Part Number # TM5C24D12R
SKU # 2240637
$710.58 / Each
Schneider Electric TM5C24D12R Key Features
Brand: | Schneider Electric |
---|---|
Part Number # : | TM5C24D12R |
SKU #: | 2240637 |
Amperage Rating: | 165, 165 mA |
Impedance: | 6.4, 6.4 kOhm |
Temperature Rating (Degrees F): | -10 to 50 deg C Vertical Installation/-10 to 60 deg C Horizontal Installation |
Terminal Type: | Spring |
Color: | White |
Country of origin: | AT |
Material: | Plastic |
Number of inputs: | 24 |
Number of outputs: | 12 |
Manufacturer Name: | Schneider Electric |
UNSPSC: | 32151703 |
UPC: | 00785901940111 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$710.58 / Each
Quantity:
- Schneider Electric Modicon TM5 Compact I/O Expansion Block, 24 V DC, 165 mA, <=4.3 W Power, 24 Inputs, 12 Outputs, 6.4 kOhm Impedance, Spring Terminal, -10 to 50 deg C Vertical Installation/-10 to 60 deg C Horizontal Installation, Plastic, White
TM5C24D12R Item Features
- Distributed I/Os via the CANopen interface module or local or remote expansion via the local TM5 expansion bus on Modicon M258 and Modicon LMC058 controllers (PLC and PAC)
- Wide range of I/O expansion modules - digital I/O, analog, expert, non-functioning dummy and remote I/O modules
- Embedded diagnostics for local and distant supervision
- Hot swapping of I/O modules
- Cabling simplicity - spring terminals, removable terminal blocks
- Fully compatible with SoMachine software
- Certified FDT/DTM technology for all compatible automation software systems (on CANopen)
- This IP20 modular I/O system provides a flexible and scalable configuration of expansions or distributed I/O islands by direct connection with the Modicon controllers (TM5 bus) or via CANopen bus/sercos bus for Modicon and PacDrive 3 controllers as well
- Characterized by easy cabling and maintenance, the modular IO system offers a wide variety of modules that enable the user to exactly meet their desired configuration for reducing costs and simplification
- The fully integrated safe communication over sercos for PacDrive 3 based configurations provides a complete safety solution with programmable safe logic controller and distributed I/Os
- Less cabling/installation efforts, better diagnostics and reduced machine down time with use of safe drives during maintenance operations are some of the main benefits
TM5C24D12R Standards
RoHS Compliant|REACH Compliant|CSA Certified|C-Tick.1 Certified|cULus Listed|GoST-R Certified|CSA C22.2 No. 142|IEC 61131-2|UL 508|CSA C22.2 No. 213|CE Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2240637Part Number #TM5C24D12RUNSPSC32151703UPC00785901940111
