TM5SPS1

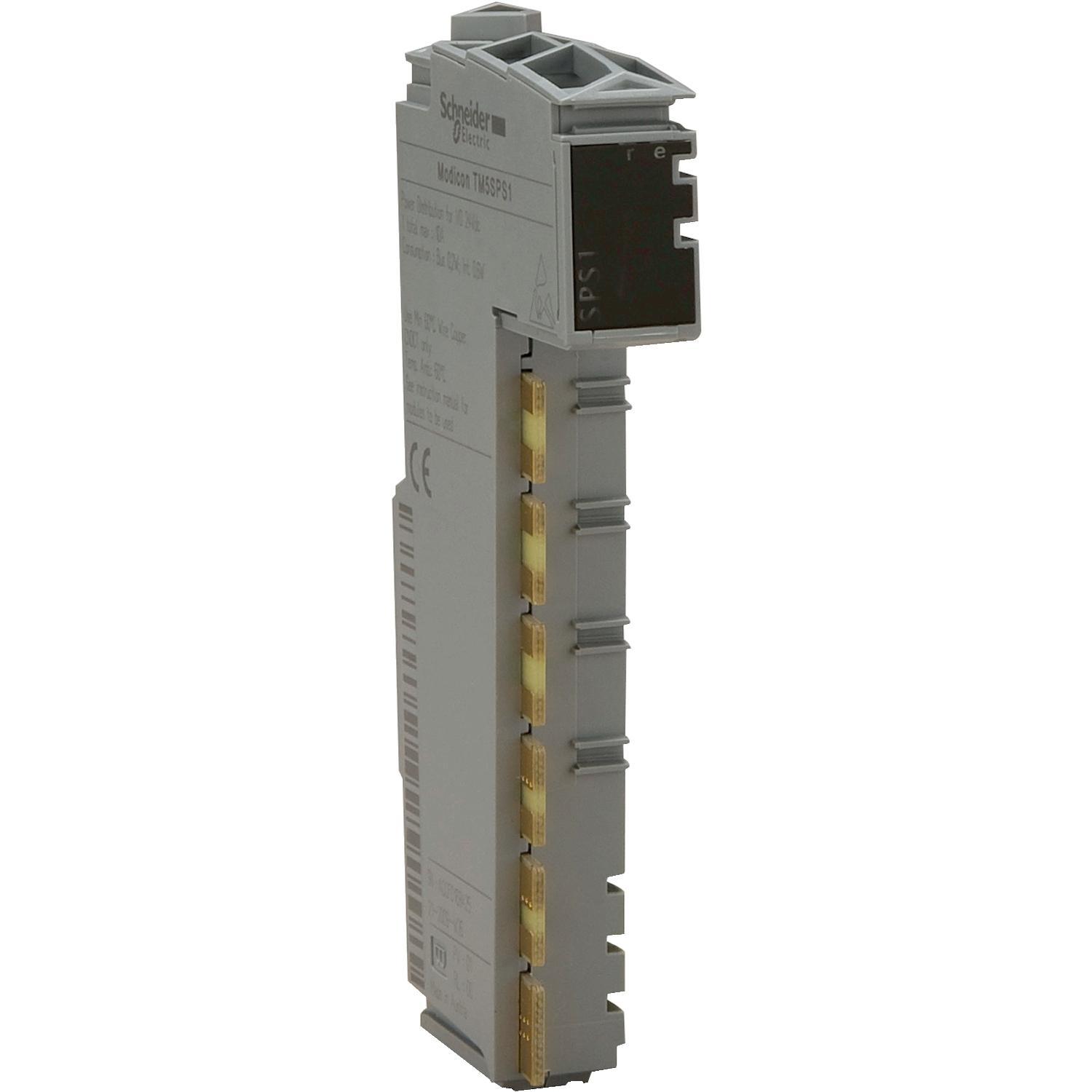

Schneider Electric TM5SPS1 Modicon Tm5 Power Distribution Module
Part Number # TM5SPS1
SKU # 2207540
$79.55 / Each
Schneider Electric TM5SPS1 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | TM5SPS1 |
| SKU #: | 2207540 |
| Dimensions: | 99 mm L x 12.5 mm W x 75 mm D |
| Input Voltage: | 24, 24 V DC, 24 VDC |
| Power Dissipation: | <=0.8, <=0.8 W |
| Specifications: | IP20, DIN Rail Mount |
| Temperature Rating (Degrees F): | -10 to 55 deg C without Horizontal Installation/-55 to 60 deg, with Derating Factor Horizontal Installation/-10 to 50 deg C Vertical Installation |
| Color: | Gray |
| Country of origin: | AT |
| Input current: | <=25, <=25 mA |
| Output current: | 10, 10 A |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151706 |
| UPC: | 00785901690450 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$79.55 / Each
Quantity:
- Schneider Electric Modicon TM5 Power Distribution Module, 24 V DC Input, <=25 mA Input Current, 10 A Output Current, <=0.8 W Power Dissipation, Specifications: IP20, DIN Rail Mount, -10 to 55 deg C without Horizontal Installation/-55 to 60 deg, with Derating Factor Horizontal Installation/-10 to 50 deg C Vertical Installation, Gray, 99 mm L x 12.5 mm W x 75 mm D Dimensions
TM5SPS1 Specifications
- Flexible and scalable I/O configuration distributed I/Os via the CANopen interface module or local or remote expansion via the local TM5 expansion bus on Modicon® M258 and Modicon® LMC058 controllers (PLC and PAC)
- Wide range of I/O expansion modules - digital I/O, analog, expert, non-functioning dummy and remote I/O modules
- Simplified maintenance and installation - embedded diagnostics for local and distant supervision
- Hot swapping of I/O modules
- Cabling simplicity - spring terminals, removable terminal blocks
- Save engineering time - fully compatible with SoMachine software
- Certified FDT/DTM technology for all compatible automation software systems (on CANopen)
- 10 A external fuse
TM5SPS1 Application
For use with Modicon LMC058, Modicon M258, motion controller and logic controllerTM5SPS1 Item Features
- Flexible and scalable I/O configuration distributed I/Os via the CANopen interface module or local or remote expansion via the local TM5 expansion bus on Modicon M258 and Modicon LMC058 controllers (PLC and PAC)
- Wide range of I/O expansion modules - digital I/O, analog, expert, non-functioning dummy and remote I/O modules
- Simplified maintenance and installation - embedded diagnostics for local and distant supervision
- Hot swapping of I/O modules
- Cabling simplicity - spring terminals, removable terminal blocks
- Save engineering time - fully compatible with SoMachine software
- Certified FDT/DTM technology for all compatible automation software systems (on CANopen)
- 10 A external fuse
TM5SPS1 Standards
RoHS Compliant|REACH Compliant|WEEE Compliant|CE Certified|CSA C22.2 File No. 142|C22.2 File No. 213|cULus Listed|C-Tick.1 Certified|EN/IEC 61000-4-6|GoST-R Certified|IEC 61131-2|REACH Compliant|UL 508|Green Premium|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2207540Part Number #TM5SPS1UNSPSC32151706UPC00785901690450
