Part Number # XB7ND25
SKU # 2242736
Image Disclaimers Message
XB7ND25

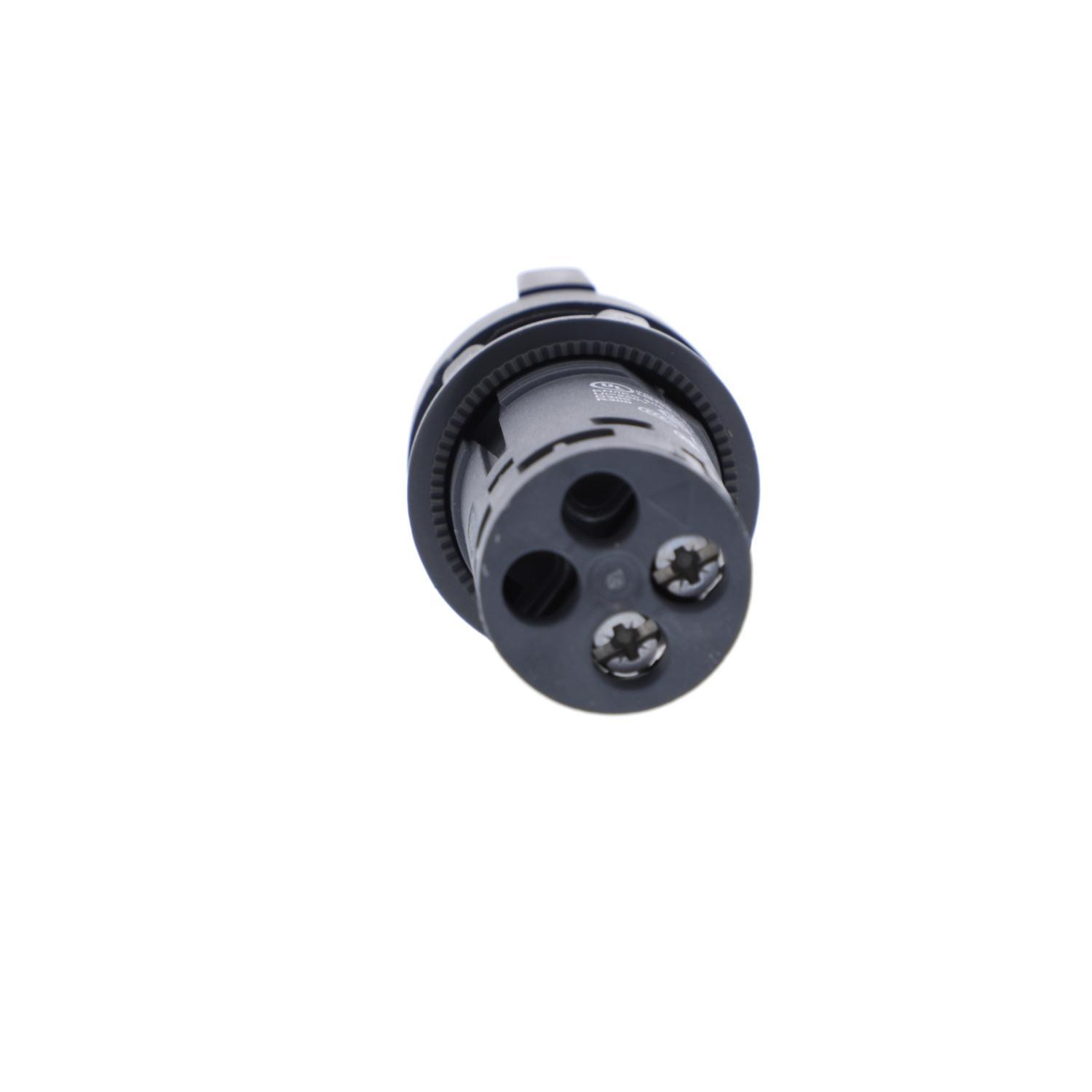

Schneider Electric XB7ND25 Harmony Non-Illuminated Selector Switch
Part Number # XB7ND25
SKU # 2242736
$26.93 / Each
Typical price:$34.00 / Each
Schneider Electric XB7ND25 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB7ND25 |
| SKU #: | 2242736 |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 0.6 A at 120 VAC, 0.3 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC, 0.6 A at 120 VAC, 0.3 A at 240 VAC/0.22 A at 125 VDC, 0.1 A at 250 VDC |
| Enclosure Type: | NEMA 3/12/IP20/IP65 |
| Number of Positions: | 2 |
| Operator Type: | Lever, Standard Handle |
| Series: | XB7 |
| Size: | 22, 22 mm |
| Terminal Type: | Screw Clamp |
| Throw: | 90, 90 deg |
| Type: | Corrosion-Resistant Dusttight/Oiltight/Watertight Monolithic, Monolithic |
| Color: | Black |
| Connection type: | Screw Clamp |
| Country of origin: | ID |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901198758 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.93 / Each
Typical price:$34.00 / Each
Quantity:
- Schneider Electric Harmony Square D Non-Illuminated Selector Switch, Monolithic, Series: XB7, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Maintained/Momentary/Stay Put Contact Mode, 0.6 A at 120 VAC, 0.3 A at 240 VAC/0.22 A at 125 VDC, 0.1 A at 250 VDC Contact, Lever Operator, 2 Positions, 90 deg Throw, Bezel/Housing: Plastic, Screw Clamp Terminal, NEMA 3/12/IP20/IP65 Enclosure, Black
XB7ND25 Application
Machine Manufacturers, Chemical Industry, Paper Mill, Energy Distribution Panel Builders, Food and Beverage and Car Washes ApplicationsXB7ND25 Item Features
- It has 1 x NO + 1 x NC contacts and a double insulated plastic bezel
XB7ND25 Standards
CCC Certified|CCN NKCR|CE Marked|CSA C22.2 No. 14 Class 321103|CSA File No. LR44087|ECCN: EAR99|EN/IEC 60947-1|EN/IEC 60947-5-1|GOST-R Certified|Green Premium|IEC 60529|JIS C 4520|JIS C8201-5-1|REACH Compliant|UL 508|UL File No. E164353|WEEE Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS CompliantSKU #2242736Part Number #XB7ND25UNSPSC39122216UPC00785901198758
