Symc 460-200-SP

Brand: Littelfuse

Part Number: 460-200-SP

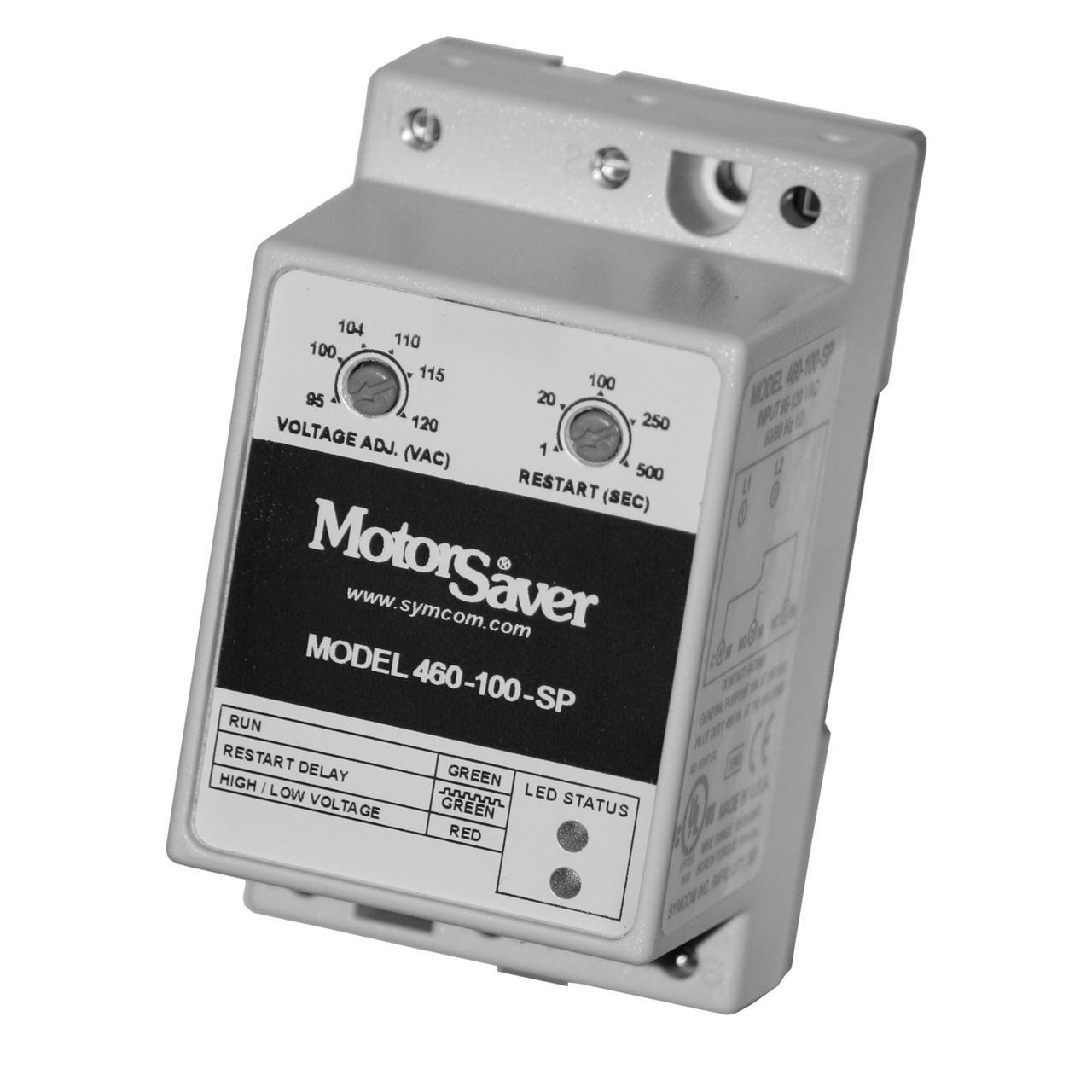

Littelfuse® MotorSaver® Voltage Monitoring Relay, 1-Phase, Series: 460-XXX-SP, 190 to 240 VAC, 50/60 Hz Frequency, SPDT 1 Form C Contact Configuration, DIN Rail/Surface Mounting, 4 s Trip Delay, NEMA 1/IP20 Enclosure, 2.084 in W x 2.35 in D x 3.5 in H Dimensions

Additional Description: LTFS-460-200-SP 1-PHASE VOLTAGE MONITOR/ 190-2

Catalog Description: The 460-100-SP is used on 95-120VAC, 50*/60Hz single-phase motors and the 190-240VAC, 50*/60Hz single-phase motors to protect them from damaging high and low voltage conditions. An adjustment knob allows the user to set a 1-500 second restart delay. The variable restart delay is also a power-up delay and can be utilized to stagger-start motors on the same system. A unique microcontroller-based, voltage-sensing circuit constantly monitors the voltage to detect harmful power line conditions. When a harmful condition is detected, the relay’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.
